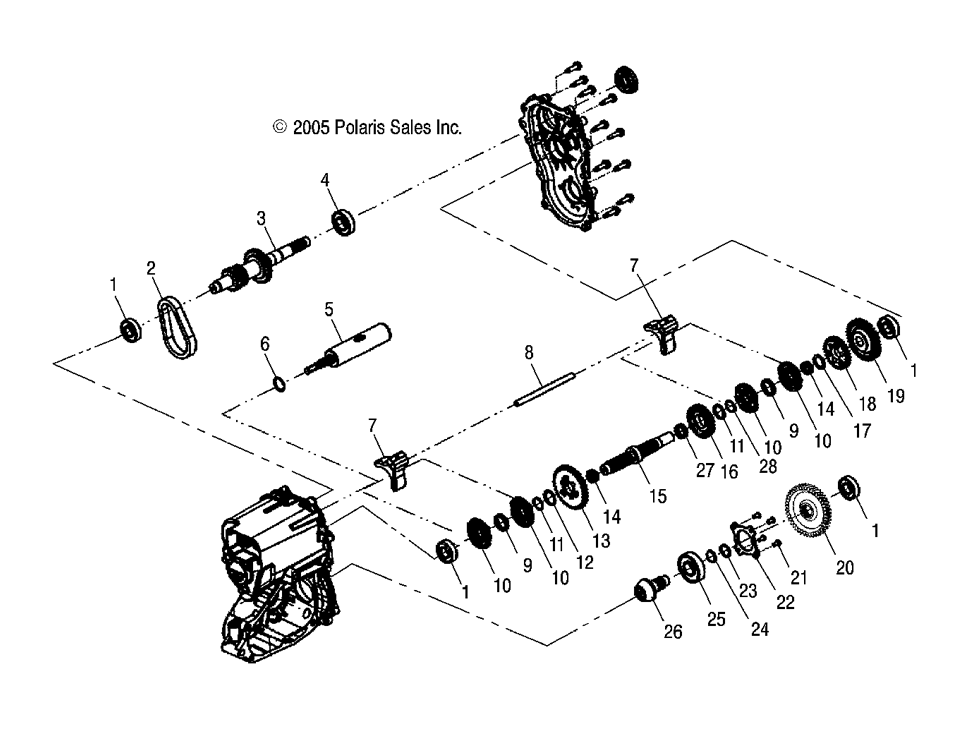

GEARCASE - INTERNAL COMPONENTS для Polaris RANGER 6X6 EFI 700 [R06RF68AA] - 2006 года выпуска
-
№АртикулНазвание
-
-1332307 ASM-GEARCASE,MAIN,700ASM-GEARCASE,MAIN,700
-
13233018 BEARINGBEARING
-
23233036 CHAIN,SILENT,34PCHAIN,SILENT,34P
-
33234133 SUB ASM-INPUT SHAFTSUB ASM-INPUT SHAFT
-
43233019 BEARINGBEARING
-
53234212 DRUM,SHIFT,SHAFTDRUM,SHIFT,SHAFT
-
63233840 O-RINGO-RING
-
73234220 SUBASSY-SHIFT FOR W/PARKSUBASSY-SHIFT FOR W/PARK
-
83233860 RAIL-SHIFT SHAFT,C VERSIONRAIL-SHIFT SHAFT,C VERSION
-
93234144 SPRING-WAVE 1.35 ID X .353SPRING-WAVE 1.35 ID X .353
-
103233875 DOG-ENGAGEMENT,6 FACEDOG-ENGAGEMENT,6 FACE
-
113233850 RING-RETAININGRING-RETAINING
-
123233851 WASHERWASHER
-
133233852 GEAR-33T,6 FACE ENGAGEMENTGEAR-33T,6 FACE ENGAGEMENT
-
143233718 BEARING,NDL,SPLIT CAGEBEARING,NDL,SPLIT CAGE
-
153233892 SHAFT-REVERSESHAFT-REVERSE
-
163233893 SPROCKET-24T,6 FACESPROCKET-24T,6 FACE
-
173233855 WASHERWASHER
-
183234135 GEAR-HELICAL,23T 6-FACEGEAR-HELICAL,23T 6-FACE
-
193234138 GEAR-HELICAL,MID OUTPUT,47TGEAR-HELICAL,MID OUTPUT,47T
-
203234139 GEAR-HELICAL,MID OUTPUT,60TGEAR-HELICAL,MID OUTPUT,60T
-
213234086 SCREW-TORX TRUSS HDSCREW-TORX TRUSS HD
-
223234122 COVER-BEARINGCOVER-BEARING
-
233233106 RING, SNAPRING, SNAP
-
243233357 SPACERSPACER
-
253234055 BEARING-BALL,6305RBEARING-BALL,6305R
-
263230001 SUBASM-LAPPED BEVEL,GEAR SET (INCL. REF. 4 FROM GEARCASE, OUTPUT SHAFT)SUBASM-LAPPED BEVEL,GEAR SET (INCL. REF. 4 FROM GEARCASE, OUTPUT SHAFT)
-
273233103 BEARING, NEEDLEBEARING, NEEDLE
-
283233894 WASHERWASHER
