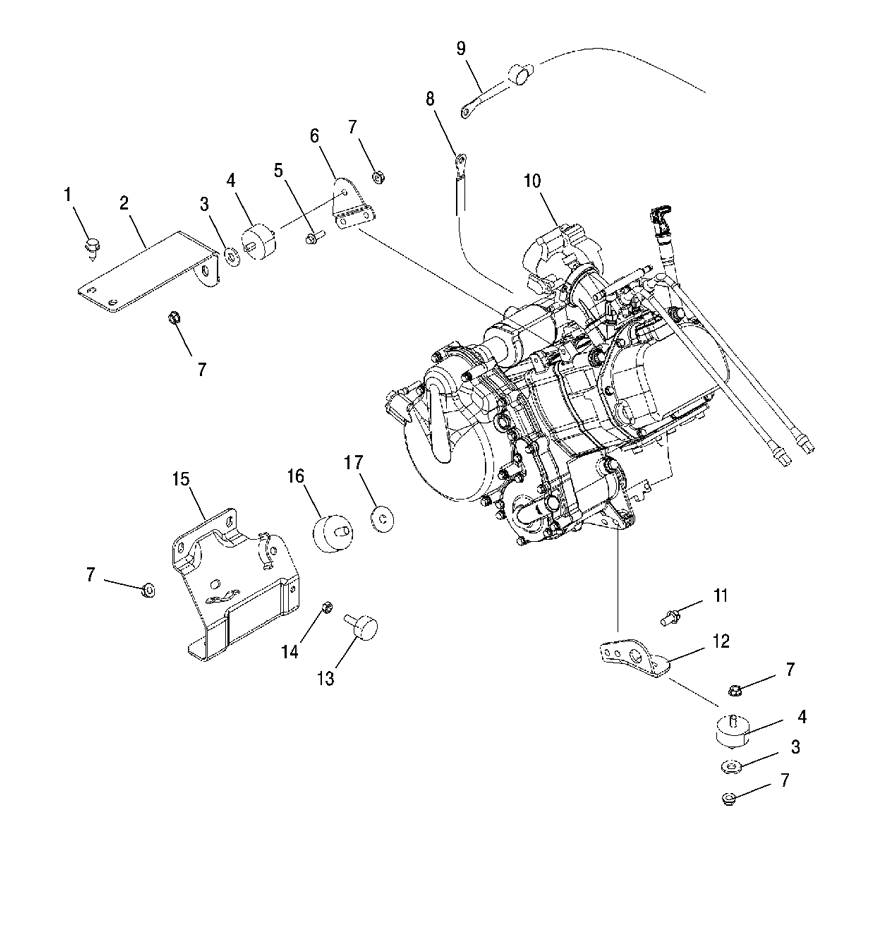

MOUNTING - ENGINE для Polaris RANGER 6X6 EFI 700 [R06RF68AA] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7515399 SCREW
    SCREW
  • 2
    5249454 BRKT-ENGINE MNT,TOP,6X6,700
    BRKT-ENGINE MNT,TOP,6X6,700
  • 3
    7555823 WASHER
    WASHER
  • 4
    3110044 ISOLATOR-3/8-24M/M,60DURO
    ISOLATOR-3/8-24M/M,60DURO
  • 5
    7516734 SCREW
    SCREW
  • 6
    5247368 BRKT-MNT,ENGINE,TOP PLTD
    BRKT-MNT,ENGINE,TOP PLTD
  • 7
    7547263 NUT-3/8-24 NYLOK
    NUT-3/8-24 NYLOK
  • 8
    4011214 CABLE-GROUND,78''/10''
    CABLE-GROUND,78''/10''
  • 9
    4011249 CABLE-SOL/STARTER
    CABLE-SOL/STARTER
  • 10
    2202921 KIT-SHORT BLOCK (SEE NOTE)
    KIT-SHORT BLOCK (SEE NOTE)
  • 11
    7518364 BOLT-3/8-16X7/8 HEX FLANGE GR5
    BOLT-3/8-16X7/8 HEX FLANGE GR5
  • 12
    5244771-067 MNT-ENGINE,LOWER,FRONT, BLACK
    MNT-ENGINE,LOWER,FRONT, BLACK
  • 13
    3021522 MOUNT-TORQUE STOP
    MOUNT-TORQUE STOP
  • 14
    7542301 NUT HEX
    NUT HEX
  • 15
    1015065-067 ENG/TRANS MNT, BLACK
    ENG/TRANS MNT, BLACK
  • 16
    3021119 ISOLATOR-3/8-24M,3/8-16M,60DUR
    ISOLATOR-3/8-24M,3/8-16M,60DUR
  • 17
    7555815 WASHER, FLAT
    WASHER, FLAT
