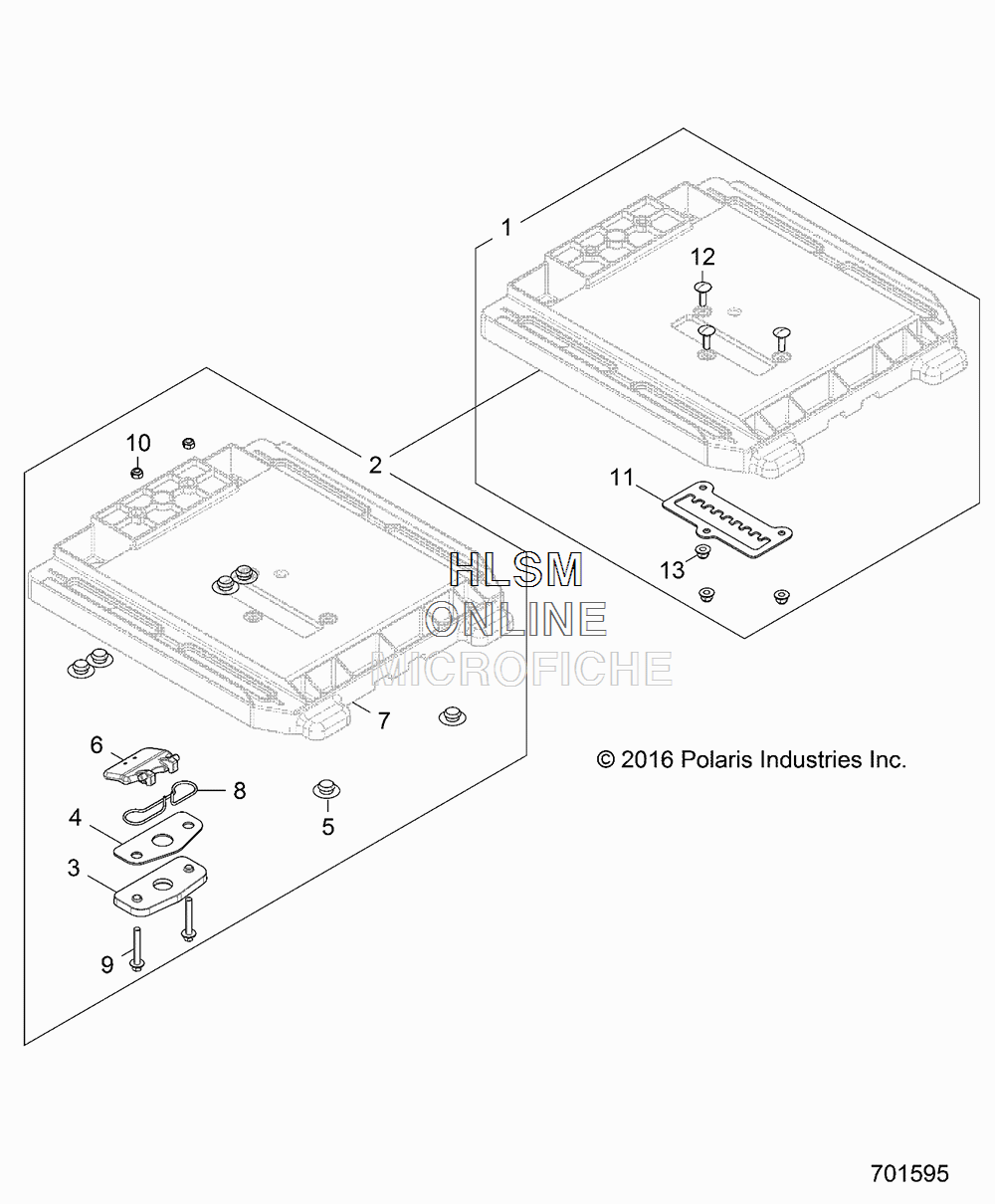

SEAT BASE для Polaris RZR XP TURBO TRACTOR [Z17VDS92CM] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2685704 ASM-BASE, SEAT SLIDER (INCL 2-13)
    ASM-BASE, SEAT SLIDER (INCL 2-13)
  • 2
    2634889 ASM-BASE, SEAT (INCL 3-10)
    ASM-BASE, SEAT (INCL 3-10)
  • 3
    5450510-070 LATCH-COVER PLATE, BLACK
    LATCH-COVER PLATE, BLACK
  • 4
    5258647 PLATE-LATCH, SEAT
    PLATE-LATCH, SEAT
  • 5
    5413441 GROMMET-SEAT BASE
    GROMMET-SEAT BASE
  • 6
    5437121 LEVER-LATCH, SEAT
    LEVER-LATCH, SEAT
  • 7
    5450170 SEAT-BASE
    SEAT-BASE
  • 8
    7081466 SPRING-LATCH, SEAT
    SPRING-LATCH, SEAT
  • 9
    7517610 SCR-M6X1.00X40-HX/FL-YD
    SCR-M6X1.00X40-HX/FL-YD
  • 10
    7546703 NUT-6MM X 1 NYLOK-Z
    NUT-6MM X 1 NYLOK-Z
  • 11
    5257975 BRKT-SEAT SLIDER ADJ PLATE
    BRKT-SEAT SLIDER ADJ PLATE
  • 12
    7518994 SCR-RIGHT HANDCARM6X1.0X20 8.8 ZOD
    SCR-RIGHT HANDCARM6X1.0X20 8.8 ZOD
  • 13
    7547339 NUT-M6X1.0, FLG-NYLOC-OLIVE D
    NUT-M6X1.0, FLG-NYLOC-OLIVE D
