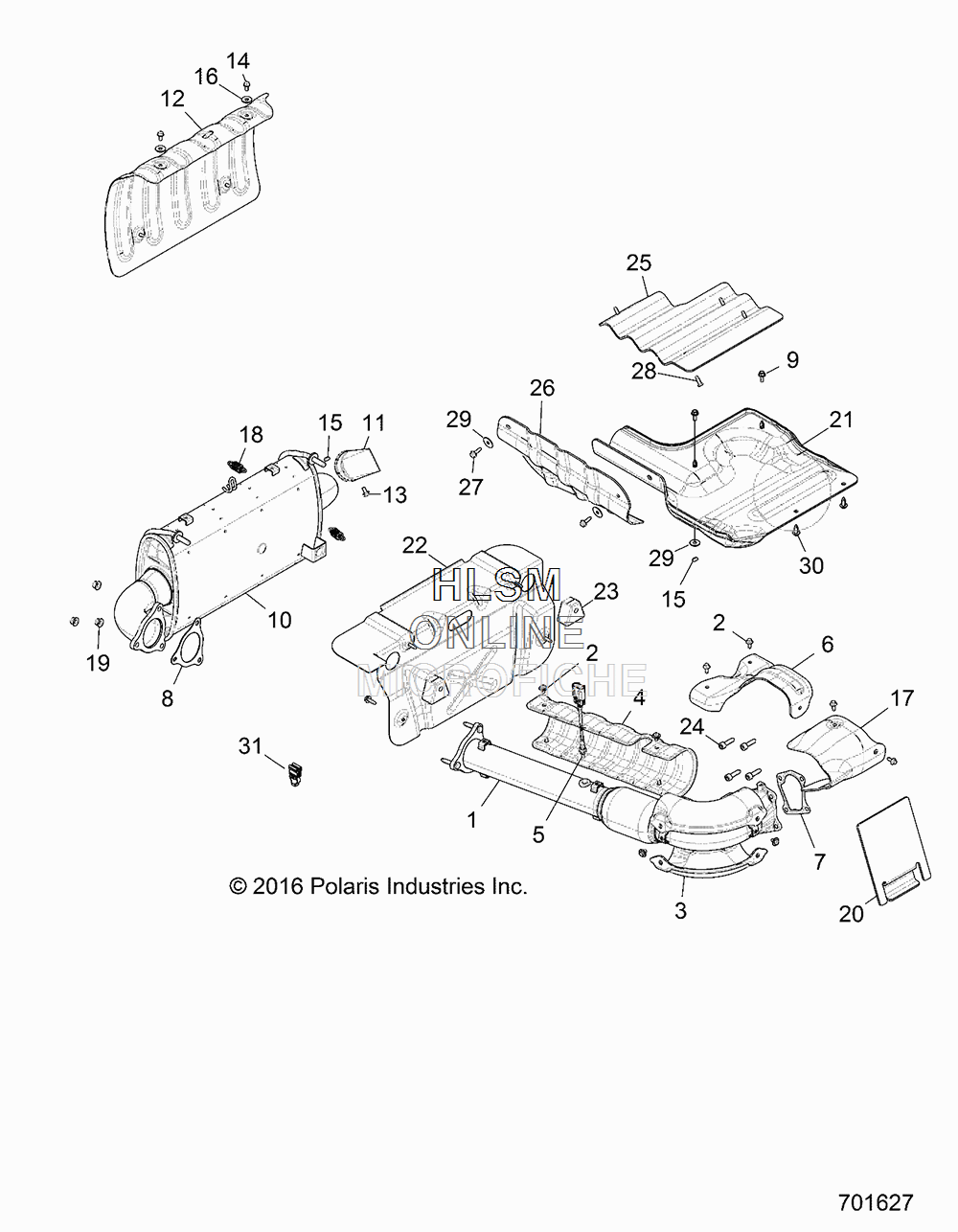

EXHAUST для Polaris RZR XP TURBO TRACTOR [Z17VDS92CM] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1262909 ASM-HEADPIPE, TURBO (INCL QTY 8 OF 2, 3, 4)
    ASM-HEADPIPE, TURBO (INCL QTY 8 OF 2, 3, 4)
  • 2
    7520291 SCR-HHSEMS-M6X1.0X10 A286, LOCK
    SCR-HHSEMS-M6X1.0X10 A286, LOCK
  • 3
    5263097 SHIELD-HEAT, HEADPIPE, FRONT
    SHIELD-HEAT, HEADPIPE, FRONT
  • 4
    5260457 SHIELD-HEAT, HEADPIPE, RR, INNER
    SHIELD-HEAT, HEADPIPE, RR, INNER
  • 5
    4016021 SENSOR-OXYGEN
    SENSOR-OXYGEN
  • 6
    5260459 SHIELD-HEAT, TURBO, UPPER
    SHIELD-HEAT, TURBO, UPPER
  • 7
    5812640 GASKET-EXHAUST
    GASKET-EXHAUST
  • 8
    5814340 GASKET-EXHAUST, 3 BOLT
    GASKET-EXHAUST, 3 BOLT
  • 9
    7518591 SCR-HXFL-M6X1.0X16 8.8 ZPB
    SCR-HXFL-M6X1.0X16 8.8 ZPB
  • 10
    1262655 ASM-SILENCER (INCL 11-14, QTY 1 OF 15, 16)
    ASM-SILENCER (INCL 11-14, QTY 1 OF 15, 16)
  • 11
    1262390 WELD-SPARK ARRESTOR
    WELD-SPARK ARRESTOR
  • 12
    5262943 SHIELD-SILENCER
    SHIELD-SILENCER
  • 13
    7517257 SCR-HXFL-M6X1.0X12 10.9 ZPC
    SCR-HXFL-M6X1.0X12 10.9 ZPC
  • 14
    7518490 SCR-1/4-20X1/2, TFM HW-M
    SCR-1/4-20X1/2, TFM HW-M
  • 15
    7547120 NUT-HEXHD, M6, DIN980V, 0600100
    NUT-HEXHD, M6, DIN980V, 0600100
  • 16
    7555935 WASHER-.28 X .81 X .06, ST-M
    WASHER-.28 X .81 X .06, ST-M
  • 17
    5260461 SHIELD-HEAT, TURBO, OUTLET
    SHIELD-HEAT, TURBO, OUTLET
  • 18
    7041789 SPRING-EXHAUST
    SPRING-EXHAUST
  • 19
    7547803 NUT-HXFL-M8X1.25 A493 EM6340
    NUT-HXFL-M8X1.25 A493 EM6340
  • 20
    5814082 SHIELD-ACCESS PANEL
    SHIELD-ACCESS PANEL
  • 21
    5814245 SHIELD-BOX, FRONT
    SHIELD-BOX, FRONT
  • 22
    5263026 SHIELD-REAR, AL
    SHIELD-REAR, AL
  • 23
    5450115 MNT-ISOLATOR
    MNT-ISOLATOR
  • 24
    7520277 SCR-SH-M8X1.25X25 A286, LOCK
    SCR-SH-M8X1.25X25 A286, LOCK
  • 25
    5262942 SHIELD-FOIL, ACCESS PANEL
    SHIELD-FOIL, ACCESS PANEL
  • 26
    5814284 SHIELD-ENGINE
    SHIELD-ENGINE
  • 27
    7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BL
    SCR-M6X1.0X20, HXHD, FLG, TDFM, BL
  • 28
    7519045 SCR-TX TRUSS-#14X3/4, HI/LO ZBK
    SCR-TX TRUSS-#14X3/4, HI/LO ZBK
  • 29
    7556329 WASHER-.281X1.00X.051
    WASHER-.281X1.00X.051
  • 30
    7661855 RIVET-TUFLOK, .315-.325X.787
    RIVET-TUFLOK, .315-.325X.787
  • 31
    7081808 STRAP-CABLE TIE W/EDGE CLIP
    STRAP-CABLE TIE W/EDGE CLIP
