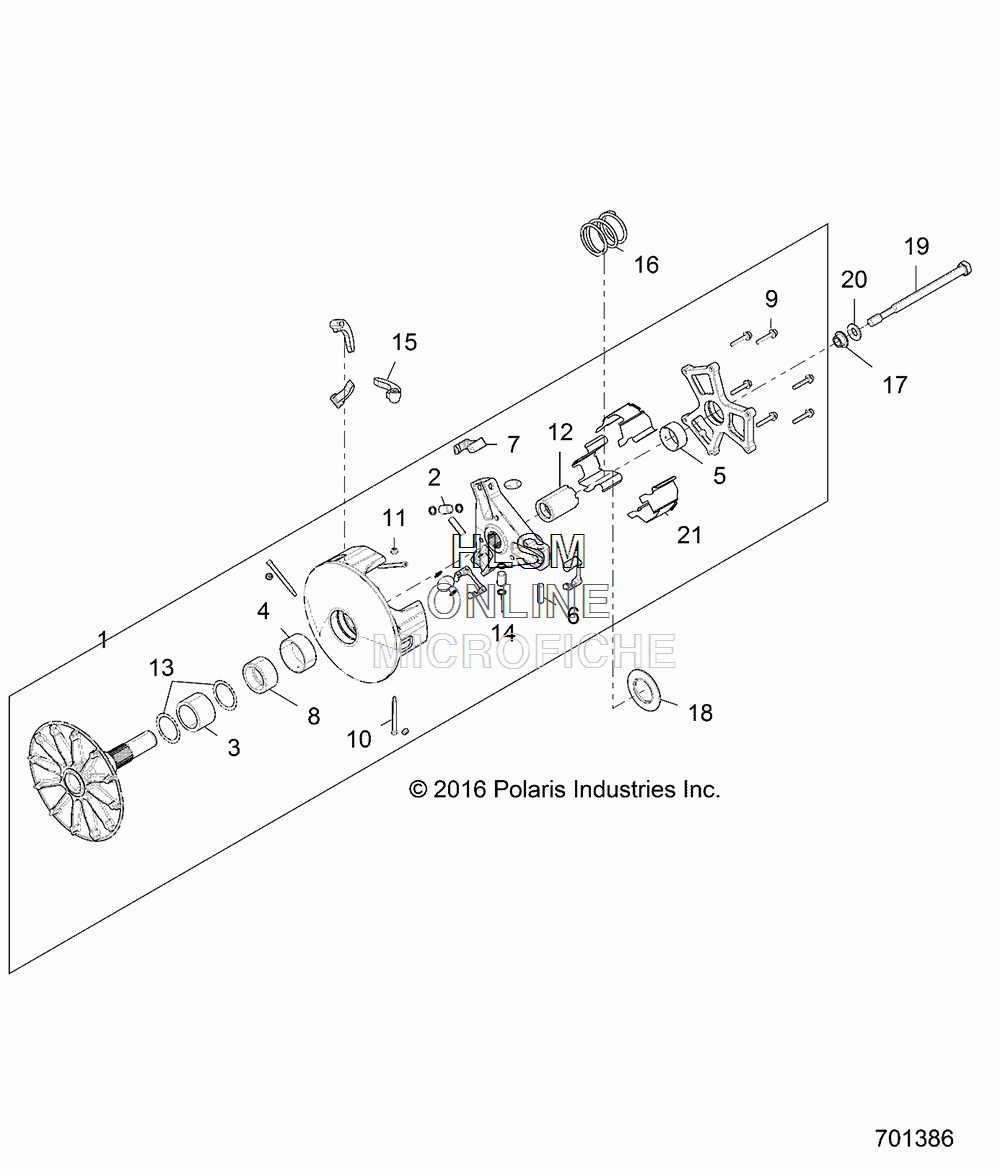

CLUTCH- PRIMARY для Polaris RZR XP TURBO TRACTOR [Z17VDS92CM] - 2017 года выпуска`
-
№АртикулНазвание
-
11323453 ASM-DRIVE CLUTCH, BASIC (INCL 2-14, 21)ASM-DRIVE CLUTCH, BASIC (INCL 2-14, 21)
-
21323229 ASM-ROLLER W/BUSHINGASM-ROLLER W/BUSHING
-
33514890 BEARING-NEEDLEBEARING-NEEDLE
-
43514891 BEARING-MOV, HDBEARING-MOV, HD
-
53514892 BUSHING-COVER, HDBUSHING-COVER, HD
-
65139559 PIN-ROLLER, SPIDER, HDPIN-ROLLER, SPIDER, HD
-
75451564 SLIDER-DRIVE, HDSLIDER-DRIVE, HD
-
85633565 SPACER-CLUTCH, HDSPACER-CLUTCH, HD
-
97518612 BOLT-M6X1.0X35, HXFLG/SH-OLV DBOLT-M6X1.0X35, HXFLG/SH-OLV D
-
107520103 BOLT-SHIFT WEIGHTBOLT-SHIFT WEIGHT
-
117541906 NUT-10-24-FLEX LOC-ZNUT-10-24-FLEX LOC-Z
-
127547744 NUT-SPIDER, HDNUT-SPIDER, HD
-
137556893 WASHER-CLUTCHWASHER-CLUTCH
-
147556938 WASHER-THRUSTWASHER-THRUST
-
155140832 WEIGHT-SHIFT, W-31-70, PMWEIGHT-SHIFT, W-31-70, PM
-
167044762 SPRING-DRIVE, HD, 63-140SPRING-DRIVE, HD, 63-140
-
175132441 WASHER-CLUTCH RET, M14WASHER-CLUTCH RET, M14
-
185453069 SPACER-CLUTCH, LIMITERSPACER-CLUTCH, LIMITER
-
197518412 SCR-M14X1.5X215, HX, 10.9, Y35, RSCR-M14X1.5X215, HX, 10.9, Y35, R
-
207556003 WASHER-BLVL, .567X1.125X.118-YWASHER-BLVL, .567X1.125X.118-Y
-
215263528 PLATE-SLIDER, DRIVE, HDPLATE-SLIDER, DRIVE, HD
