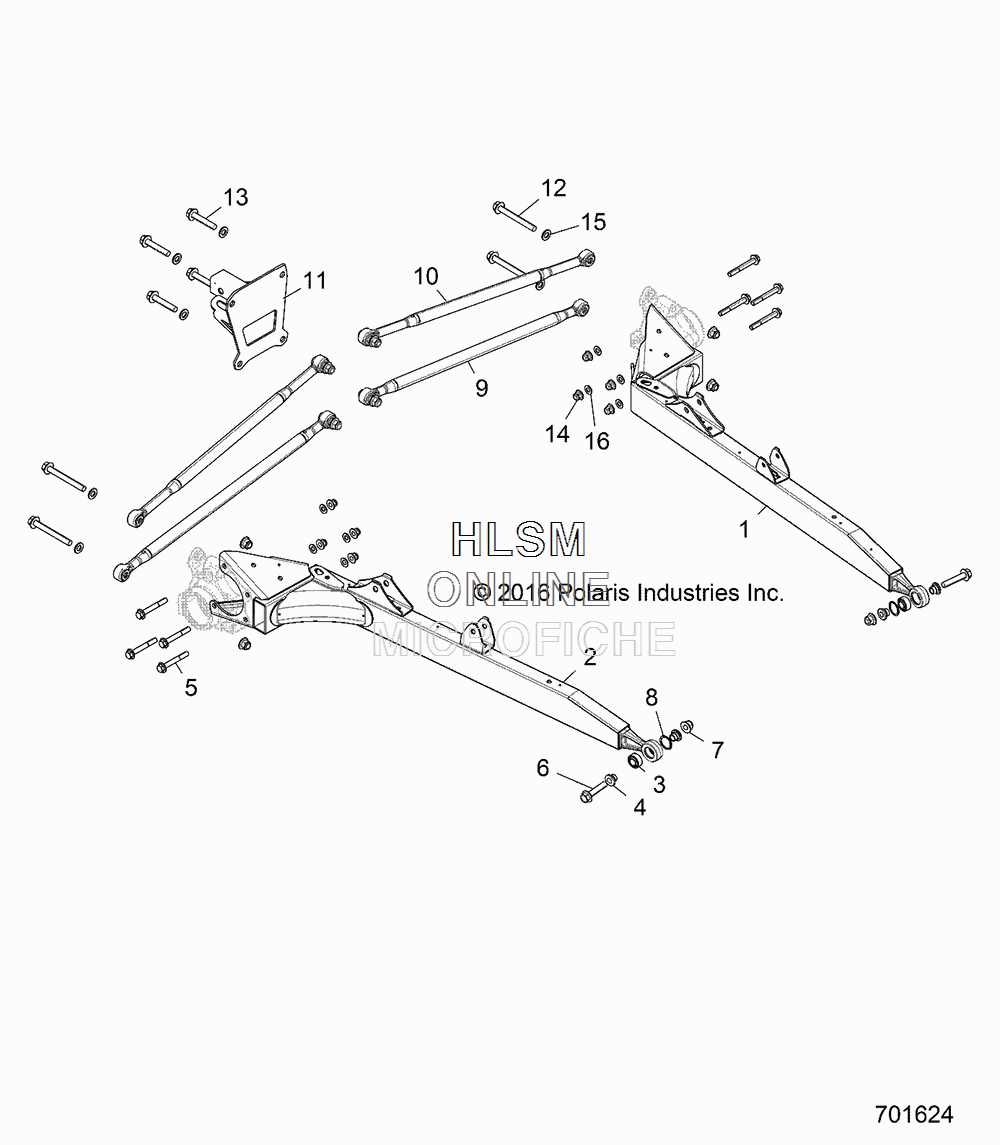

REAR CONTROL ARMS для Polaris RZR XP TURBO TRACTOR [Z17VDS92CM] - 2017 года выпуска
-
№АртикулНазвание
-
11019356-385 WELD-TRL ARM, LEFT HAND, CL SLVWELD-TRL ARM, LEFT HAND, CL SLV
-
21019357-385 WELD-TRL ARM, RIGHT HAND, CL SLVWELD-TRL ARM, RIGHT HAND, CL SLV
-
33514689 BEARING, SPHERICALBEARING, SPHERICAL
-
45336751 BUSHING, REDUCER, 12MMBUSHING, REDUCER, 12MM
-
57519286 SCREWSCREW
-
67519138 SCREWSCREW
-
77547334 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
87710437 RING, RETAINERRING, RETAINER
-
91543805-385 ASM-RADIUS ROD, BTM, CL SLVASM-RADIUS ROD, BTM, CL SLV
-
101543744-385 ASM-RADIUS ROD, C.SLVASM-RADIUS ROD, C.SLV
-
111022978-458 WELD PLATE-RR, HITCH, BLACKWELD PLATE-RR, HITCH, BLACK
-
127520479 SCREWSCREW
-
137520477 SCR-HXFL-M12X1.5X65 10.9 ZODSCR-HXFL-M12X1.5X65 10.9 ZOD
-
147547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
157556287 WASHERWASHER
-
167556153 WASHER-3/8 FW SAE STL THRU-HRDWASHER-3/8 FW SAE STL THRU-HRD
