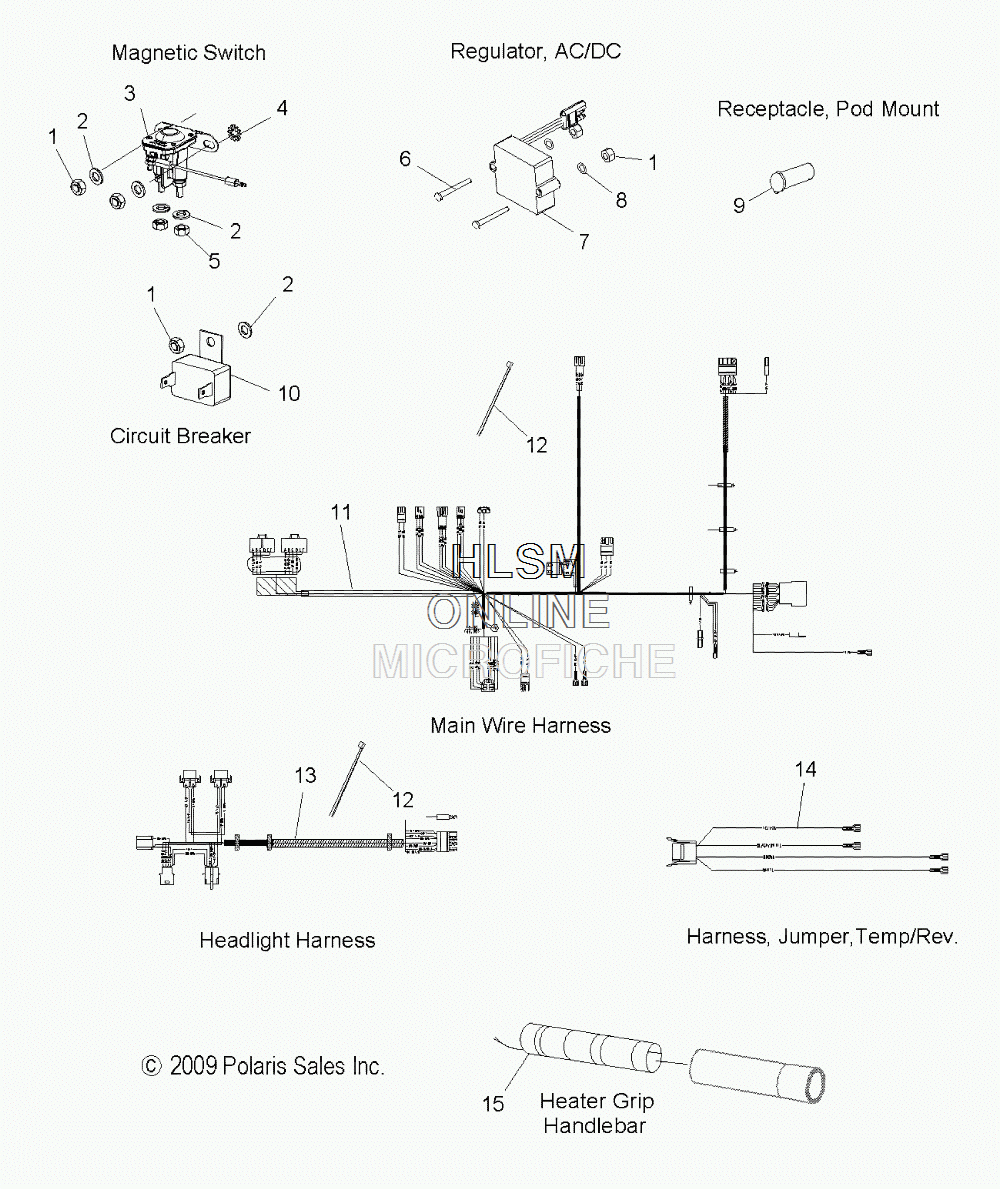

WIRE HARNESS W/COMPONENTS для Polaris WIDETRAK LX INTL [S15SU4BEL] - 2015 года выпуска
-
№АртикулНазвание
-
17541925 NUT, NYLOKNUT, NYLOK
-
27558201 WASHER, FLATWASHER, FLAT
-
34011335 SWITCH, MAGNETICSWITCH, MAGNETIC
-
47571602 WASHER, LOCKWASHER, LOCK
-
57542105 NUT, HEXNUT, HEX
-
67518708 SCREWSCREW
-
74010794 REGULATOR, AC/DC, 14.3 VREGULATOR, AC/DC, 14.3 V
-
87555746 WASHERWASHER
-
94010638 RECEPTACLE, POD MOUNTRECEPTACLE, POD MOUNT
-
102434008 BREAKER, CIRCUITBREAKER, CIRCUIT
-
112410824 HARNESS, MAIN WIREHARNESS, MAIN WIRE
-
127080138 CABLE TIECABLE TIE
-
132460909 HARNESS, HEADLIGHTHARNESS, HEADLIGHT
-
135811765 FOIL, TAPEFOIL, TAPE
-
142460877 HARNESS, JUMPER, TEMP/REVHARNESS, JUMPER, TEMP/REV
-
152410778 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
Все узлы модели:
- AIR INTAKE SYSTEM
- BACKREST ASSEMBLY
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR W/CHOKE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- FUEL TANK W/FUEL LINES
- GEARCASE ASSEMBLY (1 OF 2)
- GEARCASE ASSEMBLY (2 OF 2)
- GEARCASE MOUNTING
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ WINDSHIELD
- HOOD W/HINGE AND BRACE ASSEMBLY
- JACKSHAFT ASSEMBLY
- NOSEPAN W/FOIL ASSEMBLY
- NOSEPAN/BUMPER
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- RACK ASSEMBLY W/SNOWFLAP
- SEAT ASSEMBLY
- SEAT RISER
- SHIFT LINKAGE ASSEMBLY 4X6
- SKI ASSEMBLY
- SPEEDOMETER W/INDICATOR LIGHTS
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR ASSEMBLY
- STEERING - LOWER
- SUSPENSION - COUPLER LINK
- SUSPENSION - EXTENSION
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- TOOL KIT W/OWNERS MANUAL
- TORQUE ARM - REAR W/ PIVOT ARM
- TUNNEL ASSEMBLY
- WATER PUMP
- • WIRE HARNESS W/COMPONENTS
