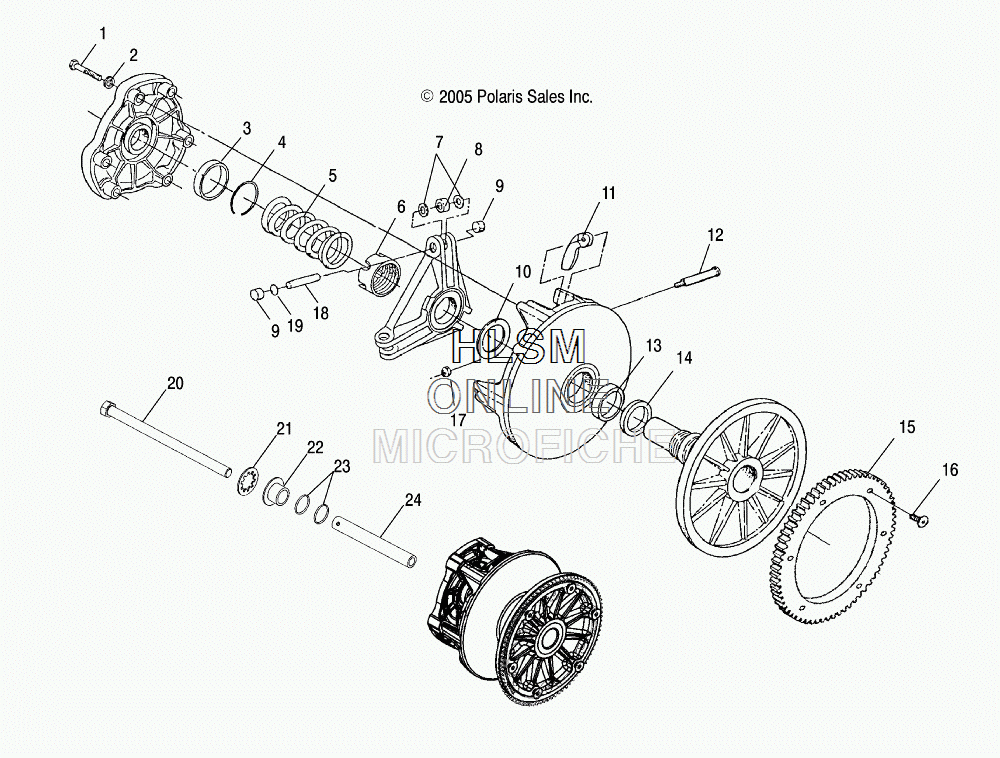

CLUTCH - PRIMARY для Polaris WIDETRAK LX INTL [S15SU4BEL] - 2015 года выпуска

  • №
    Артикул
    Название
  • --
    2200386 KIT, CLUTCH UPDATE (INCL. 7-9,12,18,19)
    KIT, CLUTCH UPDATE (INCL. 7-9,12,18,19)
  • --
    1322838 ASM., DRIVE CLUTCH, BASIC ES (INCL. 1,2,4,6-8,12-18)
    ASM., DRIVE CLUTCH, BASIC ES (INCL. 1,2,4,6-8,12-18)
  • 1
    7518349 SCREW
    SCREW
  • 2
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 3
    3576516 BEARING, COVER
    BEARING, COVER
  • 4
    7710417 RING, RETAINING, COVER
    RING, RETAINING, COVER
  • 5
    7043121 SPRING, DRIVE CLUTCH, 100/340
    SPRING, DRIVE CLUTCH, 100/340
  • 6
    5020425 NUT, JAM
    NUT, JAM
  • 7
    5430945 WASHER, MULTILUBE
    WASHER, MULTILUBE
  • 8
    1321622 ASM., ROLLER AND BUSHING
    ASM., ROLLER AND BUSHING
  • 9
    5430445 BUTTON, GUIDE
    BUTTON, GUIDE
  • 10
    5210754 SPACER, .050
    SPACER, .050
  • 10
    5210753 SPACER, .032
    SPACER, .032
  • 10
    5242981 SPACER, .025
    SPACER, .025
  • 10
    5210752 SPACER, .020
    SPACER, .020
  • 11
    1321586 ASM., WEIGHT/BUSHING, 10-62
    ASM., WEIGHT/BUSHING, 10-62
  • 12
    7515105 PIN, WEIGHT
    PIN, WEIGHT
  • 13
    3514641 BEARING, SLEEVE
    BEARING, SLEEVE
  • 14
    5010188 INSERT, MOVEABLE
    INSERT, MOVEABLE
  • 15
    2877485 KIT, RING GEAR, LIGHTWEIGHT
    KIT, RING GEAR, LIGHTWEIGHT
  • 16
    7515351 SCREW
    SCREW
  • 17
    7541906 NUT, FLEXLOC
    NUT, FLEXLOC
  • 18
    5133079 PIN, ROLLER
    PIN, ROLLER
  • 19
    2200387 KIT, DRIVE CLUTCH SHIM
    KIT, DRIVE CLUTCH SHIM
  • 20
    7512565 SCREW
    SCREW
  • 21
    7575202 WASHER, LOCK
    WASHER, LOCK
  • 22
    5010287 WASHER, CLUTCH RETAINER
    WASHER, CLUTCH RETAINER
  • 23
    5410507 O-RING, CLUTCH BOLT
    O-RING, CLUTCH BOLT
  • 24
    5020513 SPACER, CLUTCH BOLT
    SPACER, CLUTCH BOLT
