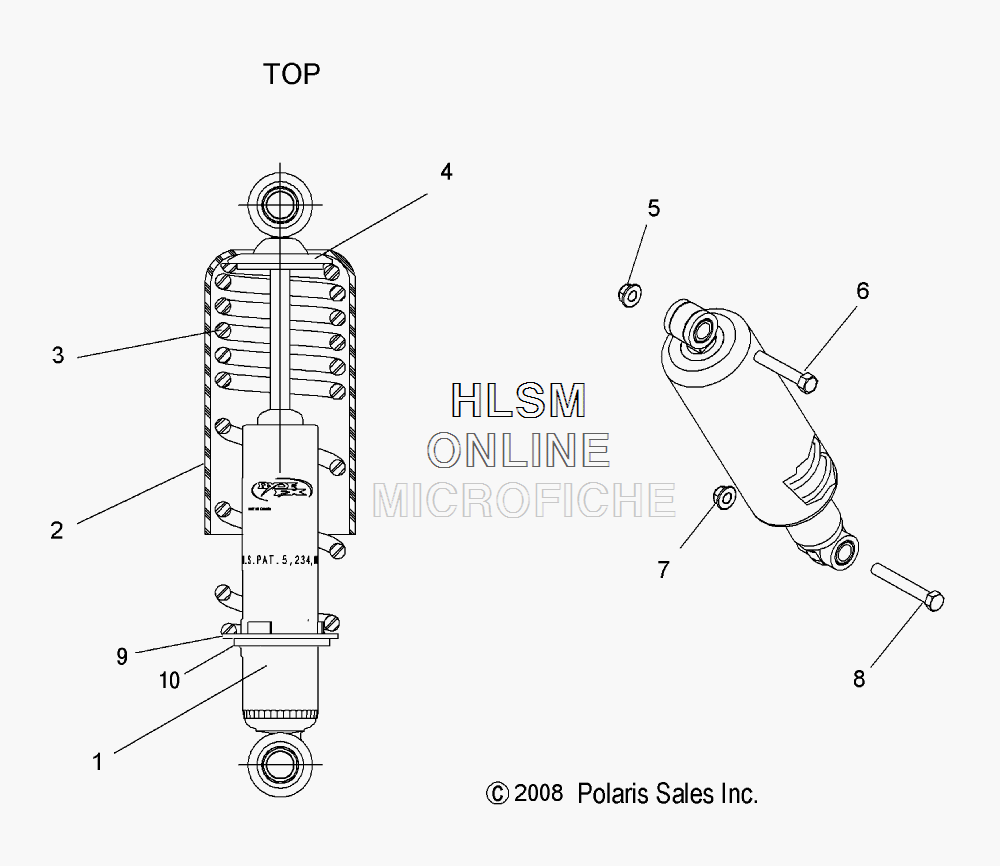

SUSPENSION - FRONT SHOCK TRACK для Polaris WIDETRAK LX INTL [S15SU4BEL] - 2015 года выпуска
-
№АртикулНазвание
-
17041742 SHOCK, SUSPENSION, CENTERSHOCK, SUSPENSION, CENTER
-
25430671 SHIELD, SPRINGSHIELD, SPRING
-
37041712-067 SPRING, FRONT TRACK, BLACKSPRING, FRONT TRACK, BLACK
-
45630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
57542411 NUT, FLEXLOCNUT, FLEXLOC
-
67517507 BOLTBOLT
-
77542459 NUT, FLANGENUT, FLANGE
-
87515433 SCREWSCREW
-
95245067 RETAINER, SPRINGRETAINER, SPRING
-
105210953 RETAINER, SPRINGRETAINER, SPRING
