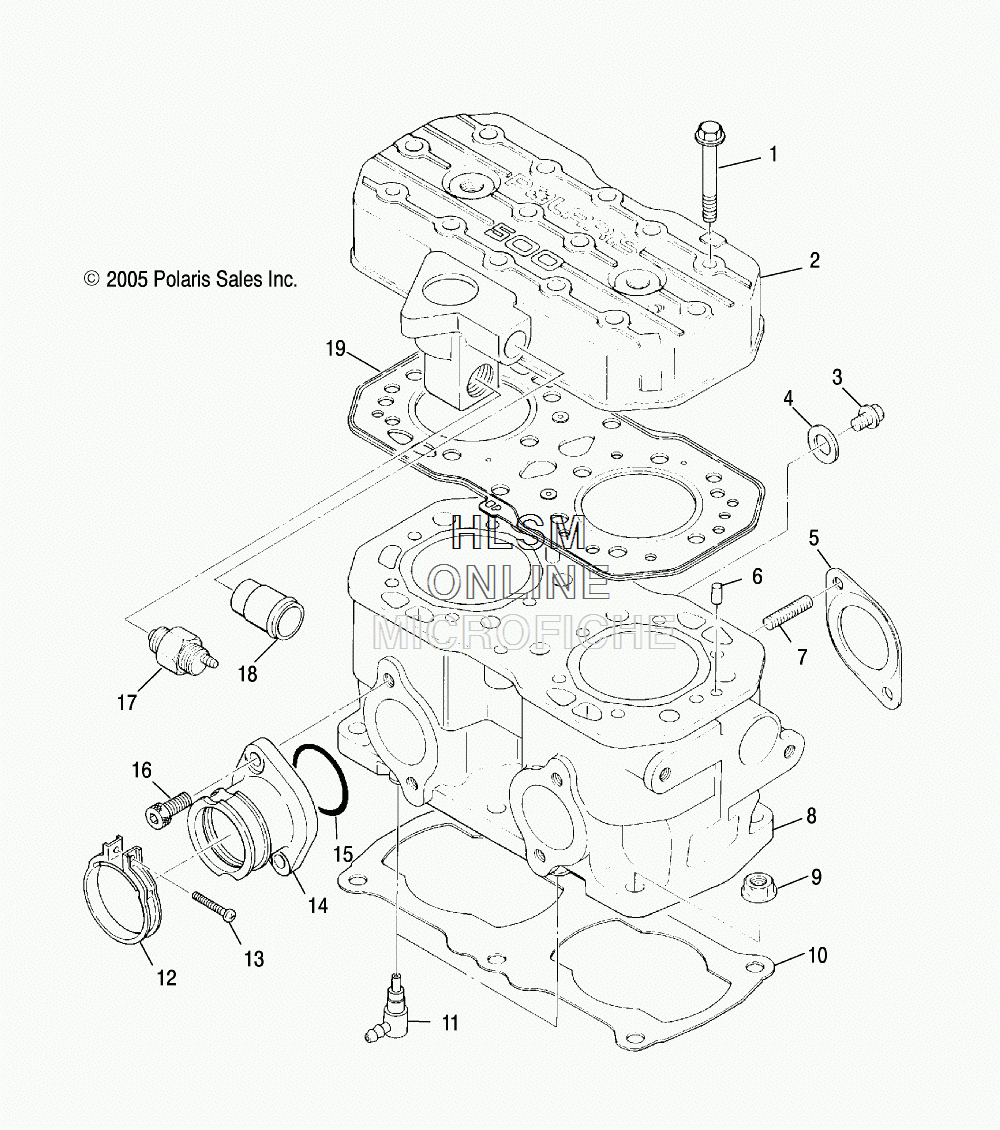

CYLINDER ASSEMBLY для Polaris WIDETRAK LX INTL [S15SU4BEL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3085582 BOLT, FLANGE
    BOLT, FLANGE
  • 2
    3085584 ASM., HEAD, CYLINDER (INCL. 18)
    ASM., HEAD, CYLINDER (INCL. 18)
  • 3
    3084491 PLUG
    PLUG
  • 4
    3084492 GASKET, ALUMINUM
    GASKET, ALUMINUM
  • 5
    3086995 ASM., GASKET, EXHAUST
    ASM., GASKET, EXHAUST
  • 6
    3086838 PIN, DOWEL
    PIN, DOWEL
  • 7
    3085326 STUD
    STUD
  • 8
    3085583 ASM., CYLINDER (INCL. 7)
    ASM., CYLINDER (INCL. 7)
  • 9
    3082911 NUT, FLANGE
    NUT, FLANGE
  • 10
    3084768 GASKET, CYLINDER
    GASKET, CYLINDER
  • 11
    3086785 ASM., VALVE, CHECK
    ASM., VALVE, CHECK
  • 12
    3090180 ASM., BAND, ADAPTOR (INCL. 13)
    ASM., BAND, ADAPTOR (INCL. 13)
  • 13
    3081497 SCREW, PAN HEAD
    SCREW, PAN HEAD
  • 14
    3085044 ASM., ADAPTOR (INCL. 15)
    ASM., ADAPTOR (INCL. 15)
  • 15
    3085619 O-RING
    O-RING
  • 16
    3081330 BOLT, SOCKET HEAD
    BOLT, SOCKET HEAD
  • 17
    3084284 ASM., SWITCH, THERMO (105 DEGREE C)
    ASM., SWITCH, THERMO (105 DEGREE C)
  • 18
    3083452 ASM., PIPE, WATER
    ASM., PIPE, WATER
  • 19
    3085585 ASM., GASKET 2, HEAD
    ASM., GASKET 2, HEAD
