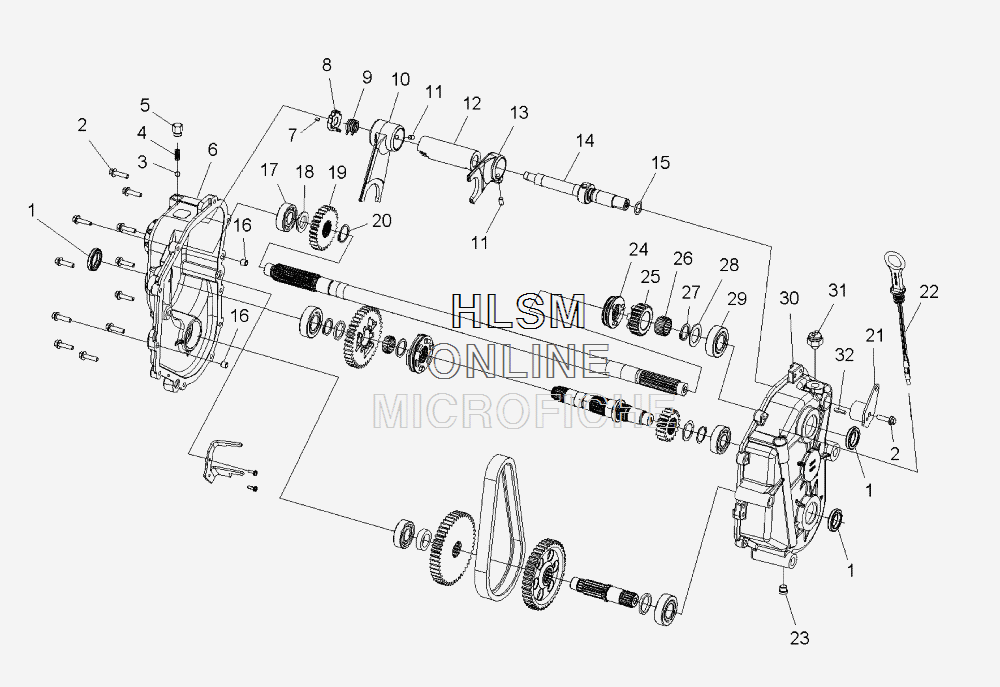

DRIVE TRAIN- GEARCASE (1 OF 2) для Polaris 600 WIDETRAK IQ INTERNATIONAL (2010) [S10PU6KEL] - 2010 года выпуска`
-
№АртикулНазвание
-
251332776 ASM., GEARCASE, PERC (INCL. 1-32 AND ALL FROM DRIVE TRAIN, GEARCASE (2 OF 2))ASM., GEARCASE, PERC (INCL. 1-32 AND ALL FROM DRIVE TRAIN, GEARCASE (2 OF 2))
-
13610134 SEAL, DUAL LIPSEAL, DUAL LIP
-
27518785 SCREWSCREW
-
37080310 BALL, DETENTBALL, DETENT
-
47041483 SPRING, DETENT, SHIFTERSPRING, DETENT, SHIFTER
-
55135953 EXTENSION, DETENTEXTENSION, DETENT
-
63234474 GEARCASE, RIGHT HANDGEARCASE, RIGHT HAND
-
77710608 KEY-1/8X1/4KEY-1/8X1/4
-
83234121 INDEX, SHIFTINDEX, SHIFT
-
97043326 SPRING, TORSIONSPRING, TORSION
-
103233503 FORK, SHIFT, LOWFORK, SHIFT, LOW
-
117661957 PIN, DOWELPIN, DOWEL
-
123234120 DRUM, SHIFTDRUM, SHIFT
-
133233505 FORK, SHIFT , HIGHFORK, SHIFT , HIGH
-
145136984 SHAFT, SHIFT, LOW MAPSHAFT, SHIFT, LOW MAP
-
155410440 O-RINGO-RING
-
165135952 PIPE, KNOCKPIPE, KNOCK
-
173514594 BEARING, BALLBEARING, BALL
-
185135971 SPACERSPACER
-
193233419 GEAR, 27TGEAR, 27T
-
207710607 RING, RETAININGRING, RETAINING
-
211016010 BELLCRANKBELLCRANK
-
225438124 STICK, OIL LEVEL INDICATORSTICK, OIL LEVEL INDICATOR
-
225410675 O-RINGO-RING
-
237052472 PLUGPLUG
-
243233470 DOG, ENGAGEMENT, HIGH (NOTE: MUST ORDER WITH REF. 25)DOG, ENGAGEMENT, HIGH (NOTE: MUST ORDER WITH REF. 25)
-
253233509 SPROCKET, 19T (NOTE: MUST ORDER WITH REF. 24)SPROCKET, 19T (NOTE: MUST ORDER WITH REF. 24)
-
263514591 BEARING, NEEDLE CAGE 25X31X17BEARING, NEEDLE CAGE 25X31X17
-
277710602 RING, RETAINERRING, RETAINER
-
287556431 WASHER, THRUSTWASHER, THRUST
-
293514304 BEARING,205,W/O SEAL #6205BEARING,205,W/O SEAL #6205
-
303234174 GEARCASE, LEFT HANDGEARCASE, LEFT HAND
-
314110062 SWITCH, INDICATORSWITCH, INDICATOR
-
327710609 KEY-3/16X3/4KEY-3/16X3/4
