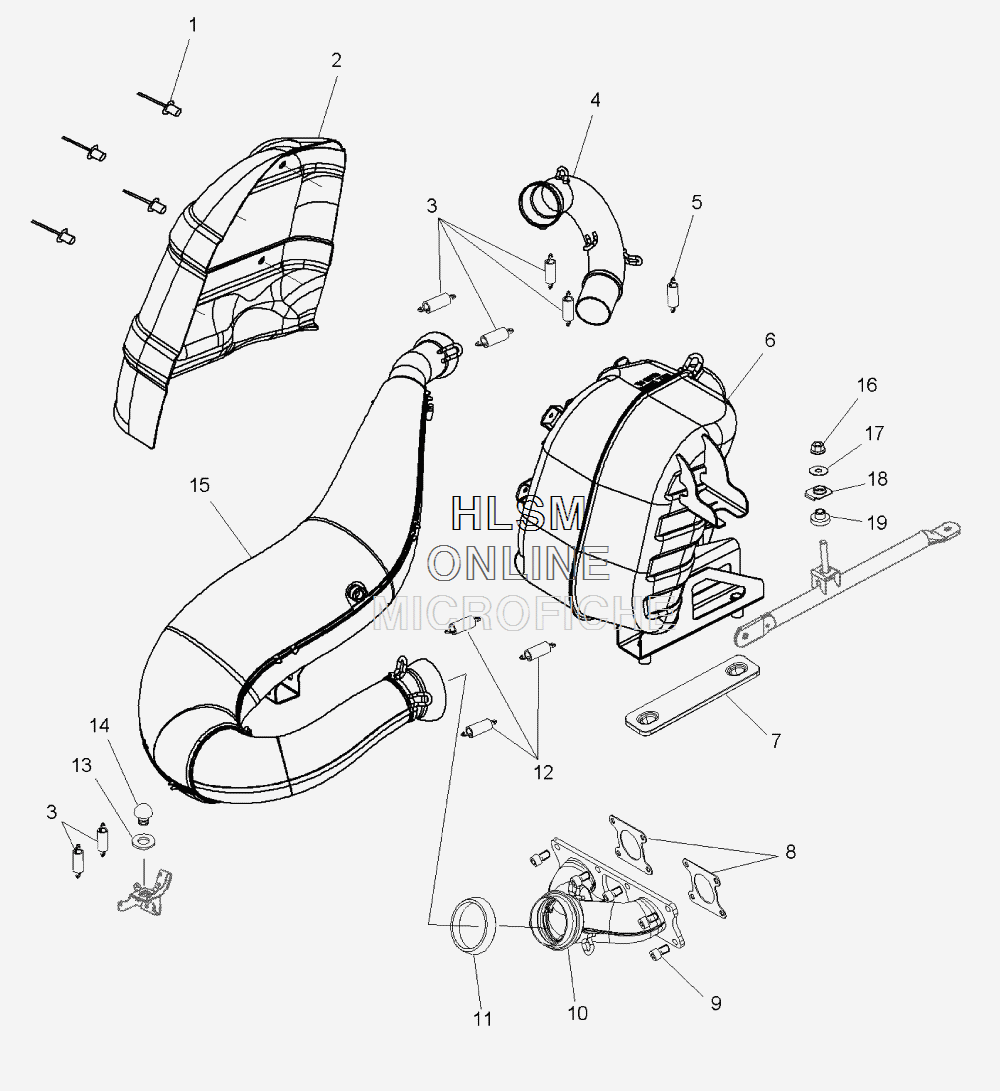

EXHAUST для Polaris 600 WIDETRAK IQ INTERNATIONAL (2010) [S10PU6KEL] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7661084 RIVET
    RIVET
  • 2
    5252101 SHIELD, HEAT RESONATOR
    SHIELD, HEAT RESONATOR
  • 3
    7041687 SPRING, EXHAUST
    SPRING, EXHAUST
  • 4
    1262076-029 STINGER, U-TUBE (BLACK)
    STINGER, U-TUBE (BLACK)
  • 5
    7042029 SPRING, EXHAUST
    SPRING, EXHAUST
  • 6
    1262058 ASM., RESONATOR (INCL. 1,2)
    ASM., RESONATOR (INCL. 1,2)
  • 7
    5413565 GROMMET, RESONATOR/CHASSIS
    GROMMET, RESONATOR/CHASSIS
  • 8
    5813025 GASKET-EXHAUST, 4BOLT
    GASKET-EXHAUST, 4BOLT
  • 9
    7517322 SCREW
    SCREW
  • 10
    1261638-029 MANIFOLD (BLACK)
    MANIFOLD (BLACK)
  • 11
    3610046 SEAL, EXHAUST, SOCKET
    SEAL, EXHAUST, SOCKET
  • 12
    7042332 SPRING, EXHAUST, SS
    SPRING, EXHAUST, SS
  • 13
    7556004 WASHER
    WASHER
  • 14
    5411576 DAMPENER, VIBRATION W/RIBS
    DAMPENER, VIBRATION W/RIBS
  • 15
    1262077 ASM., TUNED PIPE
    ASM., TUNED PIPE
  • 15
    7080748 CLAMP, WORM DRIVE, .44 X 2.88
    CLAMP, WORM DRIVE, .44 X 2.88
  • 15
    7080750 CLAMP, WORM DRIVE, .44 X 5.06
    CLAMP, WORM DRIVE, .44 X 5.06
  • 15
    7081643 CLAMP, WORM DRIVE, .44 X 6.50
    CLAMP, WORM DRIVE, .44 X 6.50
  • 15
    7081637 CLAMP, WORM DRIVE, .44 X 5.63
    CLAMP, WORM DRIVE, .44 X 5.63
  • 15
    5813481 MATTE, TUNED PIPE, BOTTOM
    MATTE, TUNED PIPE, BOTTOM
  • 15
    5813482 MATTE, TUNED PIPE, TOP
    MATTE, TUNED PIPE, TOP
  • 15
    5253389 COVER, TUNED PIPE, BOTTOM
    COVER, TUNED PIPE, BOTTOM
  • 15
    5253390 COVER, TUNED PIPE, TOP
    COVER, TUNED PIPE, TOP
  • 16
    7547180 NUT, FLANGED
    NUT, FLANGED
  • 17
    7555976 WASHER, FLAT
    WASHER, FLAT
  • 18
    5253637 RETAINER, RESONATOR MOUNT
    RETAINER, RESONATOR MOUNT
  • 19
    7052028 GROMMET, FLANGED
    GROMMET, FLANGED
