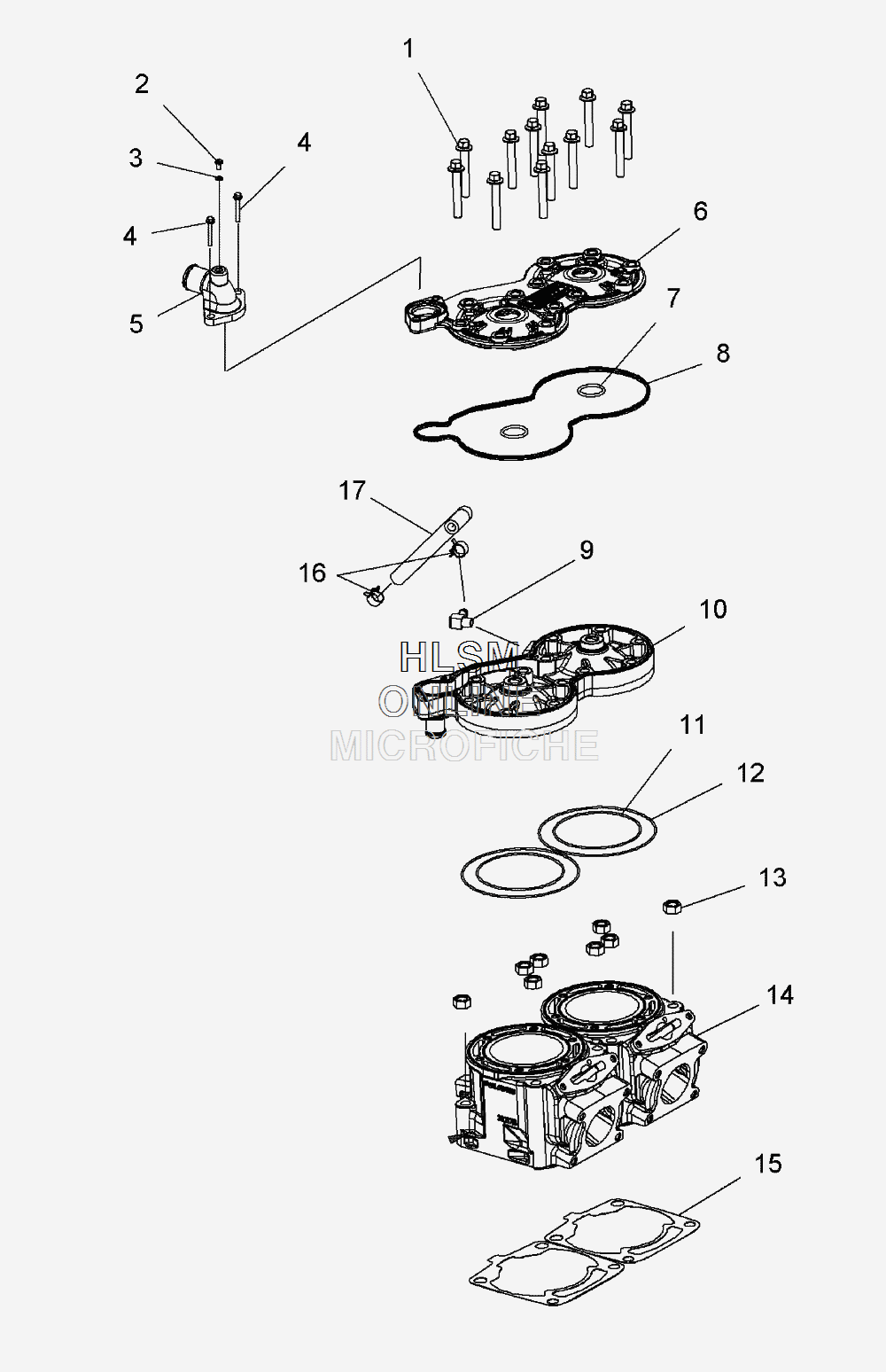

CYLINDER для Polaris 600 WIDETRAK IQ INTERNATIONAL (2010) [S10PU6KEL] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7517533 SCREW,M8X1.25X55
    SCREW,M8X1.25X55
  • 2
    7517679 SCREW,M6X1.0 X 13,SL/HX/FL-Z
    SCREW,M6X1.0 X 13,SL/HX/FL-Z
  • 3
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 4
    7516827 SCREW
    SCREW
  • 5
    5136512 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 6
    5631822-329 CVR-HEAD,SDI (BLACK)
    CVR-HEAD,SDI (BLACK)
  • 7
    5411411 O-RING
    O-RING
  • 8
    5413036 SEAL
    SEAL
  • 9
    7052157 FITTING 90 DEGREE
    FITTING 90 DEGREE
  • 10
    3022221 HEAD, CYLINDER
    HEAD, CYLINDER
  • 11
    5410932 O-RING
    O-RING
  • 12
    5411359 O-RING
    O-RING
  • 13
    7547013 NUT
    NUT
  • 14
    3022206 CYLINDER
    CYLINDER
  • 15
    5813312 GASKET, CYLINDER BASE, METAL
    GASKET, CYLINDER BASE, METAL
  • 16
    7081432 CLAMP-HOSE, 17/32 (GREEN)
    CLAMP-HOSE, 17/32 (GREEN)
  • 17
    5413080 HOSE, COOLANT, THROTTLE BODY
    HOSE, COOLANT, THROTTLE BODY
