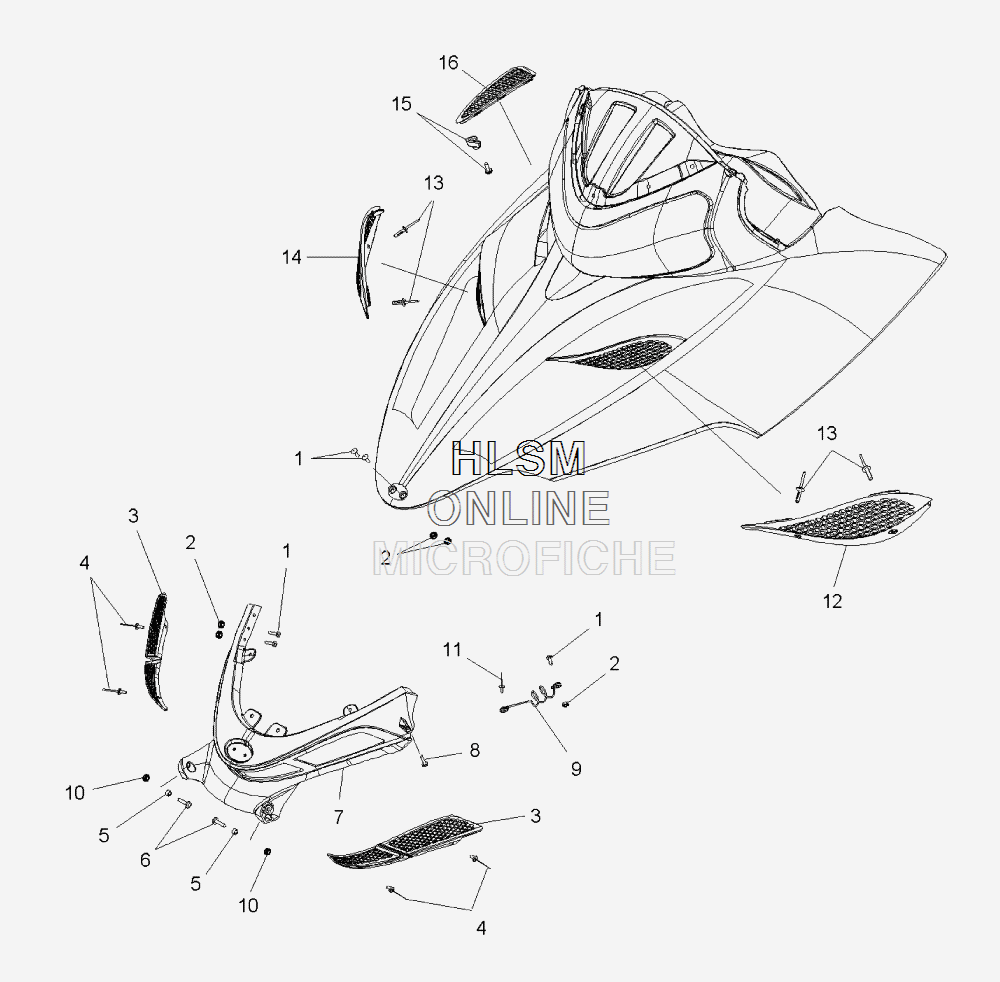

BODY- HOOD- FRONT HINGE ASM. для Polaris 600 WIDETRAK IQ INTERNATIONAL (2010) [S10PU6KEL] - 2010 года выпуска
-
№АртикулНазвание
-
17518281 SCREWSCREW
-
27518287 NUT, FLANGEDNUT, FLANGED
-
35435848-070 SCREEN, HINGE (BLACK) LEFT HANDSCREEN, HINGE (BLACK) LEFT HAND
-
35435849-070 SCREEN, HINGE (BLACK) RIGHT HANDSCREEN, HINGE (BLACK) RIGHT HAND
-
47081040 RIVET-PLASTIC,R-LOCK,.197 DIARIVET-PLASTIC,R-LOCK,.197 DIA
-
55334429 BUSHING-.277X.375X.38,6061BUSHING-.277X.375X.38,6061
-
67517455 SCREWSCREW
-
75435287-070 HINGE, GRILL, HOOD (BLACK)HINGE, GRILL, HOOD (BLACK)
-
87518238 SCREWSCREW
-
97081133 CABLE, HOOD, RETAINERCABLE, HOOD, RETAINER
-
107542122 NUT, NYLOKNUT, NYLOK
-
117661637 RIVETRIVET
-
125435846-070 SCREEN HOOD, LEFT HAND (BLACK)SCREEN HOOD, LEFT HAND (BLACK)
-
137661922 RIVET-PLASTIC (.236-.394)(50)RIVET-PLASTIC (.236-.394)(50)
-
145435847-070 SCREEN HOOD, RIGHT HAND (BLACK)SCREEN HOOD, RIGHT HAND (BLACK)
-
157527815 SCREW,TAPPING,SCREW,TAPPING,
-
155438184 SPACER, HOOD SCREENSPACER, HOOD SCREEN
-
165438143-070 SCREEN HOOD TOP (BLACK)SCREEN HOOD TOP (BLACK)
