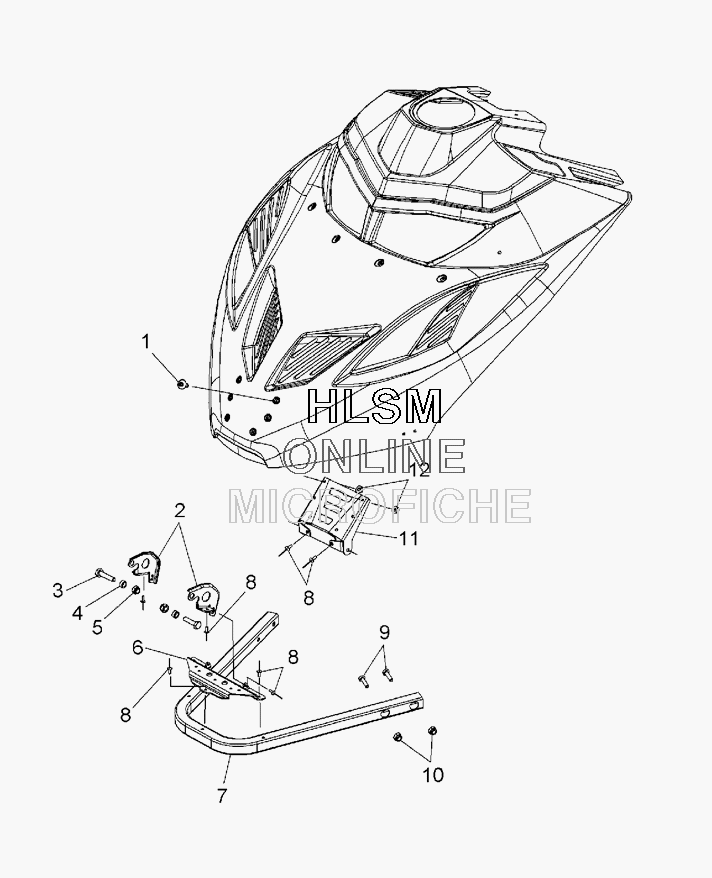

FRONT BUMPER W/HOOD MOUNTING для Polaris 600 RR EURO (S09MX6FE) - 2009 года выпуска`
-
№АртикулНазвание
-
17518281 SCR-10-24X5/8 TORX TH MS STL YSCR-10-24X5/8 TORX TH MS STL Y
-
25249092-067 HINGE-LOWER PIVOT, LEFT HAND, BLACKHINGE-LOWER PIVOT, LEFT HAND, BLACK
-
25249093-067 HINGE-LOWER PIVOT, RIGHT HAND, BLACKHINGE-LOWER PIVOT, RIGHT HAND, BLACK
-
37512113 BOLTBOLT
-
45332403 SPACERSPACER
-
57542122 NUT-NYLOKNUT-NYLOK
-
65248879 BRKT-HOOD HINGE, MOUNTBRKT-HOOD HINGE, MOUNT
-
75335252-329 BUMPER-FRT, RACE, ECOATBUMPER-FRT, RACE, ECOAT
-
87661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
97515307 BOLTBOLT
-
107542343 NUT, FLANGENUT, FLANGE
-
115248925 HINGE-PIVOT UPPERHINGE-PIVOT UPPER
-
127518287 NUT-#10-24 NYLOK INSERTNUT-#10-24 NYLOK INSERT
