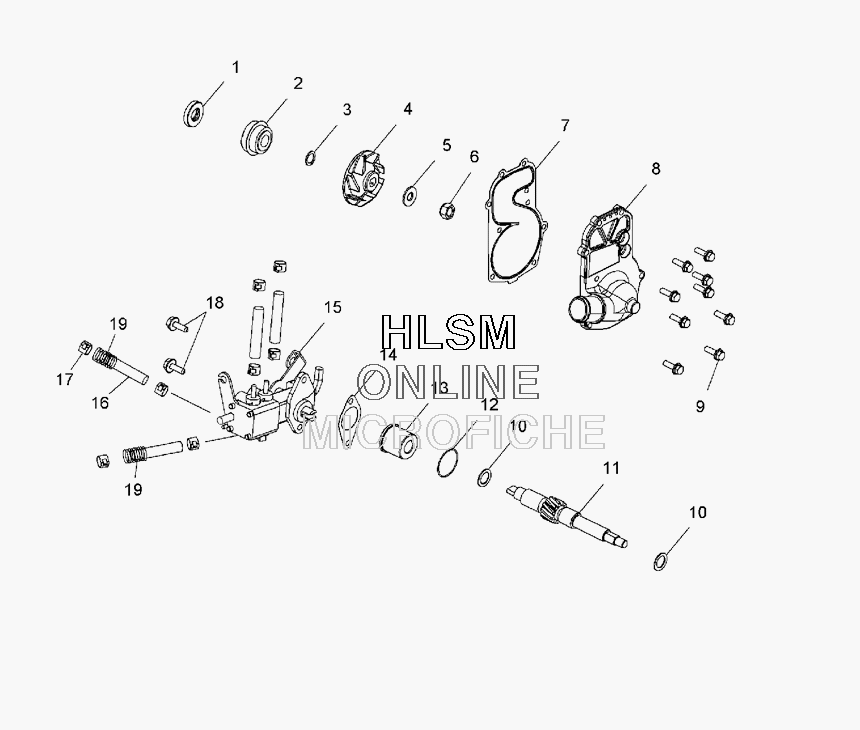

WATER PUMP/OIL PUMP для Polaris 600 RR EURO (S09MX6FE) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    5411197 SEAL, TYPE S, ARS
    SEAL, TYPE S, ARS
  • 2
    3610067 SEAL
    SEAL
  • 3
    7556006 WASHER, FLAT, SS.
    WASHER, FLAT, SS.
  • 4
    5436648 IMPELLER-WATERPUMP
    IMPELLER-WATERPUMP
  • 5
    7555874 WASHER, FLAT, S.S.
    WASHER, FLAT, S.S.
  • 6
    7546804 NUT, HEX, , NYLOK
    NUT, HEX, , NYLOK
  • 7
    5811601 GASKET, WATERPUMP CVRIGHT HAND
    GASKET, WATERPUMP CVRIGHT HAND
  • 8
    5631951 COVER-WATERPUMP, SNOW HI-FLOW
    COVER-WATERPUMP, SNOW HI-FLOW
  • 9
    7516822 SCREW
    SCREW
  • 10
    7555977 WASHER, THRUST
    WASHER, THRUST
  • 11
    5133688 GEAR-CROSS SHAFT, 11 START
    GEAR-CROSS SHAFT, 11 START
  • 12
    5411196 O-RING
    O-RING
  • 13
    5010391 BRNG, PUMP SHAFT, FLANGED
    BRNG, PUMP SHAFT, FLANGED
  • 14
    5811789 GASKET
    GASKET
  • 15
    2520854 ASM-OIL PUMP RR
    ASM-OIL PUMP RR
  • 16
    8450061-600 LINE, FUEL, 3MMX7MM
    LINE, FUEL, 3MMX7MM
  • 17
    7080603 CLAMP
    CLAMP
  • 18
    7517277 SCREW
    SCREW
  • 19
    8360056-25 TUBING-CONVOLUTED, 25CM
    TUBING-CONVOLUTED, 25CM
