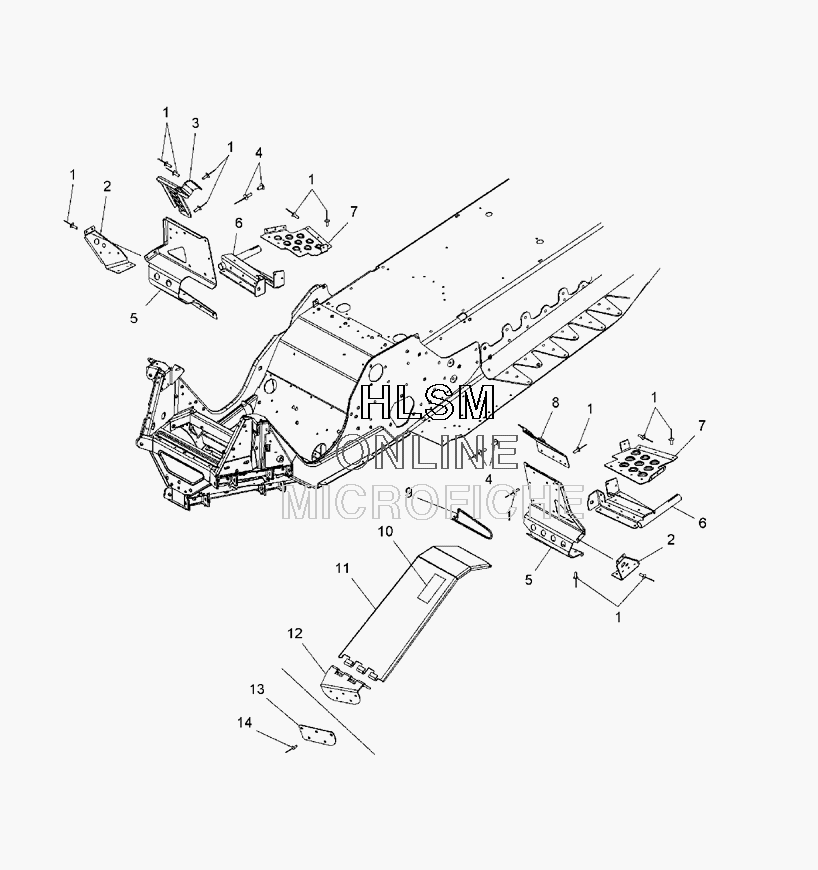

CLUTCH GUARD W/FOOTREST для Polaris 600 RR EURO (S09MX6FE) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 2
    5248308 SUPPORT-FOOTREST/PAN MNT, LEFT HAND
    SUPPORT-FOOTREST/PAN MNT, LEFT HAND
  • 2
    5248309 SUPPORT-FOOTREST/PAN MNT, RIGHT HAND
    SUPPORT-FOOTREST/PAN MNT, RIGHT HAND
  • 3
    5249983 SHIELD-HOOP/UPPER FOOTREST
    SHIELD-HOOP/UPPER FOOTREST
  • 4
    7621601 ASM-RIVET/RETAINER
    ASM-RIVET/RETAINER
  • 5
    5249697 FOOTREST-UPPER, LEFT HAND
    FOOTREST-UPPER, LEFT HAND
  • 5
    5249698 FOOTREST-UPPER, RIGHT HAND
    FOOTREST-UPPER, RIGHT HAND
  • 6
    1015344 WELD-SUPPORT FOOTREST, LEFT HAND
    WELD-SUPPORT FOOTREST, LEFT HAND
  • 6
    1015345 WELD-SUPPORT FOOTREST, RIGHT HAND
    WELD-SUPPORT FOOTREST, RIGHT HAND
  • 7
    5248549 FOOTREST-LOWER, LEFT HAND
    FOOTREST-LOWER, LEFT HAND
  • 7
    5248550 FOOTREST-LOWER, RIGHT HAND
    FOOTREST-LOWER, RIGHT HAND
  • 8
    5250566 BRKT-CLUTCH GUARD REAR
    BRKT-CLUTCH GUARD REAR
  • 9
    7080698 PIN, CLUTCH GUARD
    PIN, CLUTCH GUARD
  • 10
    70792971 COVER-CLUTCH, GUARD
    COVER-CLUTCH, GUARD
  • 12
    1010007 ASM., BRACKET, CLUTCH GUARD
    ASM., BRACKET, CLUTCH GUARD
  • 13
    5249060 PLATE-BACKER, CLUTCH GUARD
    PLATE-BACKER, CLUTCH GUARD
  • 14
    7621402 RIVET, POP
    RIVET, POP
