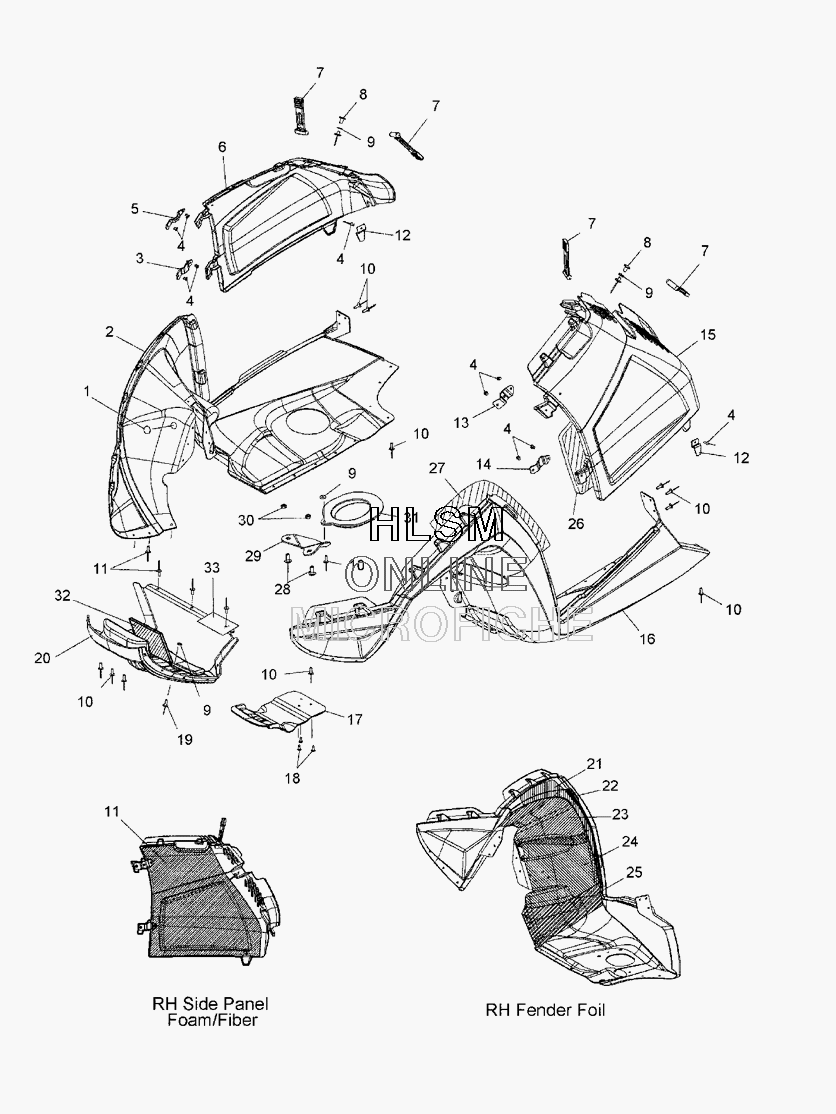

NOSEPAN AND SIDEPANELS для Polaris 600 RR EURO (S09MX6FE) - 2009 года выпуска
-
№АртикулНазвание
-
15410582 PLUG, CATCH HOLEPLUG, CATCH HOLE
-
22633623-070 ASM-FENDER, W/FOAM/FIBER, RIGHT HAND, BLACK (INCL. 3-5, 7-10)ASM-FENDER, W/FOAM/FIBER, RIGHT HAND, BLACK (INCL. 3-5, 7-10)
-
35248923 SUPPORT-SIDE PANEL, LOWER, RIGHT HANDSUPPORT-SIDE PANEL, LOWER, RIGHT HAND
-
47621472 RIVETRIVET
-
55249036 SUPPORT-SIDE PANEL, UPPER, RIGHT HANDSUPPORT-SIDE PANEL, UPPER, RIGHT HAND
-
62633613-070 ASM-SIDE PANEL, RIGHT HAND, BLACK (INCL. 3-5, 7-9, 11, 12)ASM-SIDE PANEL, RIGHT HAND, BLACK (INCL. 3-5, 7-9, 11, 12)
-
75433150 STRAPSTRAP
-
81015421 ASM-RIVET/RETAINERASM-RIVET/RETAINER
-
97555904 WASHERWASHER
-
107621467 RIVET, BLINDRIVET, BLIND
-
115813245 FOAM/FIBER-SIDEPANEL, RIGHT HANDFOAM/FIBER-SIDEPANEL, RIGHT HAND
-
125249245 BRKT-SIDE PANEL TABBRKT-SIDE PANEL TAB
-
135249035 SUPPORT-SIDE PANEL, UPPER, LEFT HANDSUPPORT-SIDE PANEL, UPPER, LEFT HAND
-
145248922 SUPPORT-SIDE PANEL, LOWER, LEFT HANDSUPPORT-SIDE PANEL, LOWER, LEFT HAND
-
152633612-070 ASM-SIDE PANEL, LEFT HAND, BLACK (INCL. 4, 7, 8, 13-15)ASM-SIDE PANEL, LEFT HAND, BLACK (INCL. 4, 7, 8, 13-15)
-
162633619-070 ASM-FENDER, LEFT HAND, BLACKASM-FENDER, LEFT HAND, BLACK
-
175436882-070 PLATE-SKID, BLACKPLATE-SKID, BLACK
-
187518352 SCR-1/4X20X3/4, TR/TX, NYLONSCR-1/4X20X3/4, TR/TX, NYLON
-
197621418 RIVET, POPRIVET, POP
-
205436358-070 NOSEPAN-BSC, RACE, BLACKNOSEPAN-BSC, RACE, BLACK
-
215813243 FOAM/FIBER-FENDER, RIGHT HANDFOAM/FIBER-FENDER, RIGHT HAND
-
225812255 FOIL-10.00X1.00FOIL-10.00X1.00
-
235812837 FOIL-FENDER, UPPER, RIGHT HANDFOIL-FENDER, UPPER, RIGHT HAND
-
245812838 FOIL-FENDER, LOWER, RIGHT HANDFOIL-FENDER, LOWER, RIGHT HAND
-
255813308 FOIL-FENDER BOTTOM RIGHT HANDFOIL-FENDER BOTTOM RIGHT HAND
-
265813244 FOAM/FIBER-SIDEPANEL, LEFT HANDFOAM/FIBER-SIDEPANEL, LEFT HAND
-
275813242 FOAM/FIBER-FENDER, LEFT HANDFOAM/FIBER-FENDER, LEFT HAND
-
287512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
295251444 DEFLECTOR-SNOW, EXHAUSTDEFLECTOR-SNOW, EXHAUST
-
307542321 NUT, FLANGENUT, FLANGE
-
315436066 BOOT-EXHAUST, OUTLETBOOT-EXHAUST, OUTLET
-
325813246 FOAM/FIBER-NOSEPANFOAM/FIBER-NOSEPAN
-
335813281 FOIL-NOSEPAN RRFOIL-NOSEPAN RR
