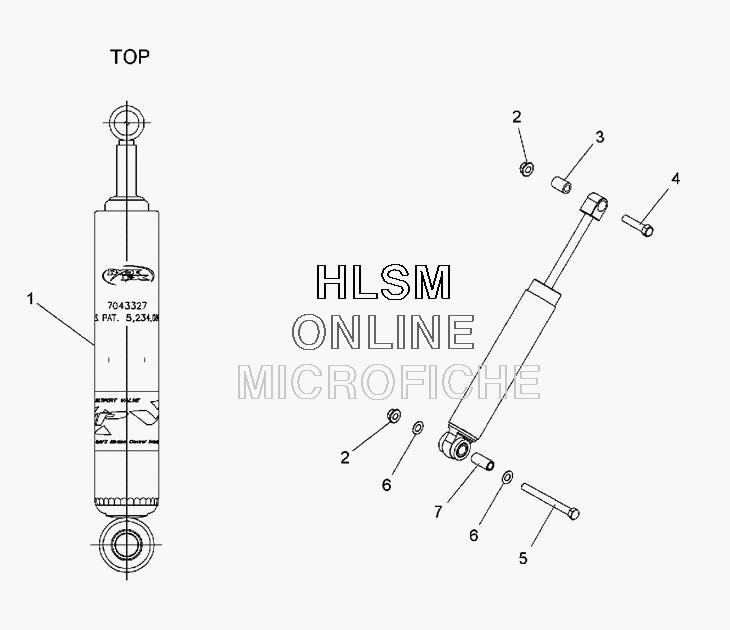

SUSPENSION - REAR SHOCK TRACK (7043327) для Polaris 600 IQ TOURING AND EURO (S09PT6HS/HE) - 2009 года выпуска`
-
№АртикулНазвание
-
17043327 SHOCK-R/T, ARVIN MPV, 136 TRSHOCK-R/T, ARVIN MPV, 136 TR
-
27547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
35010422 BUSHINGBUSHING
-
47512410 BOLTBOLT
-
57518263 SCR-3/8-24X4.00 HXCP-GR5-YSCR-3/8-24X4.00 HXCP-GR5-Y
-
67555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
75333905 SLEEVE, .385X.560X1.24SLEEVE, .385X.560X1.24
