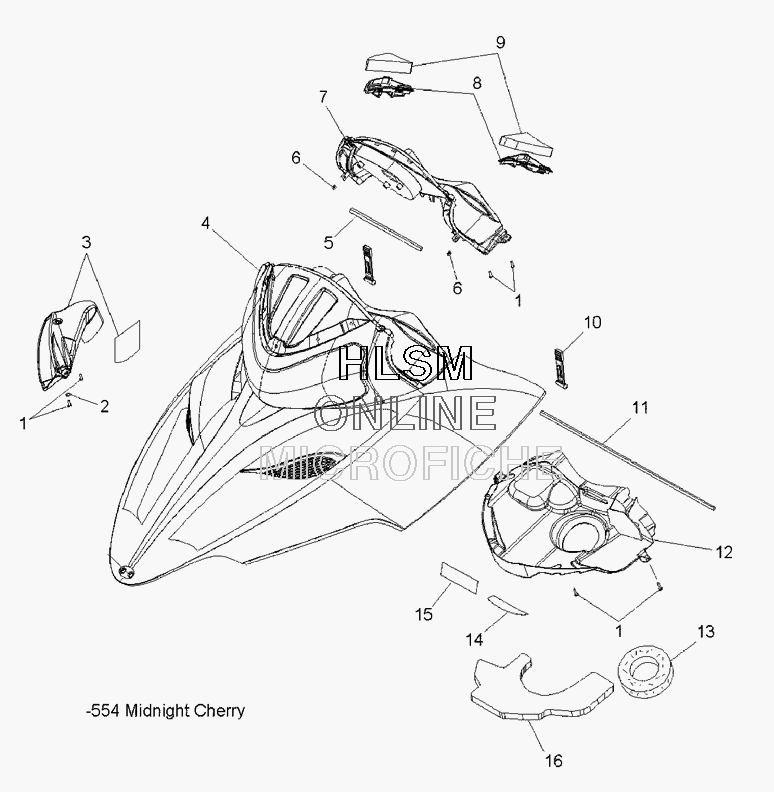

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 600 IQ TOURING AND EURO (S09PT6HS/HE) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    7518577 SCR-10X 5/8 TX PN PLST-243
    SCR-10X 5/8 TX PN PLST-243
  • 2
    7571602 WASHER
    WASHER
  • 3
    2633060 ASM-BRAKE DUCT
    ASM-BRAKE DUCT
  • 3
    5812758 FOIL
    FOIL
  • 4
    2633757-544 ASM-HOOD (INCL FOAM/FOIL)
    ASM-HOOD (INCL FOAM/FOIL)
  • 5
    5521697-350 SEAL-BULB, .375, 350CM
    SEAL-BULB, .375, 350CM
  • 6
    7670112 NUT-#10, U-TYPE, A (.065-.087)
    NUT-#10, U-TYPE, A (.065-.087)
  • 7
    5435789-070 POD-INSTRUMENT, BLACK
    POD-INSTRUMENT, BLACK
  • 8
    5435776 FILTER-CARTRIDGE, RIGHT HAND
    FILTER-CARTRIDGE, RIGHT HAND
  • 8
    5435777 FILTER-CARTRIDGE, LEFT HAND
    FILTER-CARTRIDGE, LEFT HAND
  • 9
    5812688 FILTER-FOAM
    FILTER-FOAM
  • 10
    5433150 STRAP
    STRAP
  • 11
    5812782 FOAM-SEAL 35''
    FOAM-SEAL 35''
  • 12
    2633309 ASM-HEADLIGHT ACCESS COVER (INCL 11, 13, 16)
    ASM-HEADLIGHT ACCESS COVER (INCL 11, 13, 16)
  • 13
    5813186 FOAM-AIRBOX, CHIMNEY, W/PSA
    FOAM-AIRBOX, CHIMNEY, W/PSA
  • 14
    5812937 FOIL-HDLIGHT ACCESS COVER #1
    FOIL-HDLIGHT ACCESS COVER #1
  • 15
    5812938 FOIL-HDLIGHT ACCESS COVER, #2
    FOIL-HDLIGHT ACCESS COVER, #2
  • 16
    5813094 FOAM-HEADLIGHT ACCESS COVER
    FOAM-HEADLIGHT ACCESS COVER
