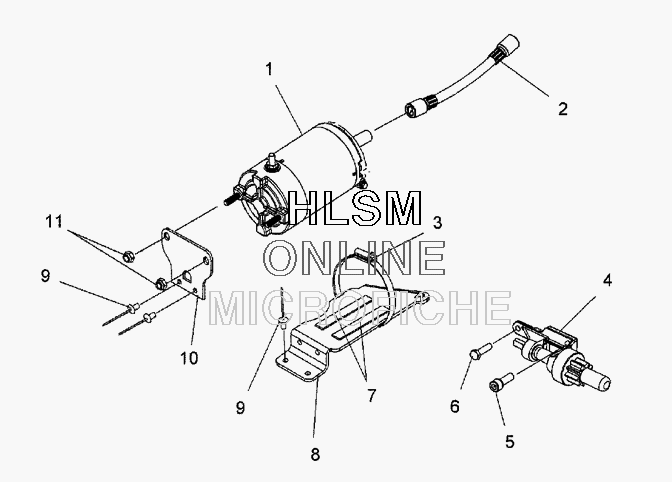

STARTING MOTOR для Polaris 600 IQ TOURING AND EURO (S09PT6HS/HE) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    4011671 STARTER-MOTOR
    STARTER-MOTOR
  • 2
    6230385 SHAFT-FLEX, STARTER
    SHAFT-FLEX, STARTER
  • 3
    7081279 CLAMP-BAND, NARROW 70-90MM
    CLAMP-BAND, NARROW 70-90MM
  • 4
    3089759 ASM-PINION/PINION BRKT
    ASM-PINION/PINION BRKT
  • 5
    7519020 SCREW
    SCREW
  • 6
    7516823 SCREW
    SCREW
  • 7
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 8
    5251277 BRKT-MOUNTING, BOTTOM PLATE
    BRKT-MOUNTING, BOTTOM PLATE
  • 9
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 10
    5250779 BRKT-MOUNTING, - END PLATE
    BRKT-MOUNTING, - END PLATE
  • 11
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
