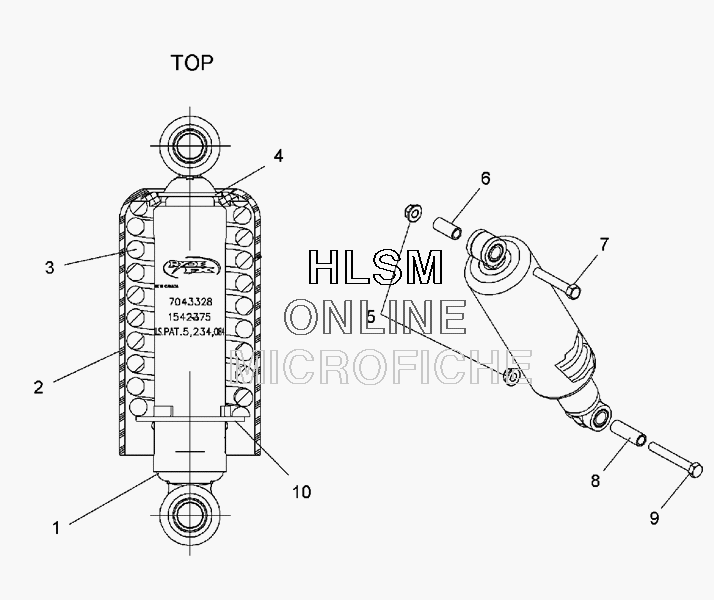

SUSPENSION - FRONT SHOCK TRACK (7043328) для Polaris 600 IQ TOURING AND EURO (S09PT6HS/HE) - 2009 года выпуска`
-
№АртикулНазвание
-
17043328 SHOCK-F/T, 136 TRSHOCK-F/T, 136 TR
-
25433503 SHIELD-SPRING, 3.00SHIELD-SPRING, 3.00
-
37043396-067 SPRING-COMP, 60#/IN, BLKSPRING-COMP, 60#/IN, BLK
-
45630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
57547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
65333905 SLEEVE, .385X.560X1.24SLEEVE, .385X.560X1.24
-
77515433 SCREWSCREW
-
85333906 SLEEVE, .385X.560X1.72SLEEVE, .385X.560X1.72
-
97515417 SCREWSCREW
-
105245067 RETAINER-SPRING, GAB, PLATEDRETAINER-SPRING, GAB, PLATED
