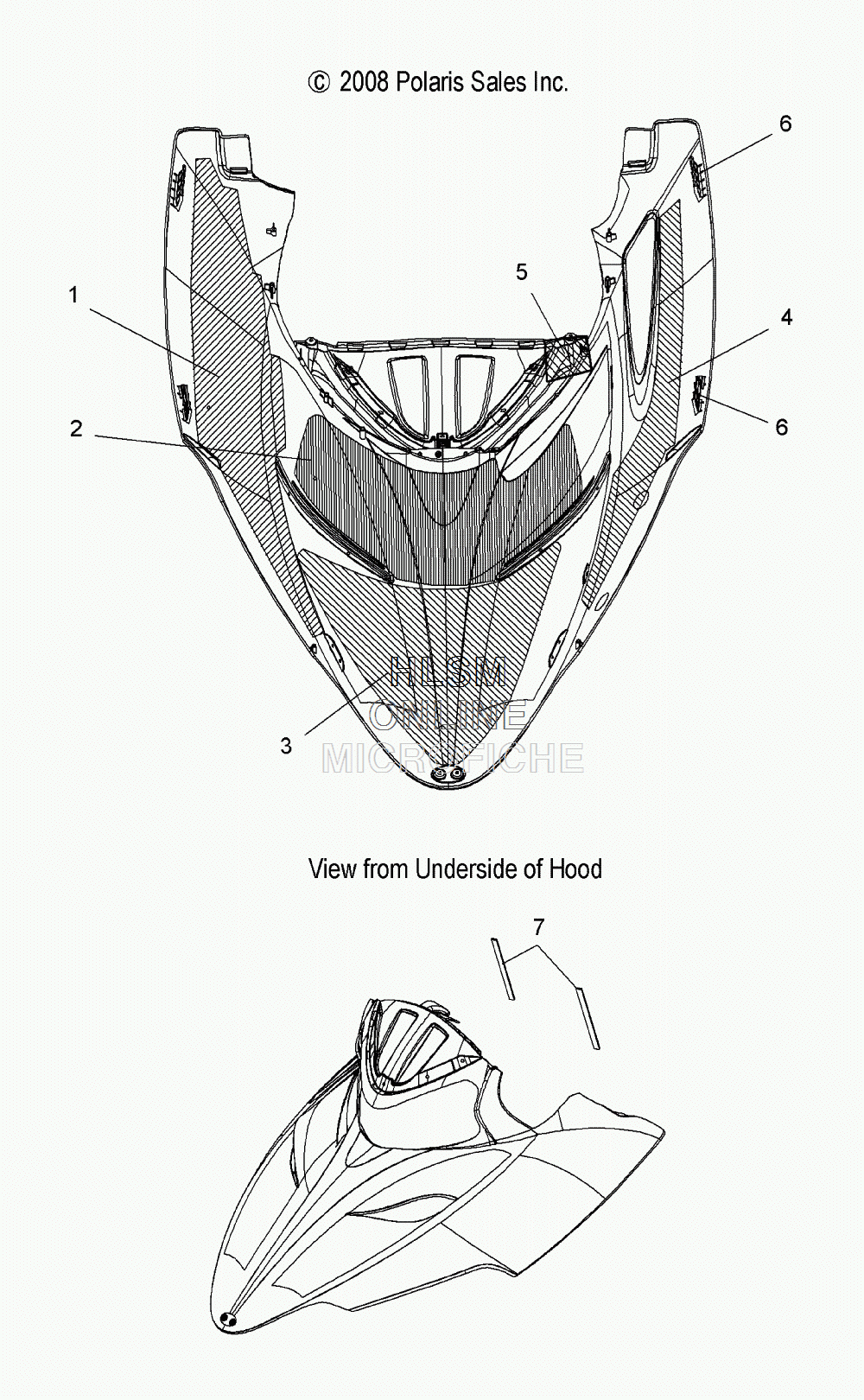

HOOD - FOAM/FOIL для Polaris 600 DRAGON ES EURO (S09PE6HEL) - 2009 года выпуска`
-
№АртикулНазвание
-
15813139 FOAM, HOOD SIDE, LEFT HANDFOAM, HOOD SIDE, LEFT HAND
-
25813137 FOAM/FIBER, UPPERFOAM/FIBER, UPPER
-
35813138 FOAM/FIBER, HOOD, LOWERFOAM/FIBER, HOOD, LOWER
-
45812872 FOIL, HOOD SIDE, RIGHT HANDFOIL, HOOD SIDE, RIGHT HAND
-
55812929 FABRIC, HEAT RES.FABRIC, HEAT RES.
-
65812834 FOIL, RIB, SIDE PANELFOIL, RIB, SIDE PANEL
-
75813125 FOAM, INSTRUMENT POD SEAL, 10 INCHFOAM, INSTRUMENT POD SEAL, 10 INCH
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY W/CABLES
- BRAKE ASSEMBLY KIT
- BUMPER - FRONT W/ NOSEPAN- FOAM- AND FOIL
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASSIS - FRONT
- CHASSIS ASSEMBLY
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/COVER
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDERS
- FOOTRESTS
- FUEL TANK
- GAUGE - MULTI FUNCTION
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- • HOOD - FOAM/FOIL
- HOOD - SCREENS - HINGES
- HOOD ASSEMBLY W/ HEADLIGHT
- JACKSHAFT ASSEMBLY
- OIL PUMP W/LINES
- OIL TANK ASSEMBLY
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT ASSEMBLY
- SIDE PANELS
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER W/TIE RODS
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - SWAYBAR
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- TORQUE ARM - FRONT
- TORQUE ARM - REAR
- WATER PUMP
- WINDSHIELD
- WIRING HARNESS
