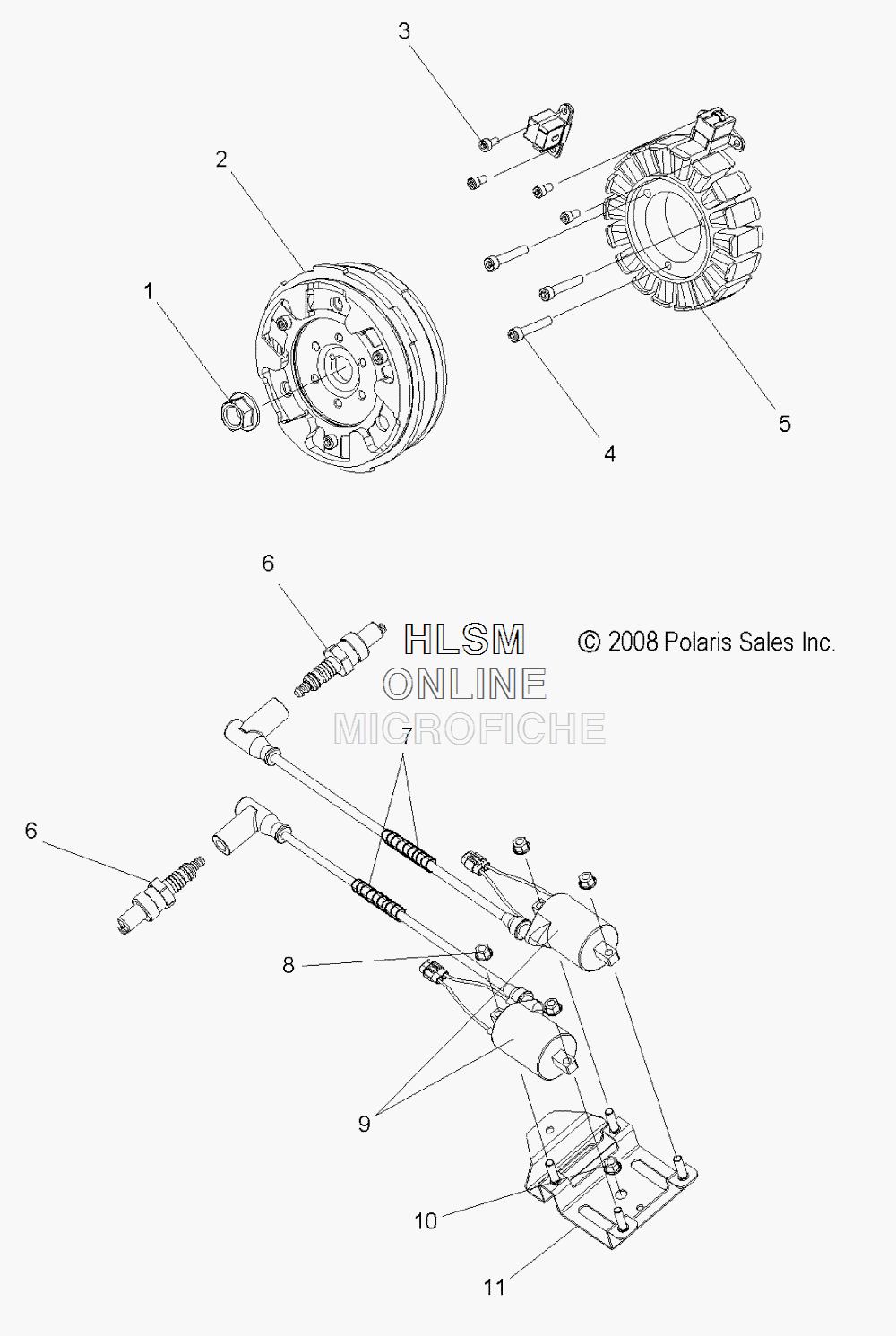

ELECTRICAL - IGNITION SYSTEM для Polaris 600 DRAGON ES EURO (S09PE6HEL) - 2009 года выпуска
-
№АртикулНазвание
-
17518299 NUT, FLANGENUT, FLANGE
-
24011211 FLYWHEELFLYWHEEL
-
37517847 SCREWSCREW
-
47517848 SCREWSCREW
-
54011449 STATORSTATOR
-
63070190 PLUG, SPARK, RN57YCCPLUG, SPARK, RN57YCC
-
74011722-33 CONDUIT, CONVOLUTED, HI-TEMPCONDUIT, CONVOLUTED, HI-TEMP
-
87546703 NUT, NYLOKNUT, NYLOK
-
94012136 COIL, IGNITION W/CAPCOIL, IGNITION W/CAP
-
94012140 CAP, IGNITION W/SEALCAP, IGNITION W/SEAL
-
107546701 NUTNUT
-
111015530 ASM., BRACKET/COIL W/STUDSASM., BRACKET/COIL W/STUDS
