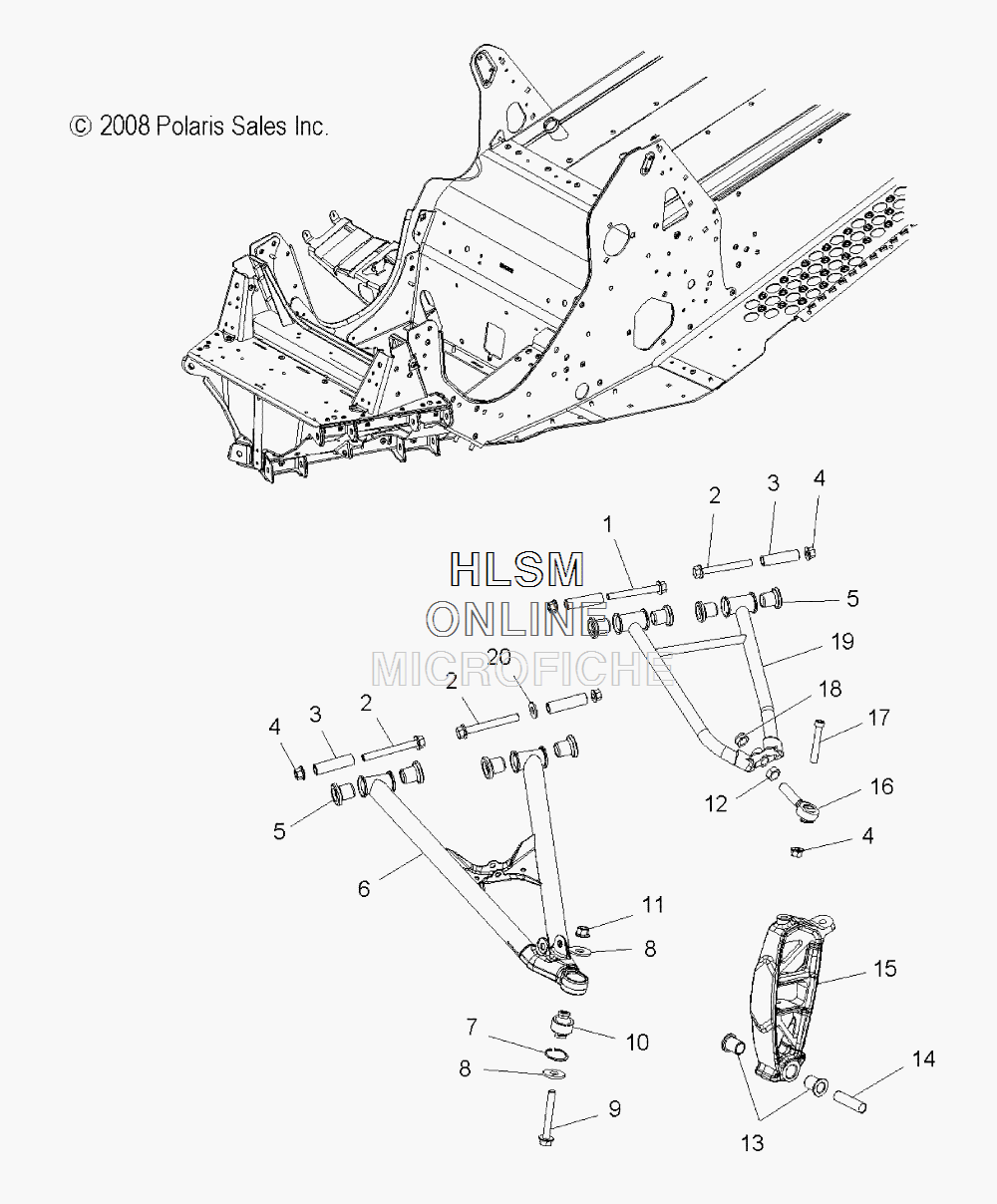

SUSPENSION - FRONT для Polaris 600 DRAGON ES EURO (S09PE6HEL) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    7518942 SCREW
    SCREW
  • 2
    7518384 SCREW
    SCREW
  • 3
    5135943 SHAFT, PIVOT
    SHAFT, PIVOT
  • 4
    7547180 NUT, FLANGED
    NUT, FLANGED
  • 5
    5434932 BUSHING, PIVOT
    BUSHING, PIVOT
  • 6
    2203994-067 KIT, LOWER CONTROL ARM, LEFT HAND (BLACK) (INCL. 3-5,7,10)
    KIT, LOWER CONTROL ARM, LEFT HAND (BLACK) (INCL. 3-5,7,10)
  • 6
    2203995-067 KIT, LOWER CONTROL ARM, RIGHT HAND (BLACK) (INCL. 3-5,7,10)
    KIT, LOWER CONTROL ARM, RIGHT HAND (BLACK) (INCL. 3-5,7,10)
  • 7
    7710539 RING, RETAINING
    RING, RETAINING
  • 8
    7556153 WASHER
    WASHER
  • 9
    7518478 SCREW
    SCREW
  • 10
    2203107 KIT, SPHERICAL BEARING, LOWER (INCL. 7)
    KIT, SPHERICAL BEARING, LOWER (INCL. 7)
  • 11
    7547344 NUT
    NUT
  • 12
    7542711 NUT, JAM
    NUT, JAM
  • 13
    5133983 BUSHING, SKI PIVOT
    BUSHING, SKI PIVOT
  • 14
    5010158 BUSHING, PIVOT
    BUSHING, PIVOT
  • 15
    1823543 ASM., SPINDLE, LEFT HAND, LWT (INCL. 13)
    ASM., SPINDLE, LEFT HAND, LWT (INCL. 13)
  • 15
    1823544 ASM., SPINDLE, RIGHT HAND, LWT (INCL. 13)
    ASM., SPINDLE, RIGHT HAND, LWT (INCL. 13)
  • 16
    7061145 ROD END
    ROD END
  • 17
    7518428 SCREW
    SCREW
  • 18
    7547104 NUT
    NUT
  • 19
    2203019-067 KIT, UPPER CONTROL ARM, LEFT HAND (BLACK) (INCL. 3-5,12,16,18)
    KIT, UPPER CONTROL ARM, LEFT HAND (BLACK) (INCL. 3-5,12,16,18)
  • 19
    2203020-067 KIT, UPPER CONTROL ARM, RIGHT HAND (BLACK) (INCL. 3-5,12,16,18)
    KIT, UPPER CONTROL ARM, RIGHT HAND (BLACK) (INCL. 3-5,12,16,18)
  • 20
    7555893 WASHER, FLAT
    WASHER, FLAT
