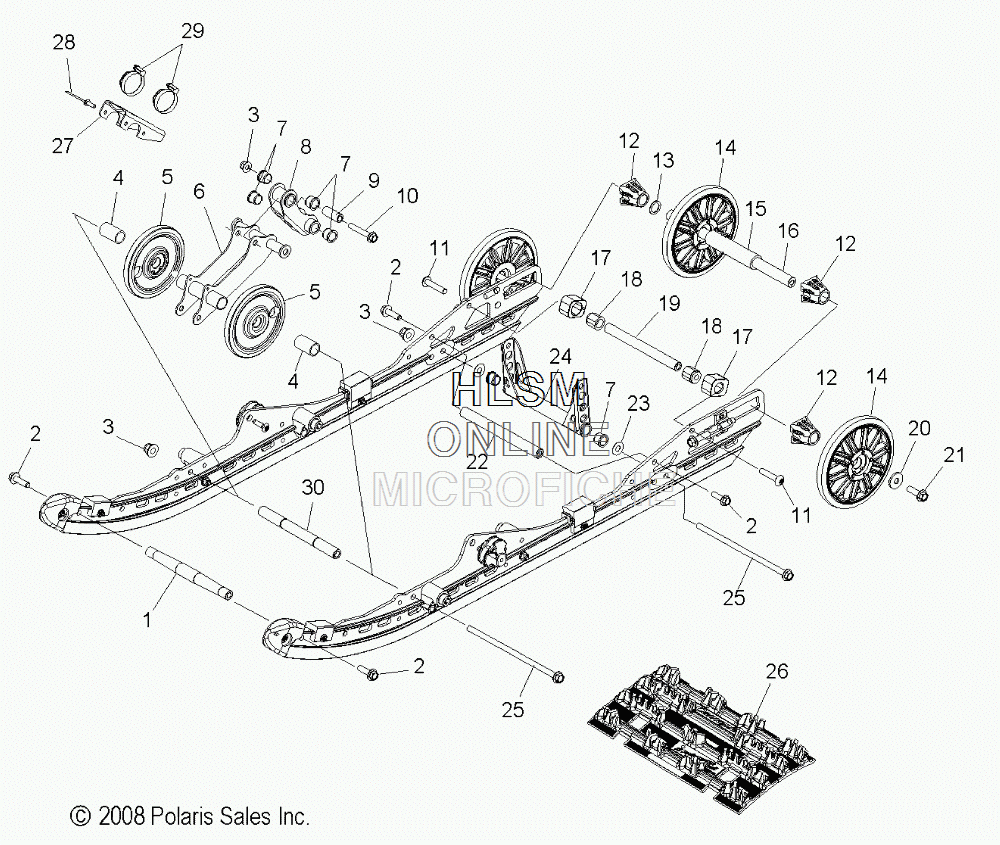

SUSPENSION - REAR для Polaris 600 DRAGON ES EURO (S09PE6HEL) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    5136432 SHAFT, TAPERED
    SHAFT, TAPERED
  • 2
    7518957 SCREW, HX/FL, ZOD
    SCREW, HX/FL, ZOD
  • 3
    7547423 NUT, NYLOK, ZOD
    NUT, NYLOK, ZOD
  • 4
    5136423 SPACER, WHEEL
    SPACER, WHEEL
  • 5
    1590457 ASM, WHEEL, PLAIN
    ASM, WHEEL, PLAIN
  • 5
    3514384 BEARING
    BEARING
  • 5
    7710444 RING, RETAINING
    RING, RETAINING
  • 6
    1542569-329 H-BRACKET (BLACK)
    H-BRACKET (BLACK)
  • 7
    5136418 BUSHING, PIVOT
    BUSHING, PIVOT
  • 8
    1542577-067 ASM., SHOCK PIVOT (INCL. 7)
    ASM., SHOCK PIVOT (INCL. 7)
  • 9
    5136430 BUSHING, SHOCK PIVOT
    BUSHING, SHOCK PIVOT
  • 10
    7518960 SCREW, HX/FL, ZOD
    SCREW, HX/FL, ZOD
  • 11
    7519030 SCREW, TXTH, ZOD
    SCREW, TXTH, ZOD
  • 12
    5432535 SPACER, IDLER
    SPACER, IDLER
  • 13
    7555918 BUSHING
    BUSHING
  • 14
    1590459 ASM, WHEEL, SPOKE
    ASM, WHEEL, SPOKE
  • 14
    3514384 BEARING
    BEARING
  • 14
    7710444 RING, RETAINING
    RING, RETAINING
  • 15
    5333285 SPACER, IDLER, LONG
    SPACER, IDLER, LONG
  • 16
    5136745 SHAFT, IDLER
    SHAFT, IDLER
  • 17
    5410925 BUMPER, PIVOT ARM
    BUMPER, PIVOT ARM
  • 18
    5136571 MOUNT, BUMPER, METRIC
    MOUNT, BUMPER, METRIC
  • 19
    5136686 SHAFT, COUPLING BLOCK
    SHAFT, COUPLING BLOCK
  • 20
    7556490 WASHER, SPRING, ZOD
    WASHER, SPRING, ZOD
  • 21
    7518957 SCREW, HX/FL, ZOD
    SCREW, HX/FL, ZOD
  • 22
    5136572 SHAFT
    SHAFT
  • 23
    7556473 WASHER
    WASHER
  • 24
    1542575-067 ASM., REAR PIVOT ARM (BLACK) (INCL. 7)
    ASM., REAR PIVOT ARM (BLACK) (INCL. 7)
  • 25
    7518965 SCREW, HX/FL, ZOD
    SCREW, HX/FL, ZOD
  • 26
    2875512 KIT, TRACK, 1.25 INCH, RIP SAW
    KIT, TRACK, 1.25 INCH, RIP SAW
  • 27
    5252783-329 BRACKET, MOUNT, RESERVOIR (BLACK)
    BRACKET, MOUNT, RESERVOIR (BLACK)
  • 28
    7661637 RIVET
    RIVET
  • 29
    7081634 CLAMP, CONSTANT TENSION
    CLAMP, CONSTANT TENSION
  • 30
    5136424 SHAFT, H-BRACKET
    SHAFT, H-BRACKET
