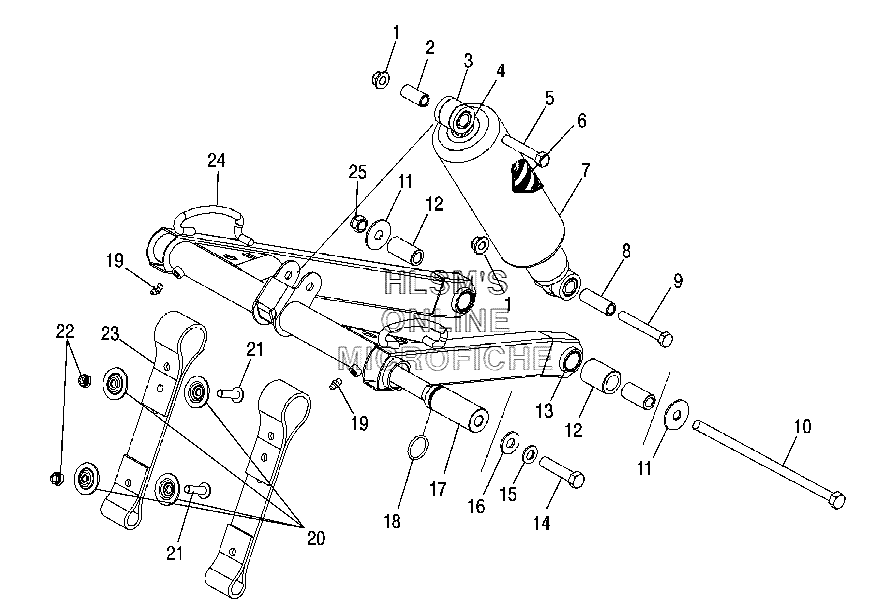

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 600 HO IQ (S07PP6FS) - 2007 года выпуска
-
№АртикулНазвание
-
17547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
25333905 SLEEVESLEEVE
-
37043244 SHOCK (SEE SHOCK, FRONT TRACK (RYDE FX/7043244) PAGE FOR DETAILS)SHOCK (SEE SHOCK, FRONT TRACK (RYDE FX/7043244) PAGE FOR DETAILS)
-
37043267 SHOCK (SEE SHOCK, FRONT TRACK, (FOX/7043267) PAGE FOR DETAILS)SHOCK (SEE SHOCK, FRONT TRACK, (FOX/7043267) PAGE FOR DETAILS)
-
45630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
57515415 SCREWSCREW
-
67043147-067 SPRING-COMP (130/270) (8.22) (BLACK)SPRING-COMP (130/270) (8.22) (BLACK)
-
75433503 SHIELD-SPRING (3.00)SHIELD-SPRING (3.00)
-
85333906 SLEEVE (.385X.560X1.72)SLEEVE (.385X.560X1.72)
-
97515417 SCREWSCREW
-
107518339 SCREWSCREW
-
117556156 WASHERWASHER
-
125133365 SHAFTSHAFT
-
135133682 BUSHINGBUSHING
-
147518261 SCREWSCREW
-
157552614 WASHER, LOCKWASHER, LOCK
-
167555984 WASHER, FLATWASHER, FLAT
-
175133892 SHAFT-FTA, SCION (UPPER)SHAFT-FTA, SCION (UPPER)
-
185411411 O-RINGO-RING
-
197080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
205220646 WASHER, DOMEDWASHER, DOMED
-
217518070 SCREWSCREW
-
227542344 NUT, NYLOKNUT, NYLOK
-
235412818 STRAP-LIMITERSTRAP-LIMITER
-
241541948-067 FTA ASSY, SCION (BLACK)FTA ASSY, SCION (BLACK)
-
257542503 NUT, FLEXLOCKNUT, FLEXLOCK
