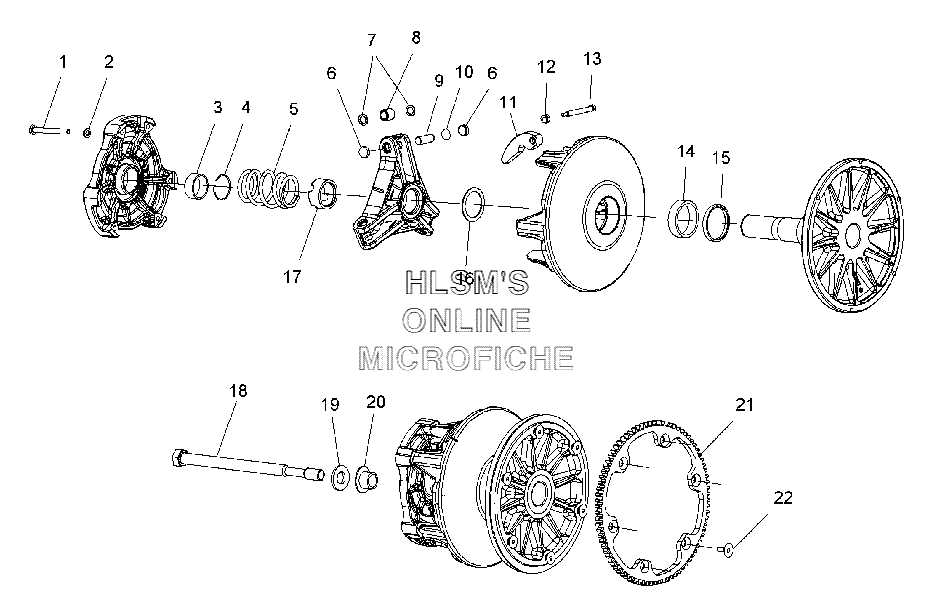

DRIVE GEAR W/ PULLEY для Polaris 600 HO IQ (S07PP6FS) - 2007 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57042083 SPRING-CLUTCH (BLACK/GREEN)SPRING-CLUTCH (BLACK/GREEN)
-
65430445 BUTTON, GUIDE (.245'')BUTTON, GUIDE (.245'')
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSY (3)ROLLER AND BUSHING ASSY (3)
-
95133079 PIN-ROLLER, 1''PIN-ROLLER, 1''
-
102200387 SHIM KIT, DRIVE CLUTCHSHIM KIT, DRIVE CLUTCH
-
111321586 WT/BUSH ASSYWT/BUSH ASSY
-
127541906 NUT FLEXLOCNUT FLEXLOC
-
137515105 PIN, WT. HARDENEDPIN, WT. HARDENED
-
143576502 BEARING, SLEEVEBEARING, SLEEVE
-
155010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
165210754 SPACER (.050)SPACER (.050)
-
165210753 SPACER (.032)SPACER (.032)
-
165242981 SPACER (.025)SPACER (.025)
-
165210752 SPACER (.020)SPACER (.020)
-
165134018 SPACER (.130)SPACER (.130)
-
175020425 NUT, JAMNUT, JAM
-
187517501 SCREWSCREW
-
197556003 WASHERWASHER
-
205132441 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
212870002 FLYWHEELFLYWHEEL
-
227515351 BOLTBOLT
-
-1321928 DRIVE CLUTCH ASSY. (LESS 5, 11, 18-20)DRIVE CLUTCH ASSY. (LESS 5, 11, 18-20)
