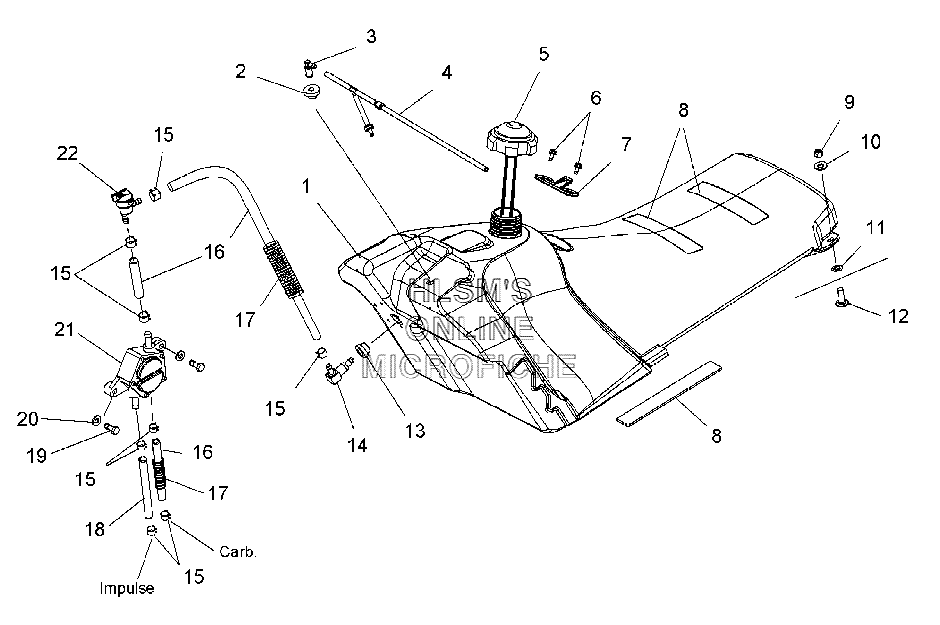

FUEL SYSTEM для Polaris 600 HO IQ (S07PP6FS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    2520691 FUEL TANK (INCL. 2, 3, 6, 7, 13, 14)
    FUEL TANK (INCL. 2, 3, 6, 7, 13, 14)
  • 1
    7052215 PICK-UP, FUEL, W/MESH
    PICK-UP, FUEL, W/MESH
  • 1
    7080768 RING, COMPRESSION
    RING, COMPRESSION
  • 1
    8350020-160 FUEL, LINE, ETHER
    FUEL, LINE, ETHER
  • 2
    7052362 GROMMET-FLANGED
    GROMMET-FLANGED
  • 3
    7052380 FITTING-VENT
    FITTING-VENT
  • 4
    2633187 VENT ASSY, FUEL TANK
    VENT ASSY, FUEL TANK
  • 5
    2511246 CAP, GAS, W/GAUGE
    CAP, GAS, W/GAUGE
  • 6
    7512208 SCREW
    SCREW
  • 7
    5247431 BRACKET-SEAT MOUNT
    BRACKET-SEAT MOUNT
  • 8
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 9
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 10
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 11
    7670154 RETAINER-BOLT
    RETAINER-BOLT
  • 12
    7515203 BOLT
    BOLT
  • 13
    5435941 GROMMET (3/4'')
    GROMMET (3/4'')
  • 14
    7052407 FITTING
    FITTING
  • 15
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    8350017-160 FUEL, LINE, ETHER (RED) (5/16'')
    FUEL, LINE, ETHER (RED) (5/16'')
  • 17
    8360052-305 TUBING, CONVOLUTED
    TUBING, CONVOLUTED
  • 18
    8450040-600 LINE FUEL (1/4 ID 600 CM.)
    LINE FUEL (1/4 ID 600 CM.)
  • 19
    7512278 BOLT
    BOLT
  • 20
    7558302 WASHER, WROUGHT
    WASHER, WROUGHT
  • 21
    2520694 FUEL, PUMP
    FUEL, PUMP
  • 22
    1253424 VALVE ASSY, FUEL
    VALVE ASSY, FUEL
