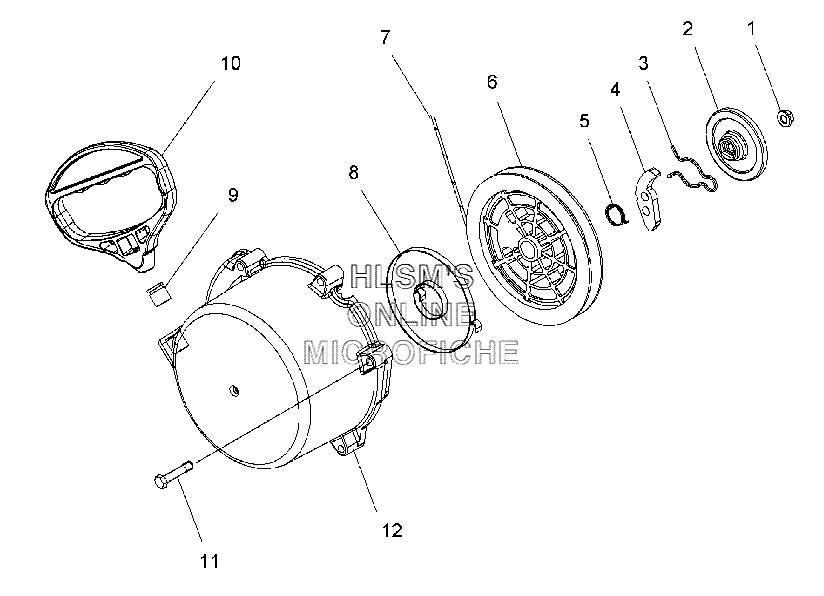

STARTER - RECOIL ASSEMBLY для Polaris 600 HO IQ (S07PP6FS) - 2007 года выпуска
-
№АртикулНазвание
-
13040163 NUT, FLANGENUT, FLANGE
-
23040164 PLATE, FRICTIONPLATE, FRICTION
-
33040167 SPRING, FRICTIONSPRING, FRICTION
-
45246108 RATCHET-PAWL ELEC REVRATCHET-PAWL ELEC REV
-
53040166 SPRING, RETURNSPRING, RETURN
-
63040168 REELREEL
-
73040169 ROPE, STARTERROPE, STARTER
-
83040170 SPRING, SPIRALSPRING, SPIRAL
-
93040171 GUIDE-ROPEGUIDE-ROPE
-
105431499-070 HANDLE-RECOIL (BLACK)HANDLE-RECOIL (BLACK)
-
117516827 SCREWSCREW
-
125630645 RECOIL ASSY., ELECTRIC REVRECOIL ASSY., ELECTRIC REV
-
-1202298 RECOIL ELECTRIC REV ASSY (INCL. 1-8,12)RECOIL ELECTRIC REV ASSY (INCL. 1-8,12)
