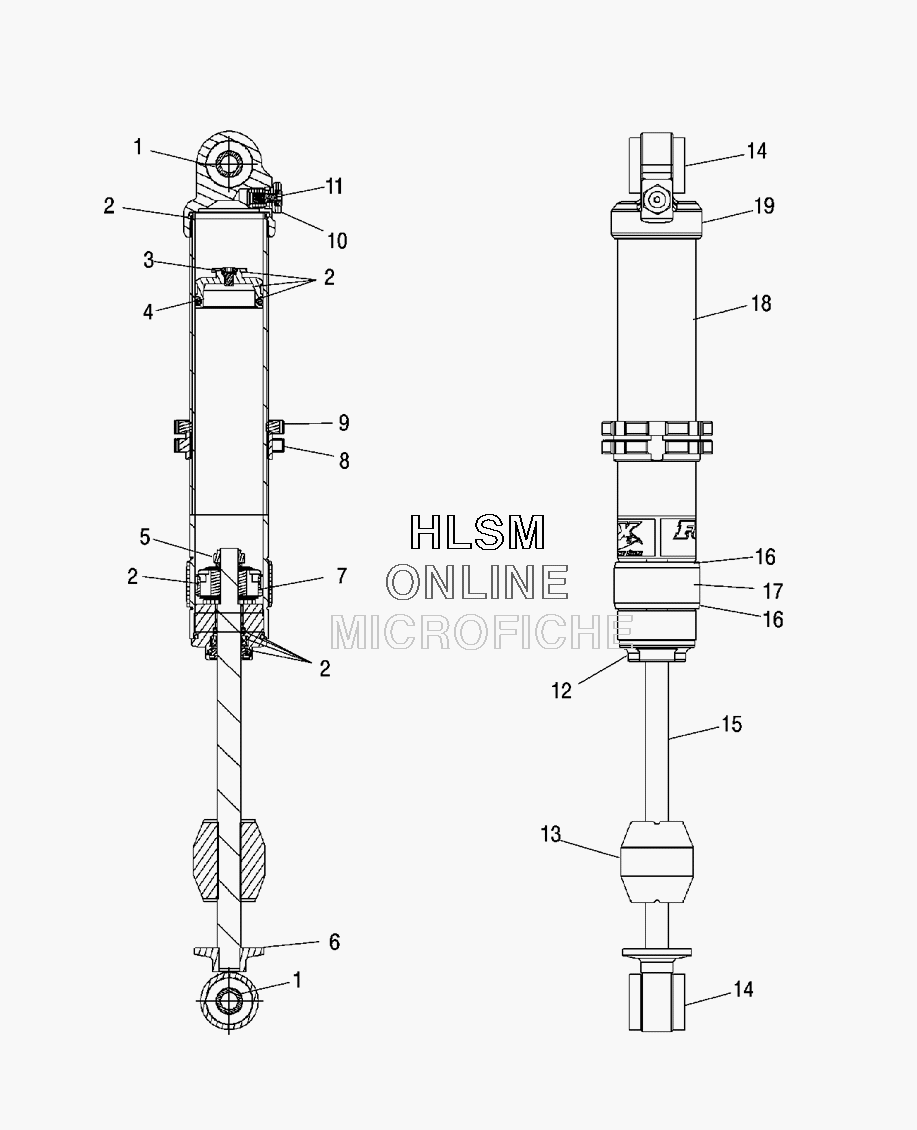

SUSPENSION - SHOCK IFS - EXTERNAL для Polaris 600 CLEANFIRE SWITCHBACK AND STOCK A/B (S07PS6HS/HAS/HSB) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1500138 SLEEVE, STEEL
    SLEEVE, STEEL
  • 2
    1500710 KIT-REBUILD 803-00-101
    KIT-REBUILD 803-00-101
  • 3
    1500161 SCREW/O-RING ASM.
    SCREW/O-RING ASM.
  • 4
    1500601 ASM-IFP
    ASM-IFP
  • 5
    1500016 NUT, LOCK
    NUT, LOCK
  • 6
    1500164 EYELET, BASE
    EYELET, BASE
  • 7
    1500010 PISTON ASSY. KIT
    PISTON ASSY. KIT
  • 8
    1500707 RING, SPRING PRELOAD 234-00-126
    RING, SPRING PRELOAD 234-00-126
  • 9
    1500708 RING, SPRING PRELOAD 234-00-127
    RING, SPRING PRELOAD 234-00-127
  • 10
    1500014 VALVE ASM, AIR
    VALVE ASM, AIR
  • 11
    1500019 SCREW
    SCREW
  • 12
    1500545 RETAINER RING
    RETAINER RING
  • 13
    1500567 BUMPER, B/O
    BUMPER, B/O
  • 14
    1500137 BUSHING, EYELET
    BUSHING, EYELET
  • 15
    1500768 SHAFT 9.05 TLG 229-28-022
    SHAFT 9.05 TLG 229-28-022
  • 16
    1500607 WIRE RING
    WIRE RING
  • 17
    1500585 GUIDE-SPRING
    GUIDE-SPRING
  • 18
    1500711 BODY 204-23-030
    BODY 204-23-030
  • 19
    1500602 ASM-BODY CAP
    ASM-BODY CAP
