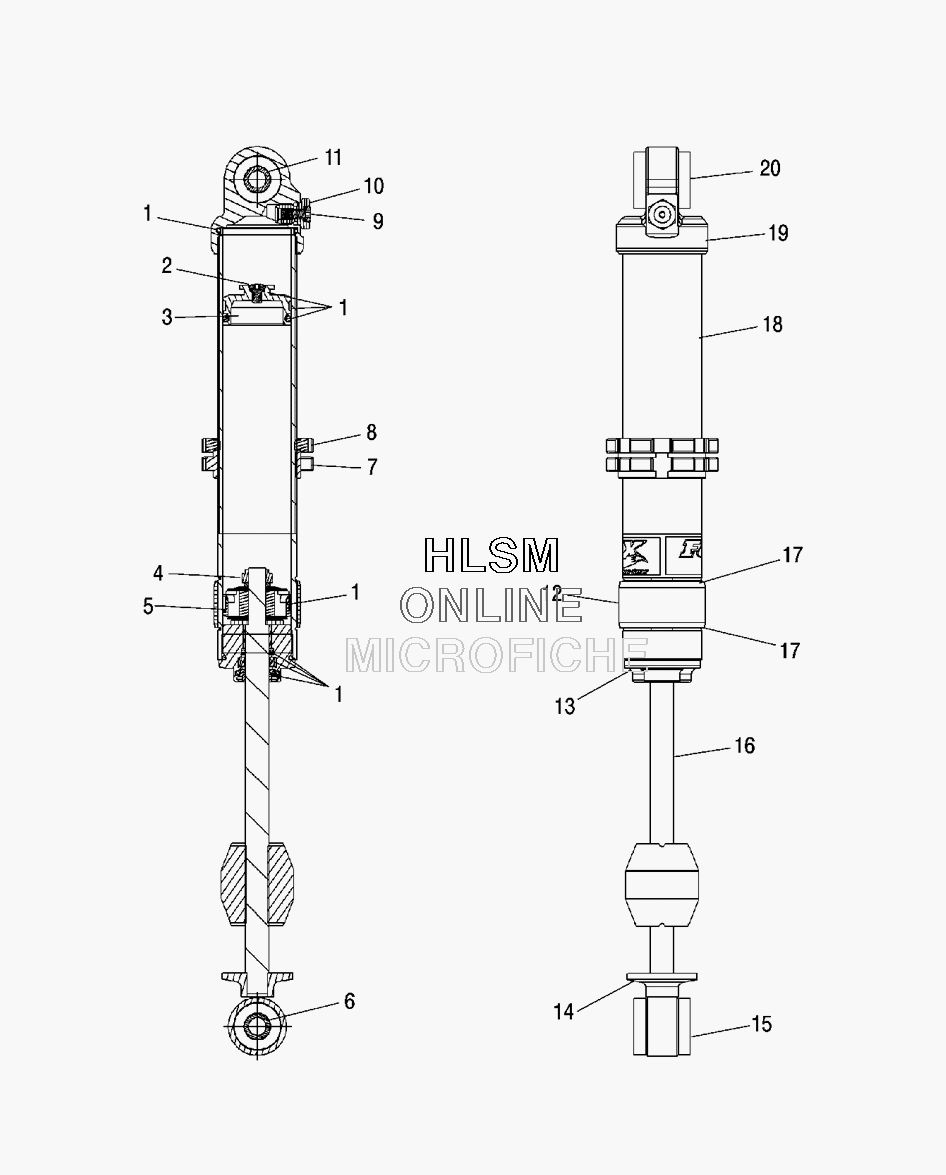

SUSPENSION - FRONT SHOCK TRACK для Polaris 600 CLEANFIRE SWITCHBACK AND STOCK A/B (S07PS6HS/HAS/HSB) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1500710 KIT-REBUILD 803-00-101
    KIT-REBUILD 803-00-101
  • 2
    1500161 SCREW/O-RING ASM.
    SCREW/O-RING ASM.
  • 3
    1500601 ASM-IFP
    ASM-IFP
  • 4
    1500016 NUT, LOCK
    NUT, LOCK
  • 5
    1500010 PISTON ASSY. KIT
    PISTON ASSY. KIT
  • 6
    5020640 BUSHING, (1.24)
    BUSHING, (1.24)
  • 7
    1500707 RING, SPRING PRELOAD 234-00-126
    RING, SPRING PRELOAD 234-00-126
  • 8
    1500708 RING, SPRING PRELOAD 234-00-127
    RING, SPRING PRELOAD 234-00-127
  • 9
    1500019 SCREW
    SCREW
  • 10
    1500014 VALVE ASM, AIR
    VALVE ASM, AIR
  • 11
    1500714 SLEEVE 213-01-113
    SLEEVE 213-01-113
  • 12
    1500585 GUIDE-SPRING
    GUIDE-SPRING
  • 13
    1500545 RETAINER RING
    RETAINER RING
  • 14
    1500164 EYELET, BASE
    EYELET, BASE
  • 15
    1500184 BUSHING-EYELET.35X.575X.595FOX
    BUSHING-EYELET.35X.575X.595FOX
  • 16
    1500713 SHAFT 6.45TLG 229-28-045
    SHAFT 6.45TLG 229-28-045
  • 17
    1500607 WIRE RING
    WIRE RING
  • 18
    1500712 BODY 204-23-029
    BODY 204-23-029
  • 19
    1500602 ASM-BODY CAP
    ASM-BODY CAP
  • 20
    1500308 BUSHING, .35ILG, .82TLG
    BUSHING, .35ILG, .82TLG
