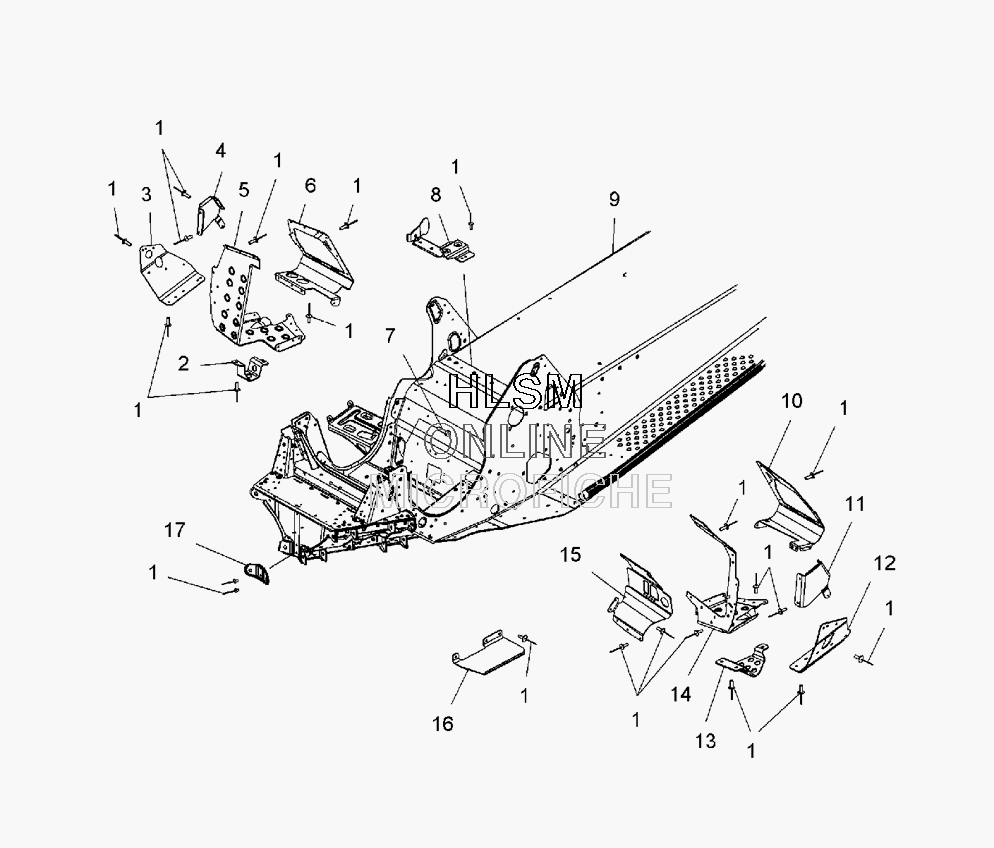

CHASSIS - FOOTREST для Polaris 600 CLEANFIRE SWITCHBACK AND STOCK A/B (S07PS6HS/HAS/HSB) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 2
    5248945 LEG-SUPPORT, RIGHT HAND
    LEG-SUPPORT, RIGHT HAND
  • 3
    5248808 SUPPORT-FOOTREST, LOWER, RIGHT HAND
    SUPPORT-FOOTREST, LOWER, RIGHT HAND
  • 4
    5248402 SUPPORT-FOOTREST, BUMPER, RIGHT HAND
    SUPPORT-FOOTREST, BUMPER, RIGHT HAND
  • 5
    1015670 ASM-FOOTREST W/STUD, RIGHT HAND
    ASM-FOOTREST W/STUD, RIGHT HAND
  • 6
    5248477 TOECLIP-RIGHT HAND
    TOECLIP-RIGHT HAND
  • 7
    7517810 SCR, 5/16X24X3/4 TRXPNHD
    SCR, 5/16X24X3/4 TRXPNHD
  • 8
    5249094 BRKT-OIL BOTTLE, LOWER
    BRKT-OIL BOTTLE, LOWER
  • 9
    1015409-309 ASM-CHASSIS RC 6, 144, S/B
    ASM-CHASSIS RC 6, 144, S/B
  • 10
    5248476 TOECLIP-LEFT HAND
    TOECLIP-LEFT HAND
  • 11
    5248401 SUPPORT-FOOTREST, BUMPER, LEFT HAND
    SUPPORT-FOOTREST, BUMPER, LEFT HAND
  • 12
    5248807 SUPPORT-FOOTREST, LOWER, LEFT HAND
    SUPPORT-FOOTREST, LOWER, LEFT HAND
  • 13
    5248403 LEG-SUPPORT, LEFT HAND
    LEG-SUPPORT, LEFT HAND
  • 14
    1015583 ASM-FOOTREST W/STUD, LEFT HAND
    ASM-FOOTREST W/STUD, LEFT HAND
  • 15
    5247420 BRACKET, CLUTCH-GUARD
    BRACKET, CLUTCH-GUARD
  • 16
    5249757 GUARD-BELT
    GUARD-BELT
  • 17
    5247372 BRACE-FRT LOWER A-ARM
    BRACE-FRT LOWER A-ARM
