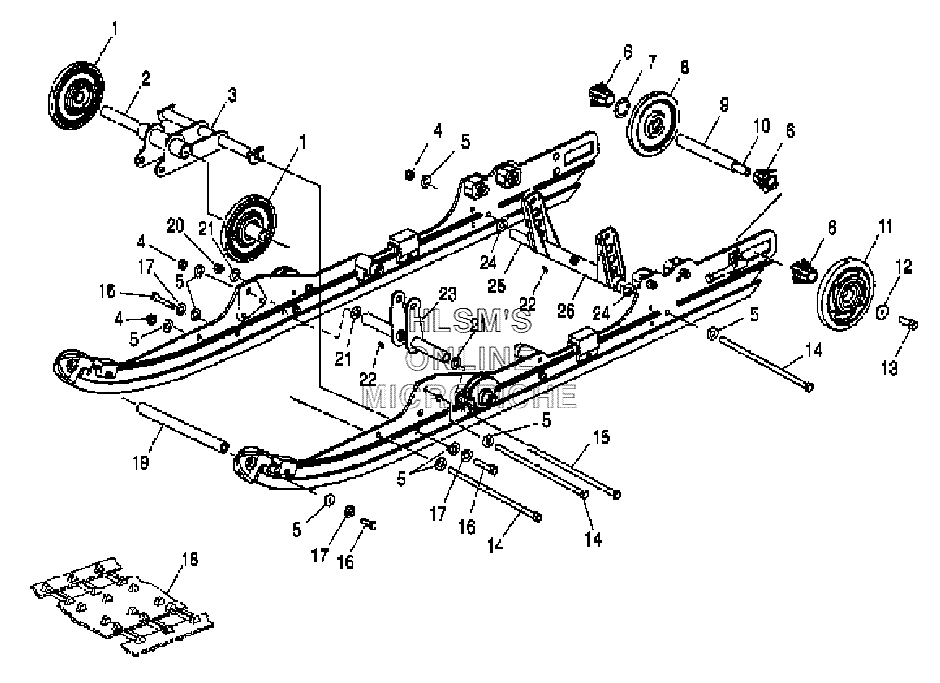

SUSPENSION/TRACK для Polaris 340 EDGE TOURING (S07NT3AS) - 2007 года выпуска`
-
№АртикулНазвание
-
11590344 WHEEL ASSY., W/HOLEWHEEL ASSY., W/HOLE
-
25132490 SHAFTSHAFT
-
31541780-067 WELD-MOUNT, SHOCK (BLACK)WELD-MOUNT, SHOCK (BLACK)
-
47542439 NUT, NYLOKNUT, NYLOK
-
57555806 WASHER, FLATWASHER, FLAT
-
65432535 SPACER, IDLERSPACER, IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL ASSY., PLAIN (6.38 O.D.)WHEEL ASSY., PLAIN (6.38 O.D.)
-
95333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
111590303-244 WHEEL IDLER ASSY. (SILVER METAL)WHEEL IDLER ASSY. (SILVER METAL)
-
117710444 RING, RETAININGRING, RETAINING
-
113514384 BEARINGBEARING
-
127556130 WASHERWASHER
-
137517731 BOLTBOLT
-
147517921 SCREWSCREW
-
157517207 SCREWSCREW
-
167517247 SCREWSCREW
-
177552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
185413070 TRACKTRACK
-
185250432 TRACK, CLIPSTRACK, CLIPS
-
195020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
207547064 NUT, NYLOKNUT, NYLOK
-
217555958 WASHER, FLATWASHER, FLAT
-
227080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
231541687-067 WELD-SHOCK PIVOT ARM (BLACK)WELD-SHOCK PIVOT ARM (BLACK)
-
247555893 WASHER, FLATWASHER, FLAT
-
255334026 SHAFTSHAFT
-
261541707-067 WELD-ARM, PIVOT (REAR/BLACK)WELD-ARM, PIVOT (REAR/BLACK)
