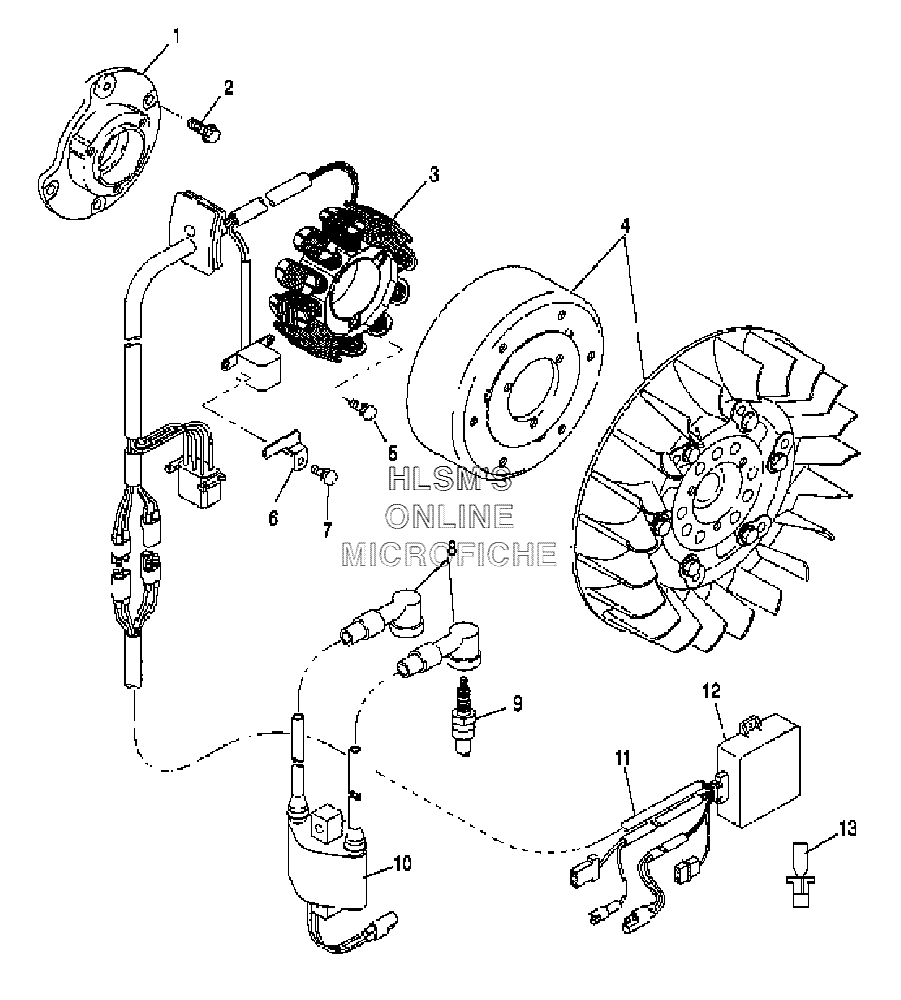

GENERATOR ASSEMBLY для Polaris 340 EDGE TOURING (S07NT3AS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3089477 PLATE, MAGNETO
    PLATE, MAGNETO
  • 2
    3089476 BOLT, FLANGE
    BOLT, FLANGE
  • 3
    3089472 STATOR ASSY.
    STATOR ASSY.
  • 4
    3089475 FLYWHEEL ASSY.
    FLYWHEEL ASSY.
  • 5
    3085697 SCREW AND WASHER ASSY.
    SCREW AND WASHER ASSY.
  • 6
    3089479 CLAMP
    CLAMP
  • 7
    3085698 SCREW AND WASHER ASSY.
    SCREW AND WASHER ASSY.
  • 8
    4020129 RESISTOR PLUG CAP
    RESISTOR PLUG CAP
  • 9
    3070156 PLUG, SPARK, NGK BR8ES
    PLUG, SPARK, NGK BR8ES
  • 10
    3089478 IGNITION COIL ASSY. (INCL. 8)
    IGNITION COIL ASSY. (INCL. 8)
  • 11
    3087219 UNIT-HARNESS
    UNIT-HARNESS
  • 12
    3089473 CDI SYSTEM ASSY. (INCL. 11)
    CDI SYSTEM ASSY. (INCL. 11)
  • 13
    2461060 JUMPER-STUBBER
    JUMPER-STUBBER
