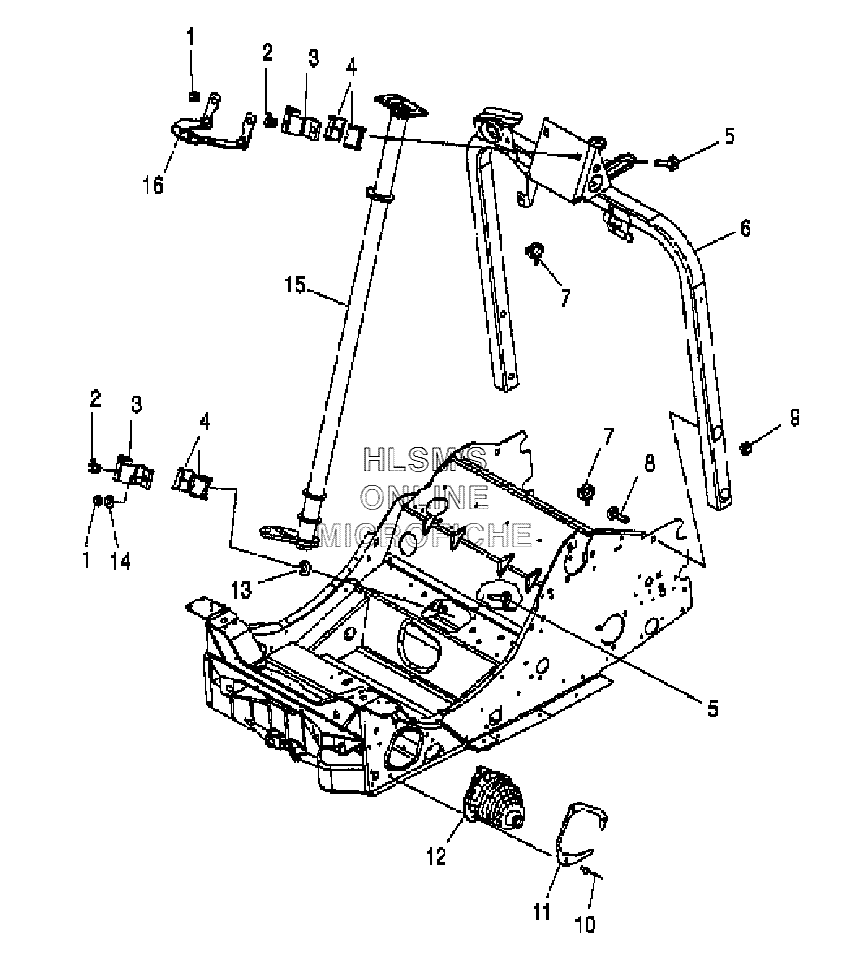

STEERING POST - HOOP для Polaris 340 EDGE TOURING (S07NT3AS) - 2007 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 2
    7080510 FITTING, ZERK, 90 DEGREE
    FITTING, ZERK, 90 DEGREE
  • 3
    5133648 BRACKET-STEERING POST
    BRACKET-STEERING POST
  • 4
    5432785 BUSHING
    BUSHING
  • 5
    7517579 BOLT-CARRIER
    BOLT-CARRIER
  • 6
    1013804-067 WELD-HOOP, STEERING (BLACK)
    WELD-HOOP, STEERING (BLACK)
  • 7
    4020139 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 8
    7512377 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 9
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 10
    7621433 RIVET
    RIVET
  • 11
    5244470 PLATE, TIE ROD BOOT
    PLATE, TIE ROD BOOT
  • 12
    5433532 BOOT, TIE ROD (LEFT)
    BOOT, TIE ROD (LEFT)
  • 12
    5433533 BOOT, TIE ROD (RIGHT)
    BOOT, TIE ROD (RIGHT)
  • 13
    7547030 PALNUT
    PALNUT
  • 14
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 15
    1820965-067 WELD-POST, STEERING (BLACK)
    WELD-POST, STEERING (BLACK)
  • 16
    5245354 BRACKET-CONSOLE, FRONT NECK
    BRACKET-CONSOLE, FRONT NECK
