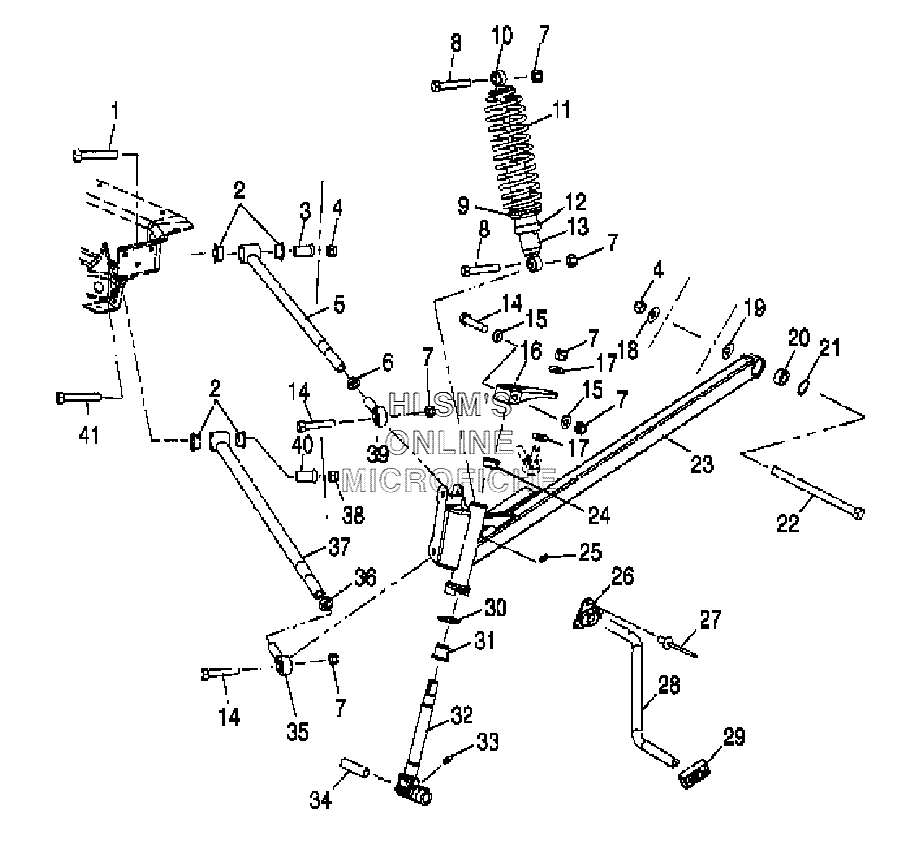

SUSPENSION - FRONT W/ STEERING для Polaris 340 EDGE TOURING (S07NT3AS) - 2007 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7517980 BOLT
    BOLT
  • 2
    5434036 BUSHING, PIVOT (INNER)
    BUSHING, PIVOT (INNER)
  • 3
    5132779 BUSHING-SHOULDER
    BUSHING-SHOULDER
  • 4
    7547066 NUT
    NUT
  • 5
    1820679-067 RADIUS ROD (UPPER/BLACK)
    RADIUS ROD (UPPER/BLACK)
  • 6
    7542520 NUT, JAM
    NUT, JAM
  • 7
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 8
    7515433 SCREW
    SCREW
  • 9
    5431734 RING, SPRING PRELOAD ADJ.
    RING, SPRING PRELOAD ADJ.
  • 10
    5630580 RETAINER, SPRING, SLOTTED
    RETAINER, SPRING, SLOTTED
  • 11
    7041551-067 SPRING-COMP, IFS (BLACK)
    SPRING-COMP, IFS (BLACK)
  • 12
    1500063 RETAINER, SPRING, BODY
    RETAINER, SPRING, BODY
  • 13
    7041932 SHOCK-IFS
    SHOCK-IFS
  • 14
    7517583 SCREW
    SCREW
  • 15
    7555832 WASHER
    WASHER
  • 16
    5132728 ARM-STEERING, MACHINED
    ARM-STEERING, MACHINED
  • 17
    7555797 WASHER, FLAT
    WASHER, FLAT
  • 18
    7555820 WASHER, FLAT
    WASHER, FLAT
  • 19
    5132364 CUP, TRAILING ARM MOUNT
    CUP, TRAILING ARM MOUNT
  • 20
    7061042 BEARING-SPHERICAL
    BEARING-SPHERICAL
  • 21
    7710437 RING, RETAINING
    RING, RETAINING
  • 22
    7512099 SCREW
    SCREW
  • 23
    1821165-385 TRAILING ARM ASSY., (CLOUD SILVER) (INCL. 20, 21)
    TRAILING ARM ASSY., (CLOUD SILVER) (INCL. 20, 21)
  • 23
    1821166-385 TRAILING ARM ASSY. (CLOUD SILVER) (INCL. 20, 21)
    TRAILING ARM ASSY. (CLOUD SILVER) (INCL. 20, 21)
  • 24
    3573909 BUSHING-FLANGE
    BUSHING-FLANGE
  • 25
    7080433 FITTING, LUBRICATION, THREADED
    FITTING, LUBRICATION, THREADED
  • 26
    5433234 BUSHING-TORSION BAR
    BUSHING-TORSION BAR
  • 27
    7621452 RIVET
    RIVET
  • 28
    5244415-067 BAR, TORSION (1/2, 42.5) (BLACK)
    BAR, TORSION (1/2, 42.5) (BLACK)
  • 29
    5434369 SLIDE-TORSION BAR (1/2)
    SLIDE-TORSION BAR (1/2)
  • 30
    7556509 BUSHING
    BUSHING
  • 31
    3574208 BUSHING, FLANGED
    BUSHING, FLANGED
  • 32
    6230225-067 SHAFT-SPINDLE, W/STEER STOP (BLACK)
    SHAFT-SPINDLE, W/STEER STOP (BLACK)
  • 33
    7080306 FITTING, LUBE W/BALL CHECK
    FITTING, LUBE W/BALL CHECK
  • 34
    5010158 BUSHING, PIVOT
    BUSHING, PIVOT
  • 35
    7061060 ROD END, RADIUS (1/2)
    ROD END, RADIUS (1/2)
  • 36
    7542711 NUT-JAM
    NUT-JAM
  • 37
    1820677-067 RADIUS ROD (LOWER/BLACK)
    RADIUS ROD (LOWER/BLACK)
  • 38
    7547065 NUT
    NUT
  • 39
    7061061 ROD END, RADIUS
    ROD END, RADIUS
  • 40
    5132780 BUSHING-SHOULDER
    BUSHING-SHOULDER
  • 41
    7512684 BOLT
    BOLT
