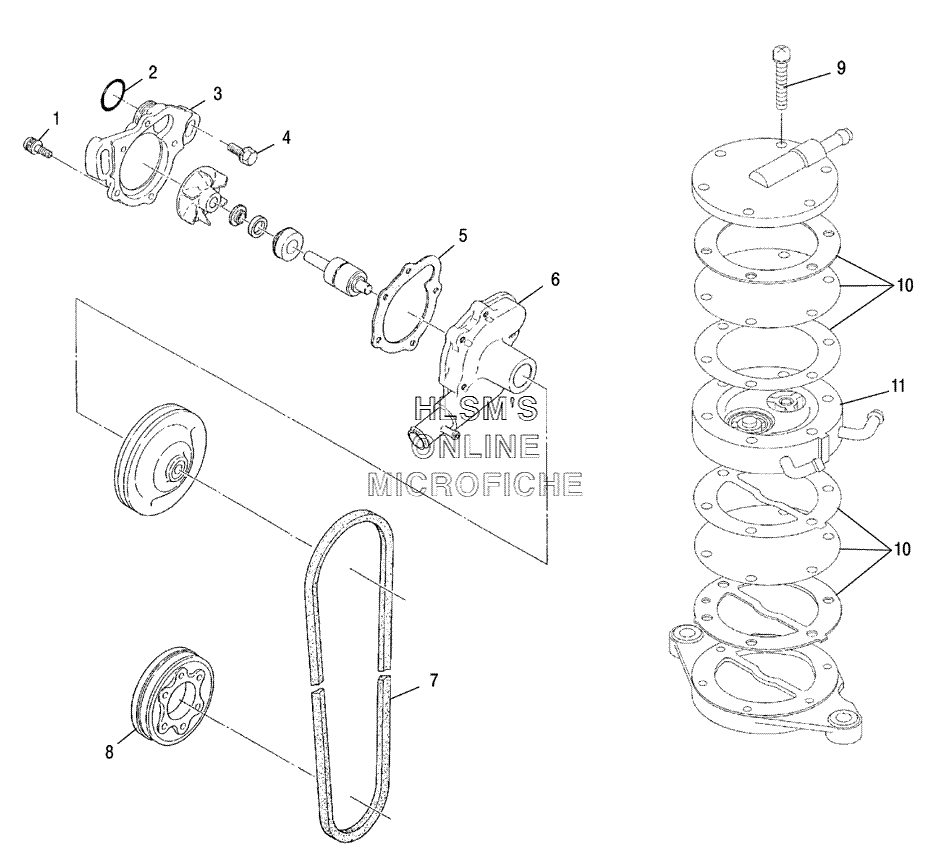

WATER PUMP/FUEL PUMP для Polaris WideTrak LX (S06SU4BS) - 2006 года выпуска`
-
№АртикулНазвание
-
13084221 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
23082746 O-RINGO-RING
-
33083683 CASING, PUMP 2CASING, PUMP 2
-
43083370 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
53083367 GASKET, WATER PUMPGASKET, WATER PUMP
-
63083471 PUMP, WATER (INCL. 1-3, 5)PUMP, WATER (INCL. 1-3, 5)
-
73082747 BELTBELT
-
83083371 PULLEY (DRIVE)PULLEY (DRIVE)
-
93081286 SCREW WITH WASHERSCREW WITH WASHER
-
103084222 DIAPHRAGM GASKET ASSYDIAPHRAGM GASKET ASSY
