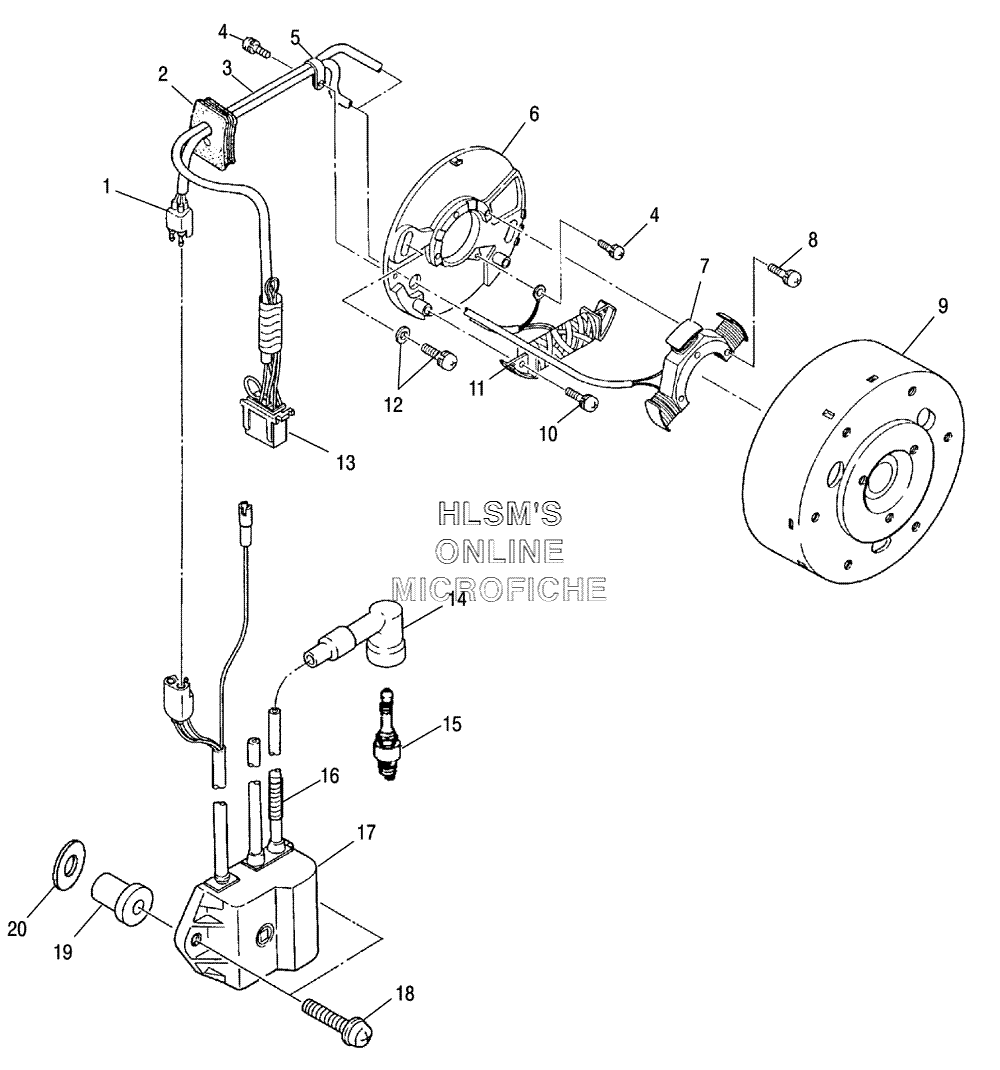

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris WideTrak LX (S06SU4BS) - 2006 года выпуска`
-
№АртикулНазвание
-
13083909 COUPLERCOUPLER
-
23082969 GROMMETGROMMET
-
33087007 HARNESS-WIRE (INCL. 2)HARNESS-WIRE (INCL. 2)
-
43081260 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
53081296 CLAMPCLAMP
-
63087262 PLATE, COILPLATE, COIL
-
63087004 PLATE ASSY (INCL. 1-8, 10, 11, 13)PLATE ASSY (INCL. 1-8, 10, 11, 13)
-
63083987 PLATE, COILPLATE, COIL
-
73083991 STATOR 1STATOR 1
-
83082365 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
93087005 FLYWHEEL ASSYFLYWHEEL ASSY
-
103083423 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
113083984 COIL, EXCITERCOIL, EXCITER
-
123082175 SCREWANDWASHER ASSYSCREWANDWASHER ASSY
-
133081513 COUPLER, MALECOUPLER, MALE
-
144020129 RESISTOR PLUG CAPRESISTOR PLUG CAP
-
153070166 SPARKPLUG (RN3C)SPARKPLUG (RN3C)
-
165521516-10 TUBING CONVOLUTED (10CM)TUBING CONVOLUTED (10CM)
-
173087006 COIL IGNITIONCOIL IGNITION
-
183083784 SCREW AND WASHERSCREW AND WASHER
-
193083240 NUT RUBBERNUT RUBBER
-
203087008 WASHERWASHER
