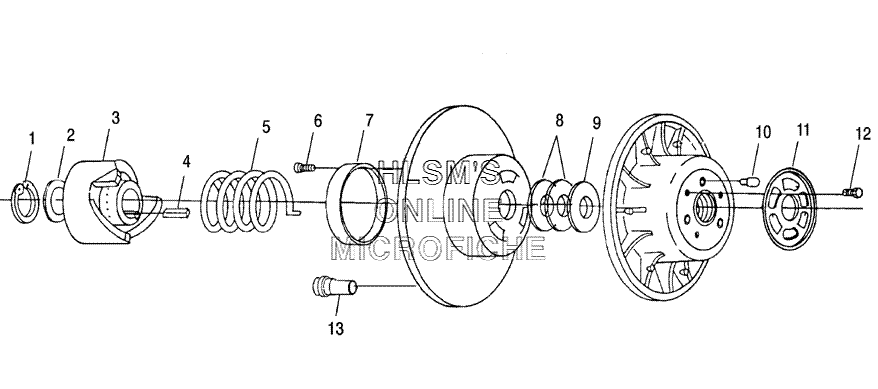

CLUTCH - DRIVEN для Polaris WideTrak LX (S06SU4BS) - 2006 года выпуска
-
№АртикулНазвание
-
17714804 RING, RETAININGRING, RETAINING
-
27556804 WASHERWASHER
-
35130895 RAMP, DRIVEN (36 DEGREE)RAMP, DRIVEN (36 DEGREE)
-
47721133 KEY (1/4X3/16X1.75'')KEY (1/4X3/16X1.75'')
-
57041499 SPRING, CLUTCHSPRING, CLUTCH
-
67512048 SCREWSCREW
-
73569803 BUSHING DRIVEN LARGEBUSHING DRIVEN LARGE
-
87556804 WASHERWASHER
-
87556076 WASHERWASHER
-
87555898 WASHERWASHER
-
97555865 WASHERWASHER
-
105020653 PIN, ADJUSTABLE DRIVENPIN, ADJUSTABLE DRIVEN
-
115222878 CAM, DRIVEN, ADJUSTABLECAM, DRIVEN, ADJUSTABLE
-
127515133 SCREWSCREW
-
135430466 BUTTON RAMPBUTTON RAMP
-
-2873908 DRIVEN CLUTCH (INCL. ALL LESS 3, 5)DRIVEN CLUTCH (INCL. ALL LESS 3, 5)
