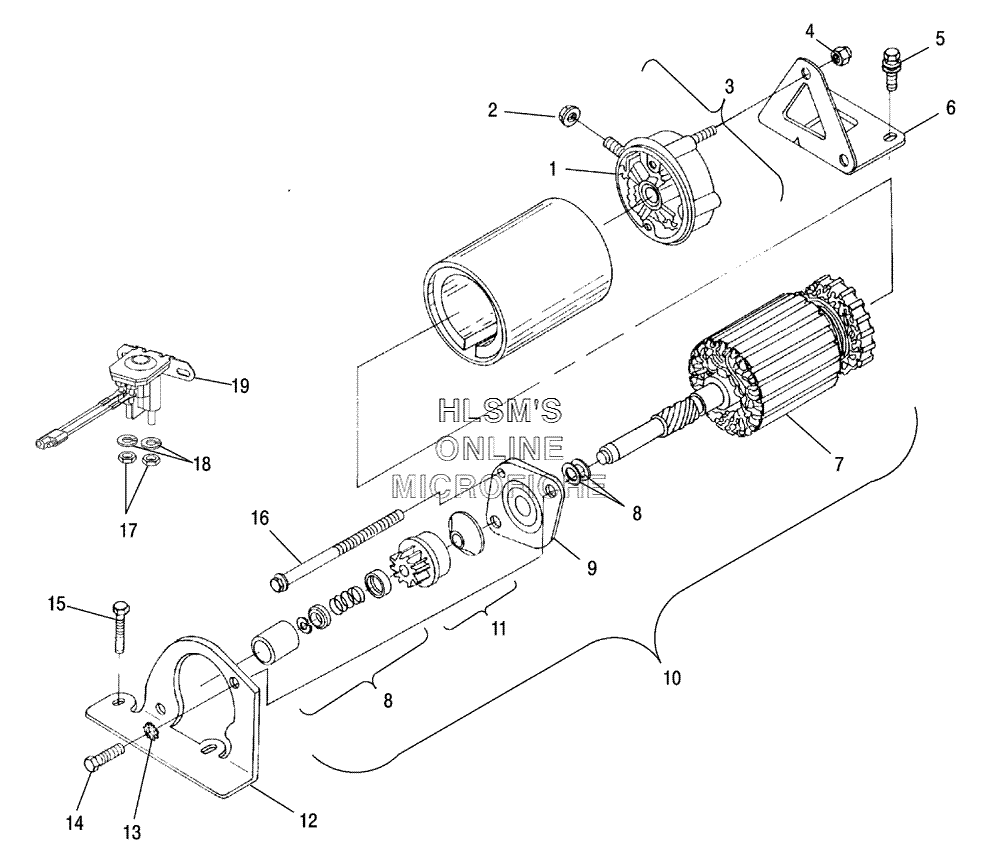

STARTING MOTOR для Polaris WideTrak LX (S06SU4BS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    2200759 BRUSH AND SPRING KIT
    BRUSH AND SPRING KIT
  • 2
    7542103 NUT, FLEXLOC
    NUT, FLEXLOC
  • 3
    2200758 COMMUTATOR CAP ASSY KIT (INCL. 1)
    COMMUTATOR CAP ASSY KIT (INCL. 1)
  • 4
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 5
    7516815 SCREW
    SCREW
  • 6
    5240956 BRACKET STARTER (REAR)
    BRACKET STARTER (REAR)
  • 7
    2200756 ARMATURE ASSY KIT
    ARMATURE ASSY KIT
  • 8
    2200755 DRIVE HARDWARE KIT
    DRIVE HARDWARE KIT
  • 9
    2200757 DRIVECAP ASSY KIT
    DRIVECAP ASSY KIT
  • 10
    4170006 MOTOR, STARTER, DOMESTIC
    MOTOR, STARTER, DOMESTIC
  • 11
    2200754 DRIVE ASSY KIT
    DRIVE ASSY KIT
  • 12
    5241271 BRACKET, STARTER (FRONT)
    BRACKET, STARTER (FRONT)
  • 13
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 14
    7512492 SCREW
    SCREW
  • 15
    7516730 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 16
    2200753 SCREW KIT
    SCREW KIT
  • 17
    7542105 NUT HEXAGON
    NUT HEXAGON
  • 18
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 19
    4011335 SWITCH MAGNETIC (INCL. 17, 18)
    SWITCH MAGNETIC (INCL. 17, 18)
