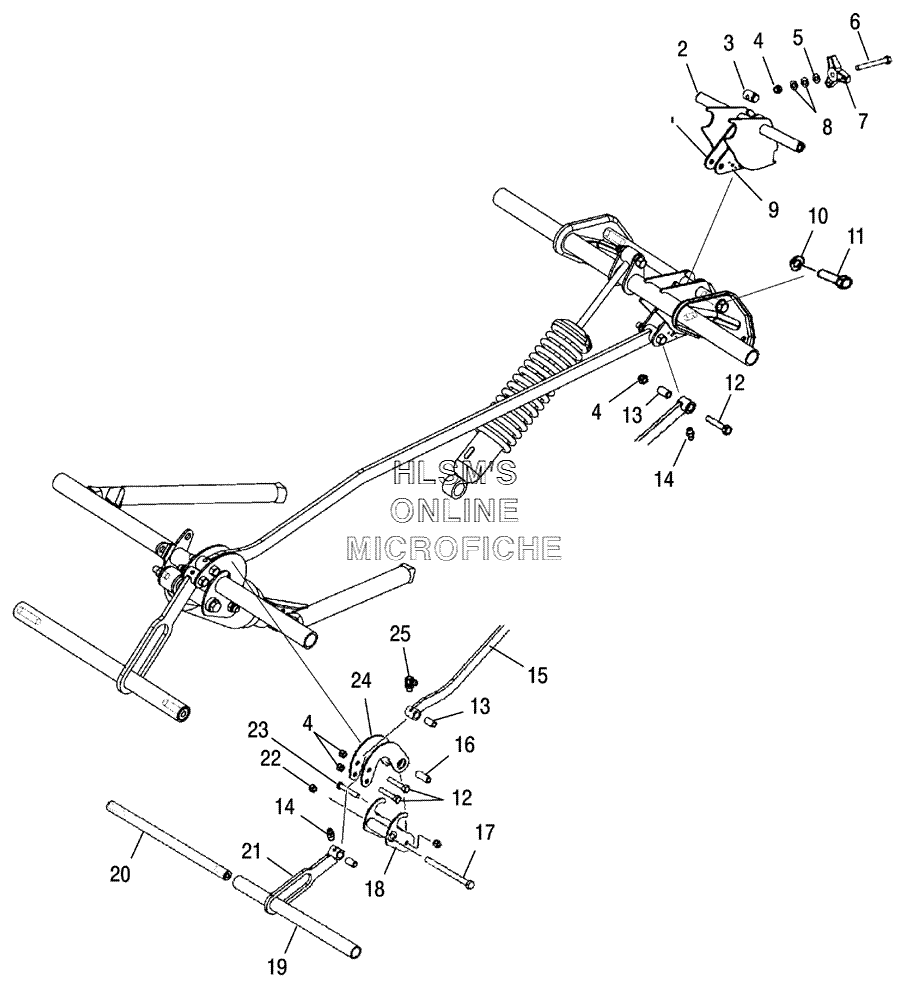

SUSPENSION COUPLER - REAR для Polaris WideTrak LX (S06SU4BS) - 2006 года выпуска`
-
№АртикулНазвание
-
15244982 ARM ADJUSTMENT (RIGHT/INNER)ARM ADJUSTMENT (RIGHT/INNER)
-
21013387 WELD ADJUSTERWELD ADJUSTER
-
35132761 SHAFT ADJUSTERSHAFT ADJUSTER
-
47542324 NUT, NYLOKNUT, NYLOK
-
57552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
67517877 BOLTBOLT
-
75630386-067 KNOB, BACKRESTKNOB, BACKREST
-
87555770 WASHER, FLATWASHER, FLAT
-
95244981 ARM ADJUSTMENT (LEFT/INNER)ARM ADJUSTMENT (LEFT/INNER)
-
107552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
117517247 SCREWSCREW
-
127512329 BOLTBOLT
-
135132759 BUSHINGBUSHING
-
147080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
151013391 WELD COUPLER BARWELD COUPLER BAR
-
165132760 BUSHINGBUSHING
-
177517507 BOLTBOLT
-
181013587 COUPLER OUTSIDECOUPLER OUTSIDE
-
195433977 SLEEVE PILOT SHAFTSLEEVE PILOT SHAFT
-
205132742 SHAFT PIVOT (.750X13.235)SHAFT PIVOT (.750X13.235)
-
211013390 WELD CLEVISWELD CLEVIS
-
227542459 NUT, FLANGEDNUT, FLANGED
-
237517876 BOLTBOLT
-
241013389 WELD COUPLER LINK, INSIDEWELD COUPLER LINK, INSIDE
-
257080510 FITTING, ZERK (90 DEGREE)FITTING, ZERK (90 DEGREE)
