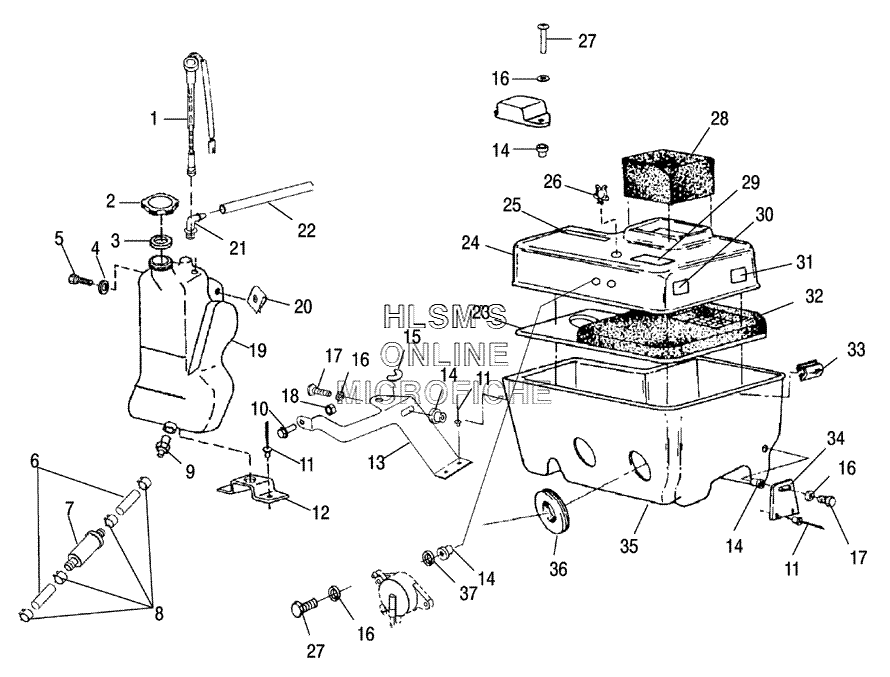

OIL TANK W/ AIR BOX ASSEMBLY для Polaris WideTrak LX (S06SU4BS) - 2006 года выпуска`
-
№АртикулНазвание
-
14040040 SENSOR, OIL LEVEL WITH CONNECTORSENSOR, OIL LEVEL WITH CONNECTOR
-
25430779 CAP, OIL TANKCAP, OIL TANK
-
35810141 GASKET OIL CAPGASKET OIL CAP
-
47558302 WASHER, WROUGHTWASHER, WROUGHT
-
57512276 BOLTBOLT
-
68450003-1525 LINE, FUEL (1525 CM.)LINE, FUEL (1525 CM.)
-
72530009 FILTER, SMALL, IN-LINEFILTER, SMALL, IN-LINE
-
87080307 CLAMP, HOSECLAMP, HOSE
-
97052042 FITTING, OUTLETFITTING, OUTLET
-
107517298 SCREWSCREW
-
117661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
125241334 BRACKET, OIL TANKBRACKET, OIL TANK
-
135241792-067 BRACKET, SIL./REM. FILLERBRACKET, SIL./REM. FILLER
-
147541923 NUT WELLNUT WELL
-
157072151 WASHERWASHER
-
167552604 WASHERWASHER
-
177512279 SCREWSCREW
-
187542122 NUT NYLOKNUT NYLOK
-
195430997 TANK, OILTANK, OIL
-
207670096 NUTNUT
-
217052095 FITTING (90 DEG) (1/8)FITTING (90 DEG) (1/8)
-
228450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
235850075 PLATE, AIR SILENCERPLATE, AIR SILENCER
-
245434015 COVER SILENCER DRILLEDCOVER SILENCER DRILLED
-
257075359 DECALDECAL
-
264020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
277512222 SCREWSCREW
-
285811688 FOAM AIRBOX, CHIMNEYFOAM AIRBOX, CHIMNEY
-
297075351 DECAL CAUTIONDECAL CAUTION
-
307073426 DECAL, GREASINGDECAL, GREASING
-
317073820 DECAL ADJUST DRIVE CLUTCH DISCDECAL ADJUST DRIVE CLUTCH DISC
-
321253102 BAFFLE ASSY (INCL. 23)BAFFLE ASSY (INCL. 23)
-
337670055 CLIP, AIR BOXCLIP, AIR BOX
-
345211274 BRACKET, SILENCERBRACKET, SILENCER
-
355432647 SILENCER, INT. MOD, DRILLEDSILENCER, INT. MOD, DRILLED
-
365410403 BOOTBOOT
-
377555843 WASHER, WROUGHTWASHER, WROUGHT
