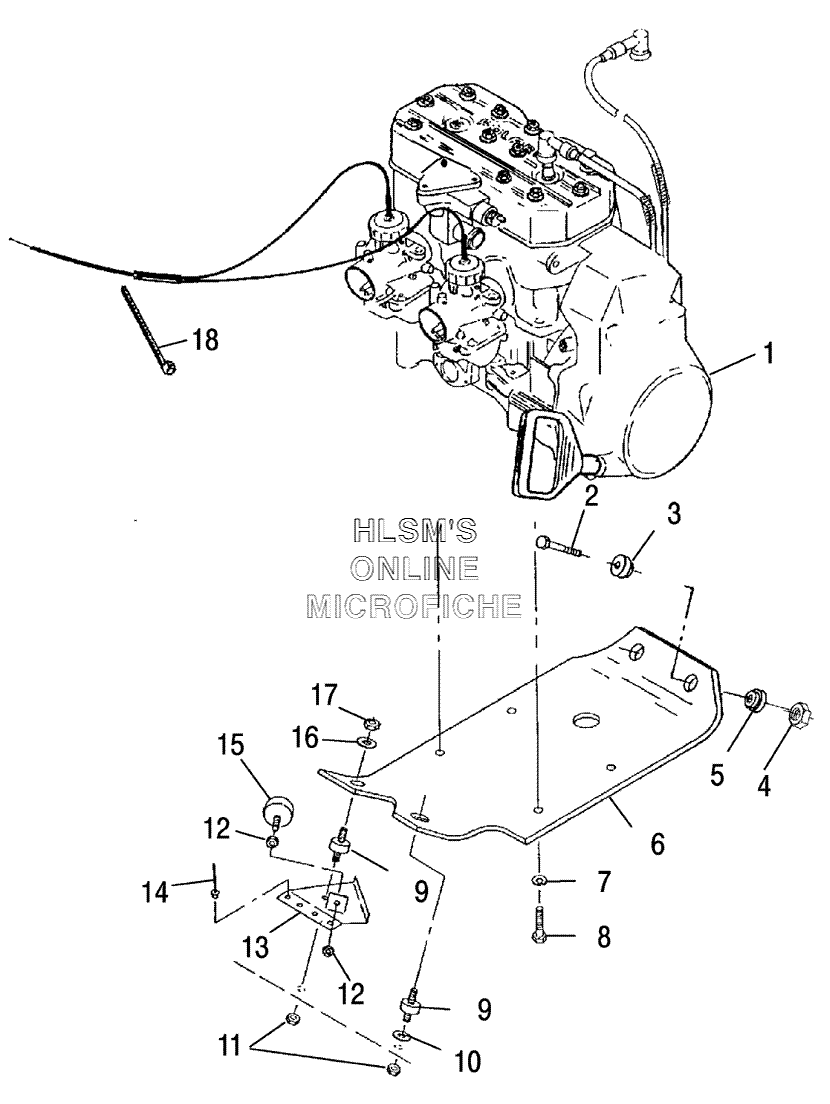

ENGINE MOUNTING W/ SHORT BLOCK для Polaris WideTrak LX (S06SU4BS) - 2006 года выпуска`
-
№АртикулНазвание
-
13086509 SHORT BLOCK (SEE NOTE)SHORT BLOCK (SEE NOTE)
-
27512530 SCREWSCREW
-
35411685 MOUNT ENGINE RUBBER (TOP)MOUNT ENGINE RUBBER (TOP)
-
47542522 NUT, FLANGENUT, FLANGE
-
55411686 MOUNT ENGINE RUBBER (BOTTOM)MOUNT ENGINE RUBBER (BOTTOM)
-
65242496 PLATE, MOTOR MOUNTPLATE, MOTOR MOUNT
-
77553101 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
87512539 BOLTBOLT
-
93110061 MOUNT, ENGINEMOUNT, ENGINE
-
107555915 WASHER, FLATWASHER, FLAT
-
117542451 NUT, NYLOKNUT, NYLOK
-
127542414 NUT, HEXAGONNUT, HEXAGON
-
131012048-067 LIMITER, TORQUE (BLACK)LIMITER, TORQUE (BLACK)
-
147661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
153110063 STOP, TORQUE, COARSE (1.94 DIA)STOP, TORQUE, COARSE (1.94 DIA)
-
167555893 WASHER, FLATWASHER, FLAT
-
177547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
187080138 CABLE TIECABLE TIE
