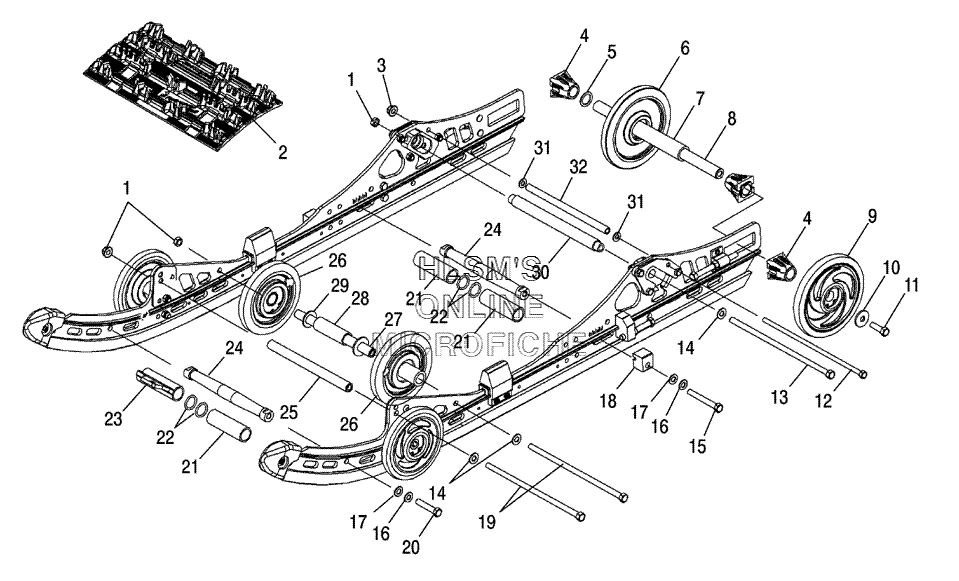

SUSPENSION - REAR - M10 для Polaris 900 Fusion (S06MP8DS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7547263 NUT NYLOK
    NUT NYLOK
  • 2
    5412616 TRACK RIP SAW (15X128'', 1.25)
    TRACK RIP SAW (15X128'', 1.25)
  • 2
    5222840 CLIP, GUIDE
    CLIP, GUIDE
  • 3
    7547064 NUT, NYLOK
    NUT, NYLOK
  • 4
    5432535 SPACER, IDLER
    SPACER, IDLER
  • 5
    7555918 BUSHING
    BUSHING
  • 6
    1594087 WHEEL, PLAIN ASSY (6.38 O.D.)
    WHEEL, PLAIN ASSY (6.38 O.D.)
  • 7
    5333285 SPACER, IDLER, LONG
    SPACER, IDLER, LONG
  • 8
    5020744 SHAFT, IDLER
    SHAFT, IDLER
  • 9
    1590303-293 WHEEL, IDLER ASSY (RED)
    WHEEL, IDLER ASSY (RED)
  • 9
    1590303-513 WHEEL, IDLER ASSY (BLUE)
    WHEEL, IDLER ASSY (BLUE)
  • 9
    7710444 RING, RETAINING
    RING, RETAINING
  • 9
    3514384 BEARING
    BEARING
  • 10
    7556130 WASHER
    WASHER
  • 11
    7517731 BOLT
    BOLT
  • 12
    7517896 SCREW
    SCREW
  • 13
    7517821 SCREW
    SCREW
  • 14
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 15
    7518478 SCREW
    SCREW
  • 16
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 17
    7556042 WASHER, FLAT
    WASHER, FLAT
  • 18
    5135040 BLOCK SHOCK PIVOT ADJUST
    BLOCK SHOCK PIVOT ADJUST
  • 19
    7517921 SCREW
    SCREW
  • 20
    7517857 SCREW
    SCREW
  • 21
    5333902 SPACER SHOCK CENTERING
    SPACER SHOCK CENTERING
  • 22
    5411965 O RING (.875ID X .125 DIA)
    O RING (.875ID X .125 DIA)
  • 23
    5132586 MOUNT LIMITER STRAP, ATTACH (LOWER)
    MOUNT LIMITER STRAP, ATTACH (LOWER)
  • 24
    5132793 SHAFT TAPE (RED)
    SHAFT TAPE (RED)
  • 25
    5132579 SHAFT PIVOT (LOWER)
    SHAFT PIVOT (LOWER)
  • 26
    1542211 WHEEL/SPACER ASSY (5.62 BOGIE)
    WHEEL/SPACER ASSY (5.62 BOGIE)
  • 27
    5132490 SHAFT (.390X.750X.8665)
    SHAFT (.390X.750X.8665)
  • 28
    5330394 SPACER BOGIE INNER
    SPACER BOGIE INNER
  • 29
    7556301 BUSHING
    BUSHING
  • 30
    5133093 SHAFT (LOWER)
    SHAFT (LOWER)
  • 31
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 32
    5333477-067 TUBE (.334X.50X8.515) (BLACK)
    TUBE (.334X.50X8.515) (BLACK)
