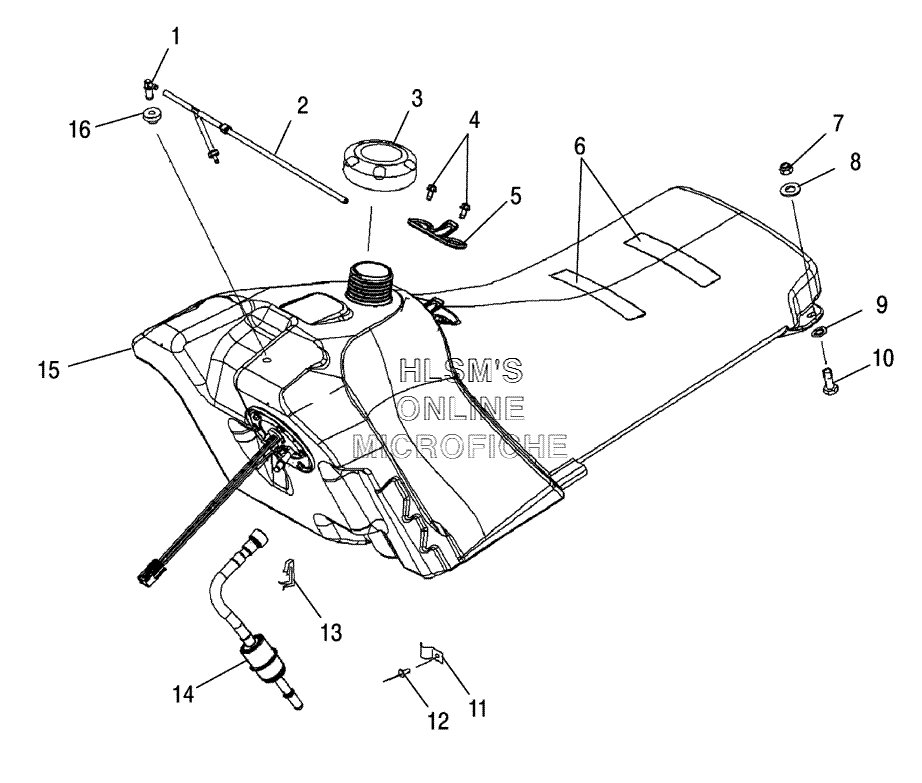

FUEL TANK для Polaris 900 Fusion (S06MP8DS) - 2006 года выпуска
-
№АртикулНазвание
-
17052380 FITTING VENT (.075X.187)FITTING VENT (.075X.187)
-
22633187 VENT, FUEL TANK ASSYVENT, FUEL TANK ASSY
-
35435534 CAP FUEL TANK, ''PREMIUM''CAP FUEL TANK, ''PREMIUM''
-
47512208 SCREWSCREW
-
55247431 BRACKET SEAT MOUNTBRACKET SEAT MOUNT
-
65810290 PAD, BATTERYPAD, BATTERY
-
77542122 NUT NYLOKNUT NYLOK
-
87555960 WASHER, FLATWASHER, FLAT
-
97670154 RETAINER BOLT (1/4-20)RETAINER BOLT (1/4-20)
-
107515203 BOLTBOLT
-
117080393 CLIP, HALFCLIP, HALF
-
127661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
137081316 CLIP SECONDARY WITHOUT TETHER (5/16)CLIP SECONDARY WITHOUT TETHER (5/16)
-
142520377 FUEL FILTER/HOSE ASSYFUEL FILTER/HOSE ASSY
-
152520639 FUEL TANK ASSY, PFA, 8 BARFUEL TANK ASSY, PFA, 8 BAR
-
167052362 GROMMET FLANGED (.36X.56X1.06)GROMMET FLANGED (.36X.56X1.06)
Все узлы модели:
- AIR INTAKE SYSTEM
- BRAKE ASSEMBLY
- BUMPER AND SIDE PANELS
- CHAINCASE ASSEMBLY
- CHASSIS - FRONT
- CHASSIS - REAR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE / THROTTLE BODY MOUNTNG
- CYLINDER ASSEMBLY
- DECAL - RACER
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING - LEFT
- ENGINE MOUNTING - RIGHT AND FRONT
- EXHAUST SYSTEM
- EXHAUST VALVE
- • FUEL TANK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HARNESS W/ ACCESSORIES
- HEADLIGHT ASSEMBLY
- HOOD - FOAM/FOIL/SCREENS
- HOOD ASSEMBLY W/ WINDSHIELD
- OIL TANK
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- RAIL ASSEMBLY W/ IDLER WHEELS - M10
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- SKI ASSEMBLY - M10
- STARTER - RECOIL ASSEMBLY
- STARTER W/ BATTERY
- STEERING ASSEMBLY
- STEERING POST ASSEMBLY
- SUSPENSION - FOX SHOCK - FRONT TRACK
- SUSPENSION - FOX SHOCK - REAR TRACK
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY - IQ
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY - M10
- SUSPENSION - REAR - IQ
- SUSPENSION - REAR - M10
- SUSPENSION - REAR TORQUE ARM ASSEMBLY - IQ
- SUSPENSION - REAR TORQUE ARM ASSEMBLY - M10
- SUSPENSION - REAR TRACK SHOCK - M10
- SUSPENSION - RYDE FX - FRONT TRACK SHOCK
- SUSPENSION - RYDE FX - IFS SHOCK
- SUSPENSION - WALKER EVANS - FRONT TRACK SHOCK
- SUSPENSION - WALKER EVANS - REAR TRACK SHOCK
- SWAY BAR
- TOOL KIT
- WATER PUMP/OIL PUMP
