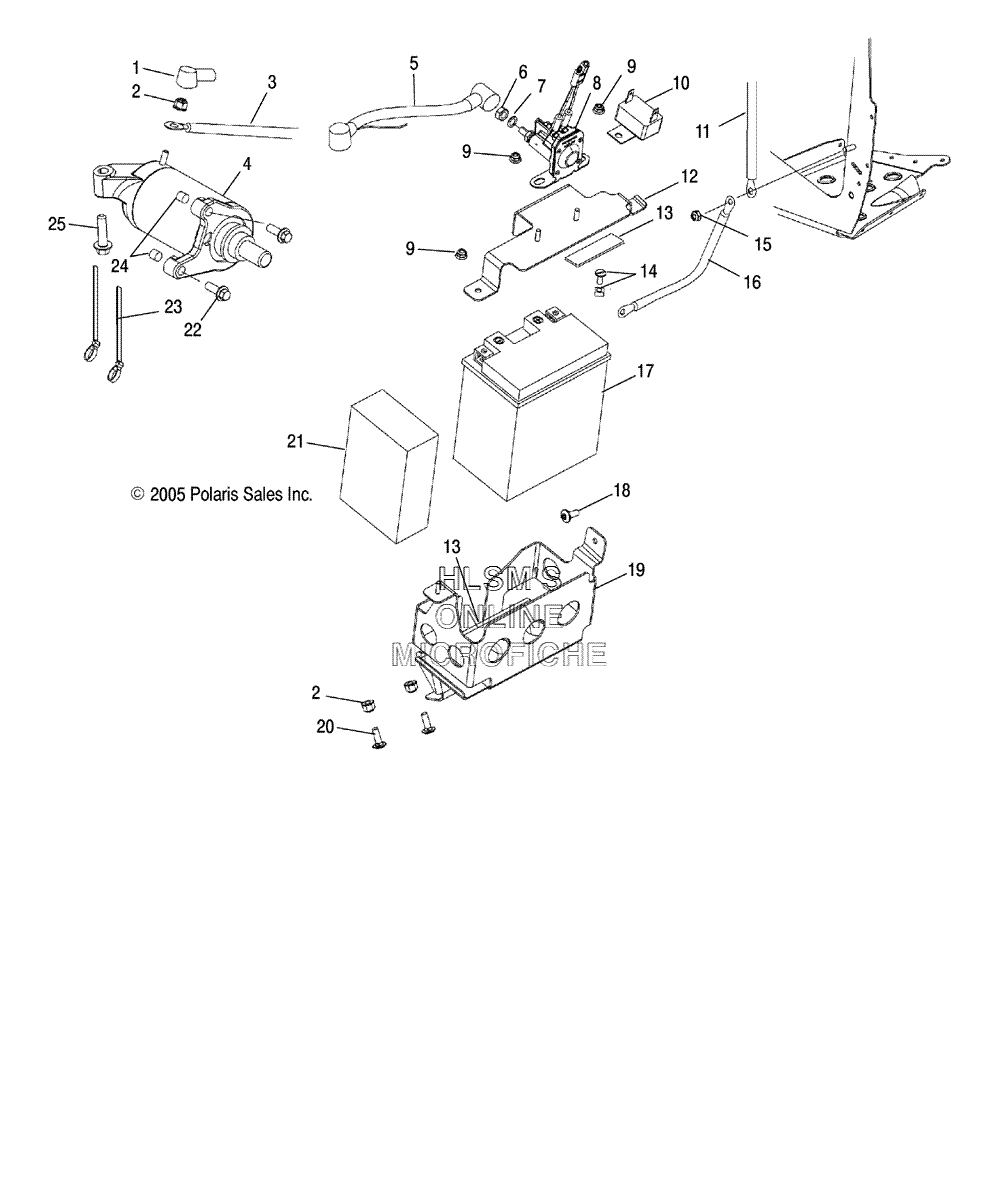

STARTER W/ BATTERY для Polaris 900 Fusion (S06MP8DS) - 2006 года выпуска
-
№АртикулНазвание
-
15410346 INSUL.CABLE SOLENOIDINSUL.CABLE SOLENOID
-
27542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
34011418 CABLE 43'' (6 GA) (RED)CABLE 43'' (6 GA) (RED)
-
44010965 STARTER MOTORSTARTER MOTOR
-
42203080 CAP PINION SPRING, STARTER KITCAP PINION SPRING, STARTER KIT
-
42203081 SPRING PINION, STARTER KITSPRING PINION, STARTER KIT
-
42203082 RETAIN RING PINION STARTER KITRETAIN RING PINION STARTER KIT
-
42203083 RETAINER PINION, STARTER KITRETAINER PINION, STARTER KIT
-
42203084 SPACER PINION, STARTER KITSPACER PINION, STARTER KIT
-
42203085 PINION OVERMOLD, STARTER KITPINION OVERMOLD, STARTER KIT
-
52460393 CABLE ASSY, SOLENOIDCABLE ASSY, SOLENOID
-
67542105 NUT HEXAGONNUT HEXAGON
-
77552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
82410437 STARTER SOLENOID, SERVICESTARTER SOLENOID, SERVICE
-
97518287 NUT NYLOK INSERTNUT NYLOK INSERT
-
102434008 BREAKER, CIRCUITBREAKER, CIRCUIT
-
114011419 CABLE 45'' (6 GA) (BLACK)CABLE 45'' (6 GA) (BLACK)
-
121015168 BATTERY BOX ASSY (UPPER)BATTERY BOX ASSY (UPPER)
-
135810290 PAD, BATTERYPAD, BATTERY
-
142202099 BATTERY BOLT KIT (30AH)BATTERY BOLT KIT (30AH)
-
157542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
164011362 CABLE GUARD (FRAME/BATTERY)CABLE GUARD (FRAME/BATTERY)
-
174010774 BATTERY 14AH, SEALED, CHARGEDBATTERY 14AH, SEALED, CHARGED
-
187515148 SCREWSCREW
-
191015024 BATTERY BOX (LOWER)BATTERY BOX (LOWER)
-
207515203 BOLTBOLT
-
215812813 SPACER BATTERY, FOAMSPACER BATTERY, FOAM
-
227518334 SCREWSCREW
-
237080761 CABLE TIE (14'')CABLE TIE (14'')
-
247663008 DOWL, HOL (M13X10)DOWL, HOL (M13X10)
-
257518333 SCREWSCREW
