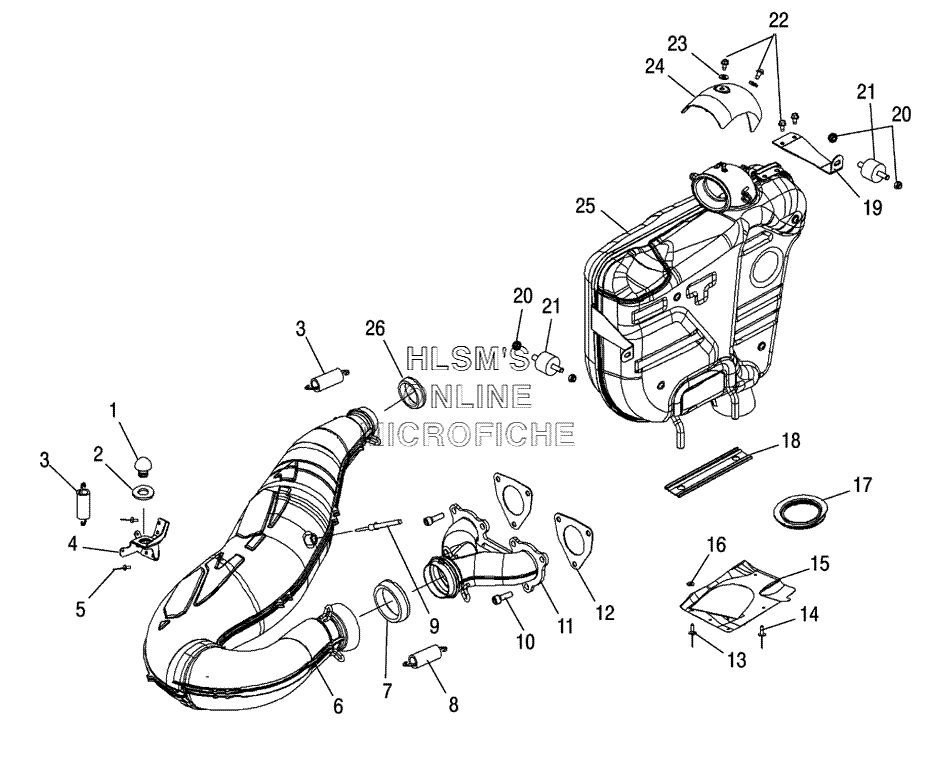

EXHAUST SYSTEM для Polaris 900 Fusion (S06MP8DS) - 2006 года выпуска`
-
№АртикулНазвание
-
15411576 DAMPENER VIBRATION WITH RIBSDAMPENER VIBRATION WITH RIBS
-
27556004 WASHERWASHER
-
37041687 SPRINGSPRING
-
41261403 BRACKET CHASSIS TUNED PIPEBRACKET CHASSIS TUNED PIPE
-
57661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
61261513 TUNED PIPE ASSYTUNED PIPE ASSY
-
67080808 CLAMP WORM DRIVE (.44WX5.5 DIA)CLAMP WORM DRIVE (.44WX5.5 DIA)
-
67080811 CLAMP WORM DRIVE (.44WX6.5 DIA)CLAMP WORM DRIVE (.44WX6.5 DIA)
-
67080812 CLAMP, WORM DRIVE (.44 X 3.75)CLAMP, WORM DRIVE (.44 X 3.75)
-
67081197 CLAMP WORM DRIVE (.44WX7.0 DIA)CLAMP WORM DRIVE (.44WX7.0 DIA)
-
65812651 MATTE TUNED PIPE (TOP)MATTE TUNED PIPE (TOP)
-
65812815 MATTE TUNED PIPE (BOTTOM)MATTE TUNED PIPE (BOTTOM)
-
65812825 MATTE TUNED PIPE (FRONT)MATTE TUNED PIPE (FRONT)
-
65247251 COVER TUNED PIPE, TOPCOVER TUNED PIPE, TOP
-
65249145 COVER TUNED PIPE (BOTTOM)COVER TUNED PIPE (BOTTOM)
-
65249262 COVER TUNED PIPE (TOP/FRONT)COVER TUNED PIPE (TOP/FRONT)
-
65249263 COVER TUNED PIPE (BOTTOM/FRONT)COVER TUNED PIPE (BOTTOM/FRONT)
-
67080739 CLAMP WORM DRIVE (.44X3.13 DIA)CLAMP WORM DRIVE (.44X3.13 DIA)
-
67080740 CLAMP WORM DRIVE (.44WX3.69DIA)CLAMP WORM DRIVE (.44WX3.69DIA)
-
67080749 CLAMP, WORM DRIVECLAMP, WORM DRIVE
-
73610113 SEAL EXHAUST, SOCKETSEAL EXHAUST, SOCKET
-
87042332 SPRINGSPRING
-
94010528 SENSOR EXHAUST TEMP (P100J BW)SENSOR EXHAUST TEMP (P100J BW)
-
107517322 SCREWSCREW
-
111261384-029 MANIFOLD (BLACK)MANIFOLD (BLACK)
-
125812436 GASKET EXHAUSTGASKET EXHAUST
-
137621467 RIVET, BLINDRIVET, BLIND
-
147661136 RVTRVT
-
155248422 DEFLECTOR EXHAUSTDEFLECTOR EXHAUST
-
167555792 WASHERWASHER
-
175412736 BOOT OUTLET, RESONATORBOOT OUTLET, RESONATOR
-
185412425 GROMMET RESONATOR, SUPPORTGROMMET RESONATOR, SUPPORT
-
195249476-029 BRACKET CHASSIS RESONATOR (BLACK)BRACKET CHASSIS RESONATOR (BLACK)
-
207542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
213021733 MOUNT RUBBER, ISOLATORMOUNT RUBBER, ISOLATOR
-
227512208 SCREWSCREW
-
237558301 WASHER, FLATWASHER, FLAT
-
245248371-029 SHIELD RESONATOR INLET (BLACK)SHIELD RESONATOR INLET (BLACK)
-
251261484 ASSY RESONATORASSY RESONATOR
-
255248955 COVER RESONATOR (LEFT)COVER RESONATOR (LEFT)
-
255249238 COVER RESONATOR (RIGHT)COVER RESONATOR (RIGHT)
-
255248371-029 SHIELD RESONATOR INLET (BLACK)SHIELD RESONATOR INLET (BLACK)
-
255812787 MATTE RESONATOR (LEFT)MATTE RESONATOR (LEFT)
-
255812846 MATTE RESONATOR (RIGHT)MATTE RESONATOR (RIGHT)
-
255812667 MATTE RESONATOR INLETMATTE RESONATOR INLET
-
257512102 SCREWSCREW
-
257512208 SCREWSCREW
-
257558301 WASHER, FLATWASHER, FLAT
-
263610114 SEAL EXHAUSTSEAL EXHAUST
