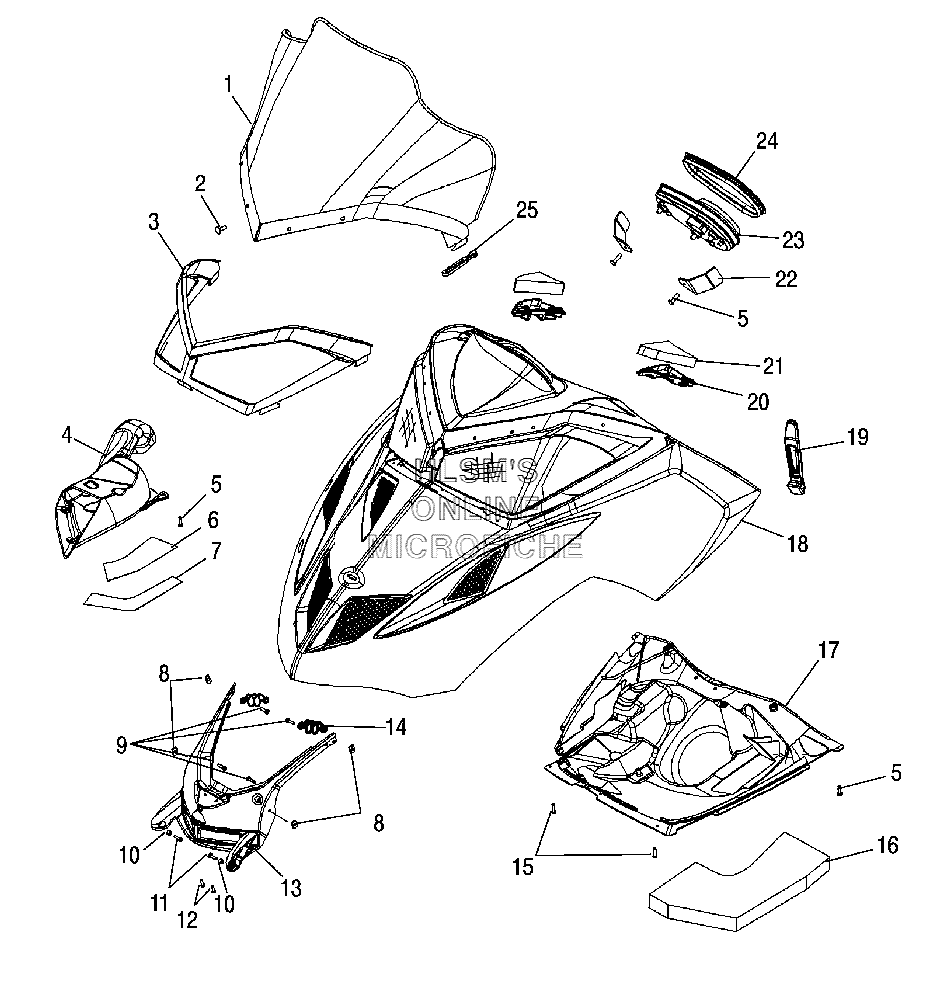

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 600 HO Fusion (S06MP6FS) - 2006 года выпуска
-
№АртикулНазвание
-
15436141 WINDSHIELD-LOW (SMOKE)WINDSHIELD-LOW (SMOKE)
-
15436200 WINDSHIELD (SMOKE)WINDSHIELD (SMOKE)
-
15436341 WINDSHIELD-LOW (MATTE BLACK) (DRAGON)WINDSHIELD-LOW (MATTE BLACK) (DRAGON)
-
27670067 CLIP, DARTCLIP, DART
-
35435720-177 BEZEL-HEADLIGHT (BLACK)BEZEL-HEADLIGHT (BLACK)
-
35435720-293 BEZEL-HEADLIGHT (INDY RED)BEZEL-HEADLIGHT (INDY RED)
-
42633061 BRAKE DUCTASSY. (INCL. 6, 7)BRAKE DUCTASSY. (INCL. 6, 7)
-
57518238 SCREWSCREW
-
65812896 FOIL-BRAKE DUCT #2FOIL-BRAKE DUCT #2
-
75812759 FOILFOIL
-
87547288 NUT-TABNUT-TAB
-
97518281 SCREWSCREW
-
105334429 BUSHINGBUSHING
-
117518285 SCREWSCREW
-
127517441 SCREWSCREW
-
135435120-070 HINGE-HOOD (BLACK)HINGE-HOOD (BLACK)
-
147081191 CABLE-HOODCABLE-HOOD
-
157710561 FASTENER-PUSHFASTENER-PUSH
-
165812855 FOAMFOAM
-
172633251 ASM-HEADLIGHT ACCESS COVERASM-HEADLIGHT ACCESS COVER
-
175412465 BUMPER-GROMMETBUMPER-GROMMET
-
182633241-293 ASM-HOOD, FUSION 600 (INDY RED) (INCL. FOAM AND FOIL)ASM-HOOD, FUSION 600 (INDY RED) (INCL. FOAM AND FOIL)
-
182633241-177 ASM-HOOD, FUSION 600 (BLACK) (INCL. FOAM AND FOIL)ASM-HOOD, FUSION 600 (BLACK) (INCL. FOAM AND FOIL)
-
195412606 STRAP-RETAINERSTRAP-RETAINER
-
205435779 FILTER-CARTRIDGE (LEFT)FILTER-CARTRIDGE (LEFT)
-
205435780 FILTER-CARTRIDGE (RIGHT)FILTER-CARTRIDGE (RIGHT)
-
215812689 FILTER-FOAMFILTER-FOAM
-
225240015 BRKT-GAUGE RETAINERBRKT-GAUGE RETAINER
-
232410564 GAUGE ASSY., CARBGAUGE ASSY., CARB
-
234011149 BATTERY-CLOCK 3VBATTERY-CLOCK 3V
-
245412360 BAND-MOUNTING, GAUGEBAND-MOUNTING, GAUGE
-
255410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
