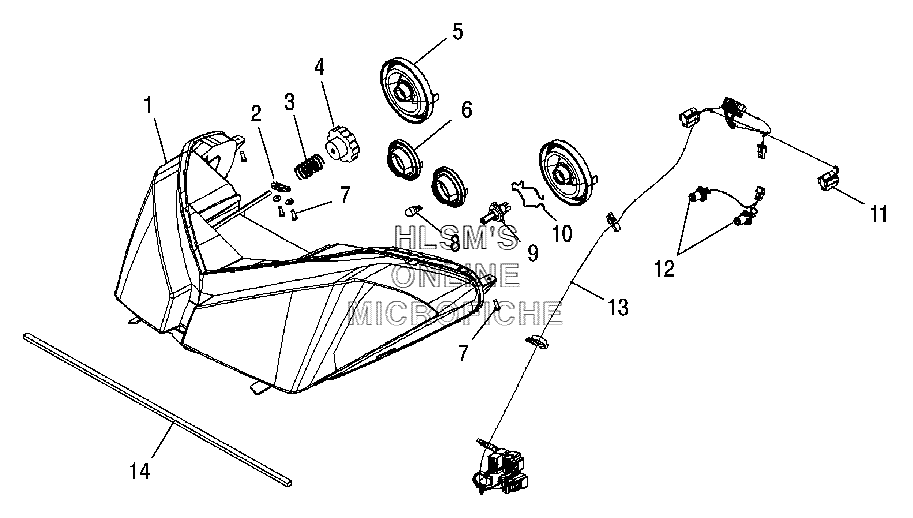

HEADLIGHT ASSEMBLY для Polaris 600 HO Fusion (S06MP6FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    2410377 HEADLIGHT ASSY.
    HEADLIGHT ASSY.
  • 2
    5248390 RETAINER-HEADLIGHT ADJ.
    RETAINER-HEADLIGHT ADJ.
  • 3
    7042323 SPRING-COMPRESSION
    SPRING-COMPRESSION
  • 4
    5435247 KNOB
    KNOB
  • 5
    5412478 BOOT-SMALL
    BOOT-SMALL
  • 6
    5412674 BOOT-H-4, LARGE
    BOOT-H-4, LARGE
  • 7
    7512026 SCREW
    SCREW
  • 8
    4030045 BULB
    BULB
  • 9
    2870448 BULB, QUARTZ HEADLIGHT H4 (60/55W)
    BULB, QUARTZ HEADLIGHT H4 (60/55W)
  • 10
    5247526 BAIL-WIRE, 044036
    BAIL-WIRE, 044036
  • 11
    2410448 JUMPER-HARNESS
    JUMPER-HARNESS
  • 12
    4011008 JUMPER-HARNESS
    JUMPER-HARNESS
  • 13
    2410497 HARNESS-HEADLIGHT
    HARNESS-HEADLIGHT
  • 14
    5812748 FOAM-HEADLIGHT SEAL, 39''
    FOAM-HEADLIGHT SEAL, 39''
